B1231

DTC B1231 DRIVER DOOR JAM PROTECTION LIMIT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

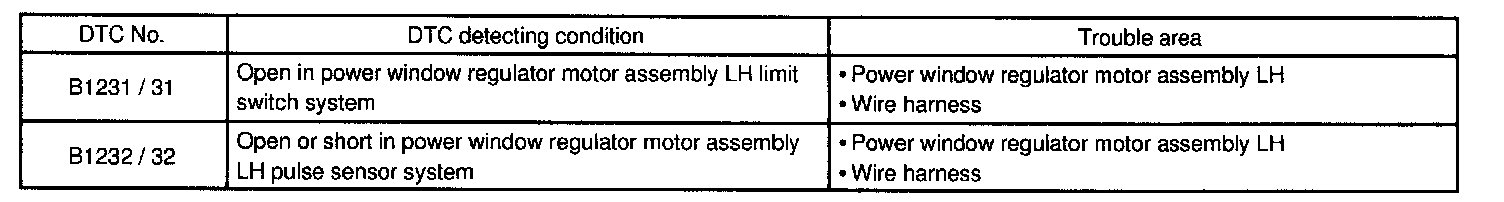

DTC Detecting Condition:

This DTC is output when the power window regulator motor assembly malfunctions.

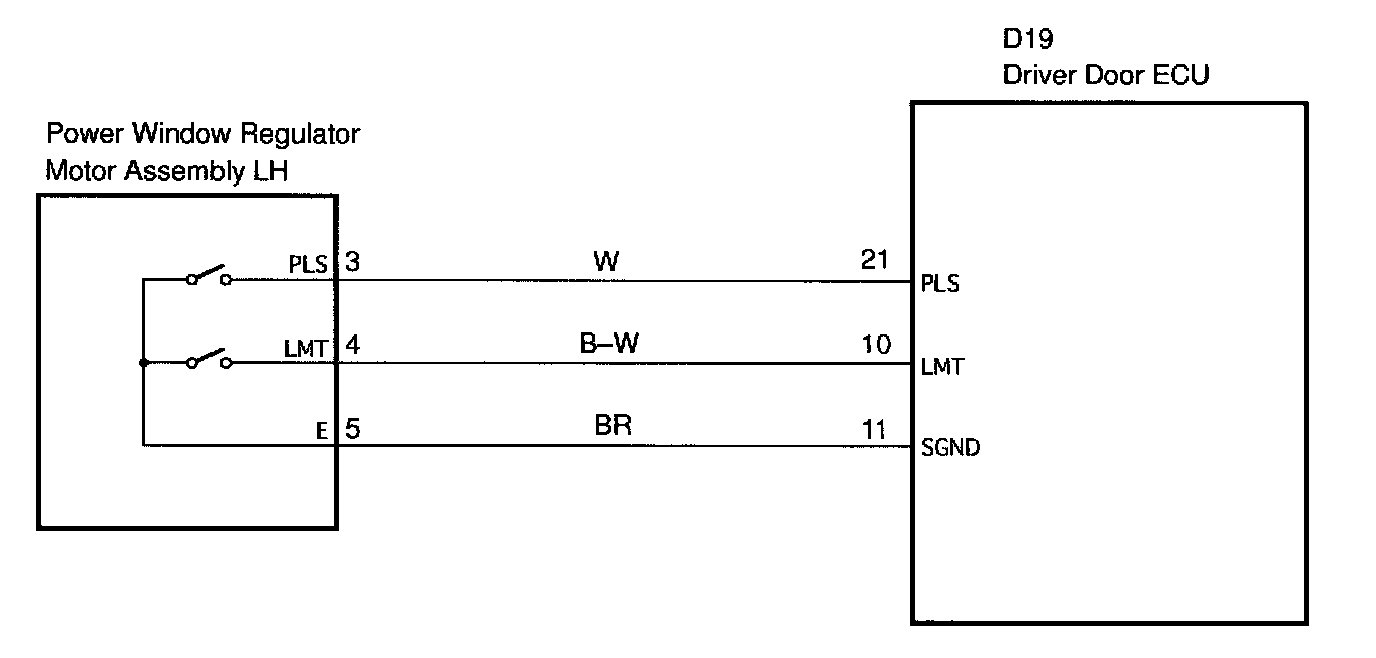

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE
