B1222

DTC B1222 DOOR LOCK SWITCH CIRCUIT ON DRIVER DOOR

CIRCUIT DESCRIPTION

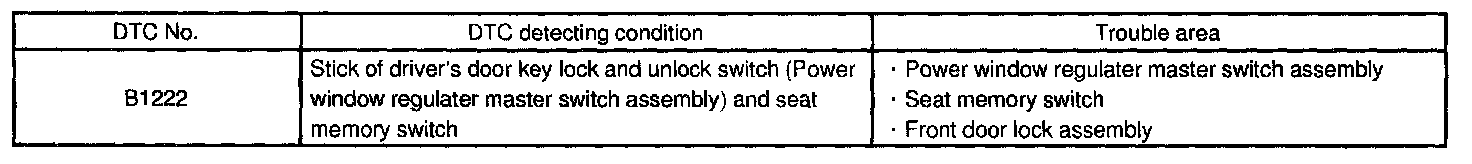

DTC Detecting Condition:

This DTC will be output when the drivers door unlock switch (for key operation) of the power window regulator master switch is on.

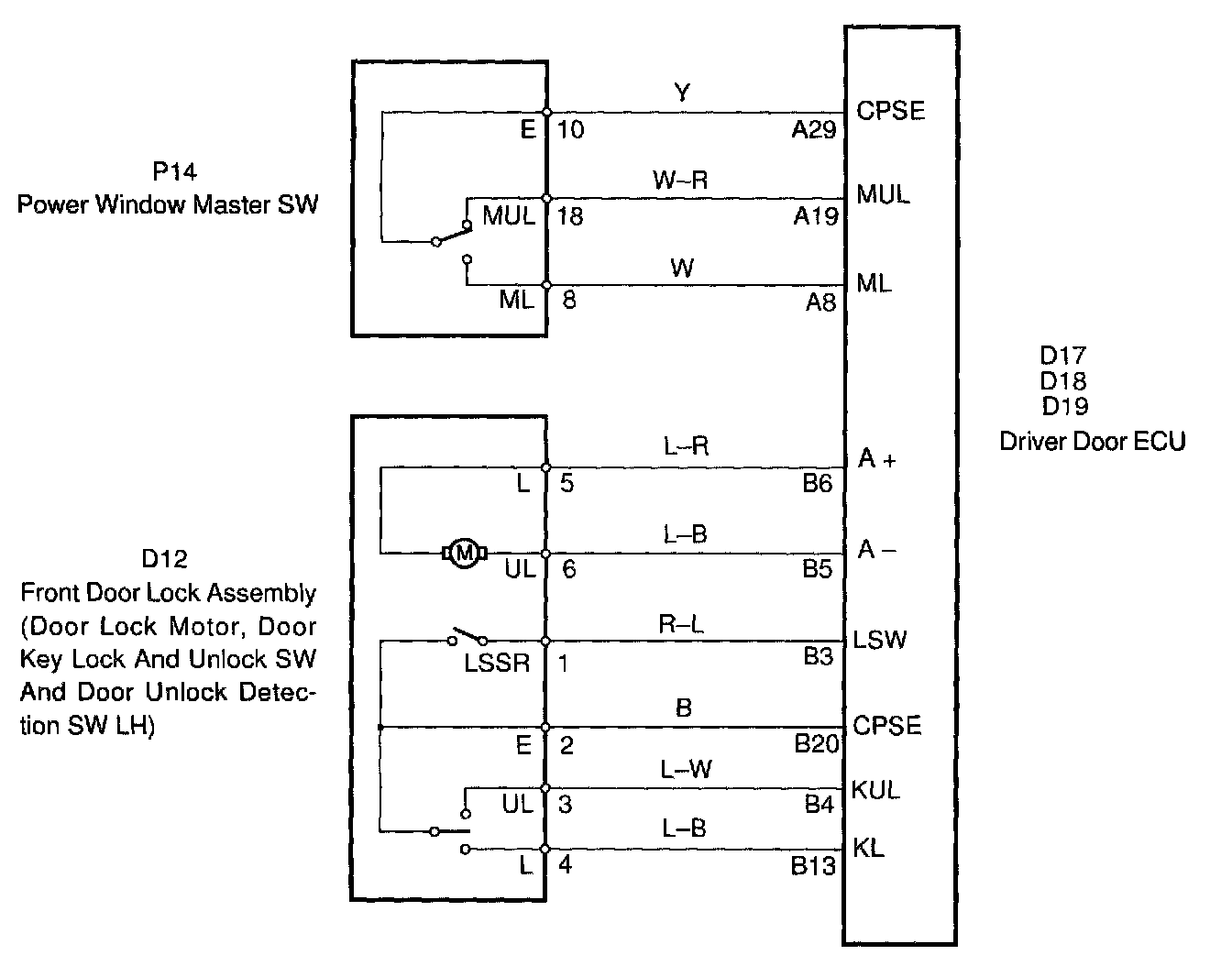

Wiring Diagram:

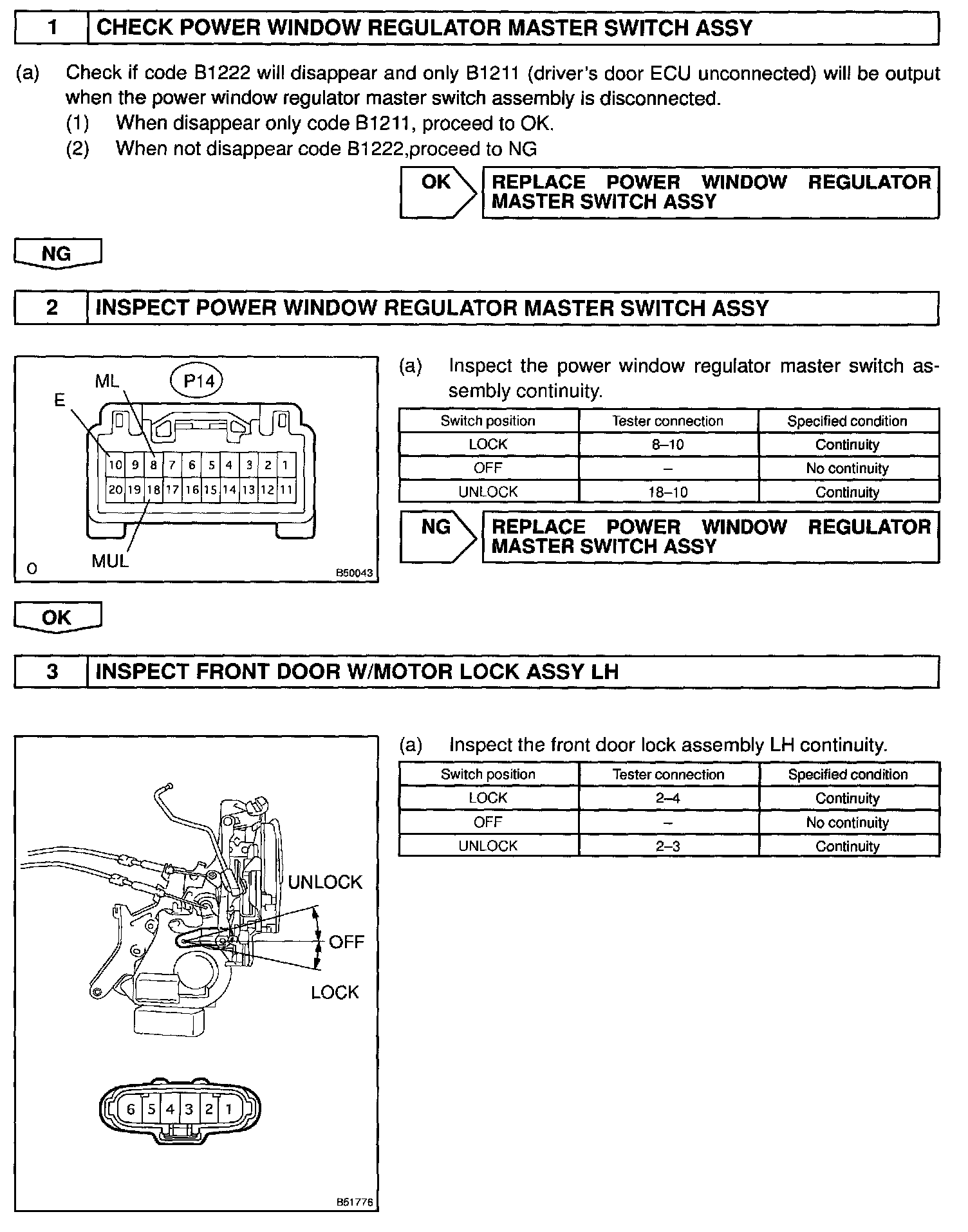

Step 1 - 3:

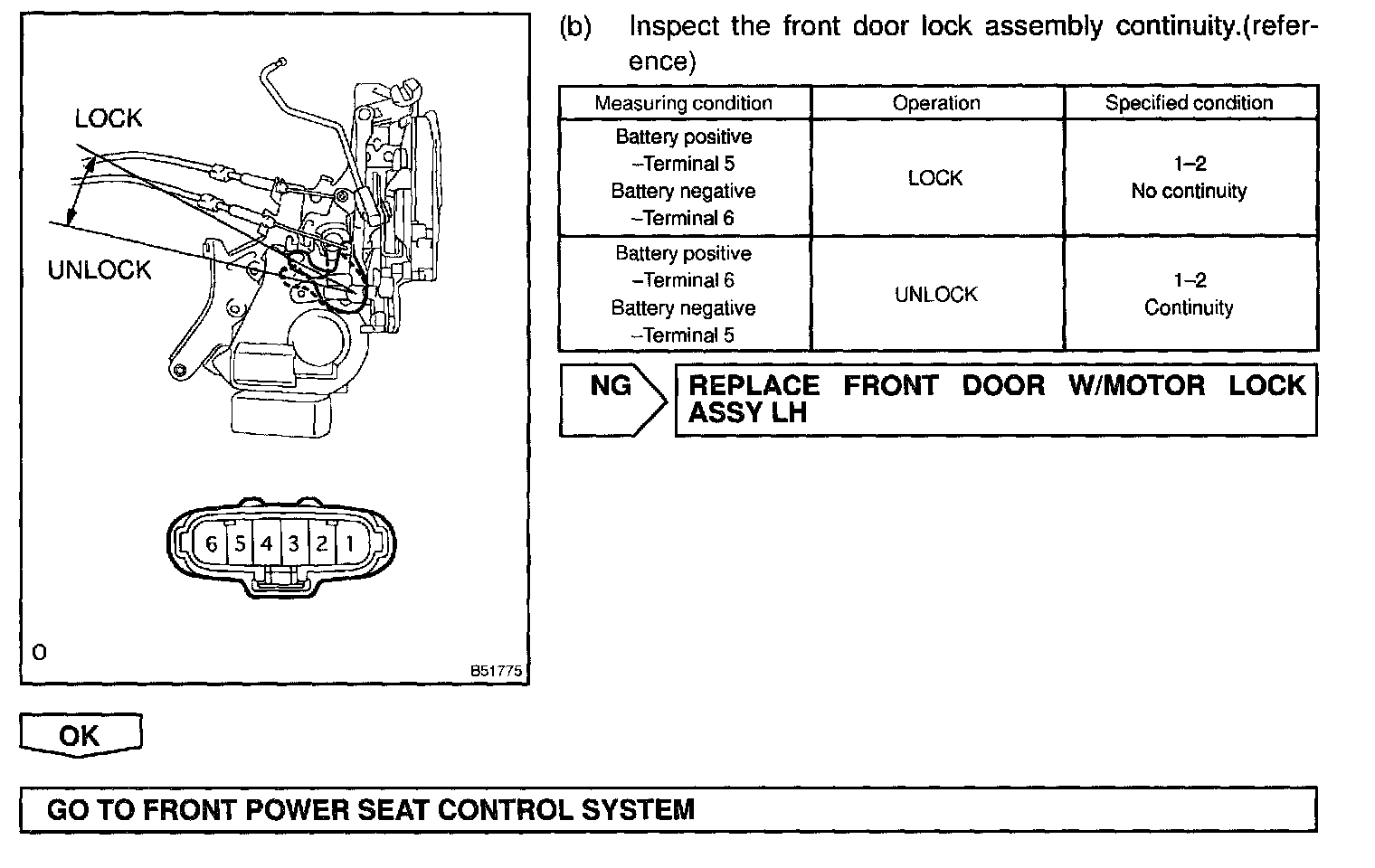

Step 3 (Continued):

INSPECTION PROCEDURE
