B1213

DTC B1213 TILT AND TELESCOPIC ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

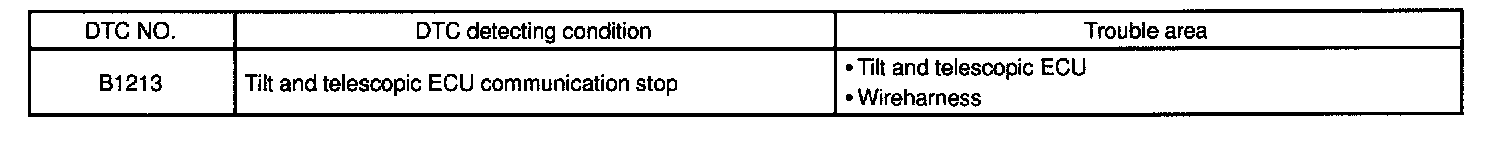

DTC Detecting Condition:

B1213 will be output when the communication between the tilt and telescopic ECU and gateway ECU stops for more than 10 seconds.

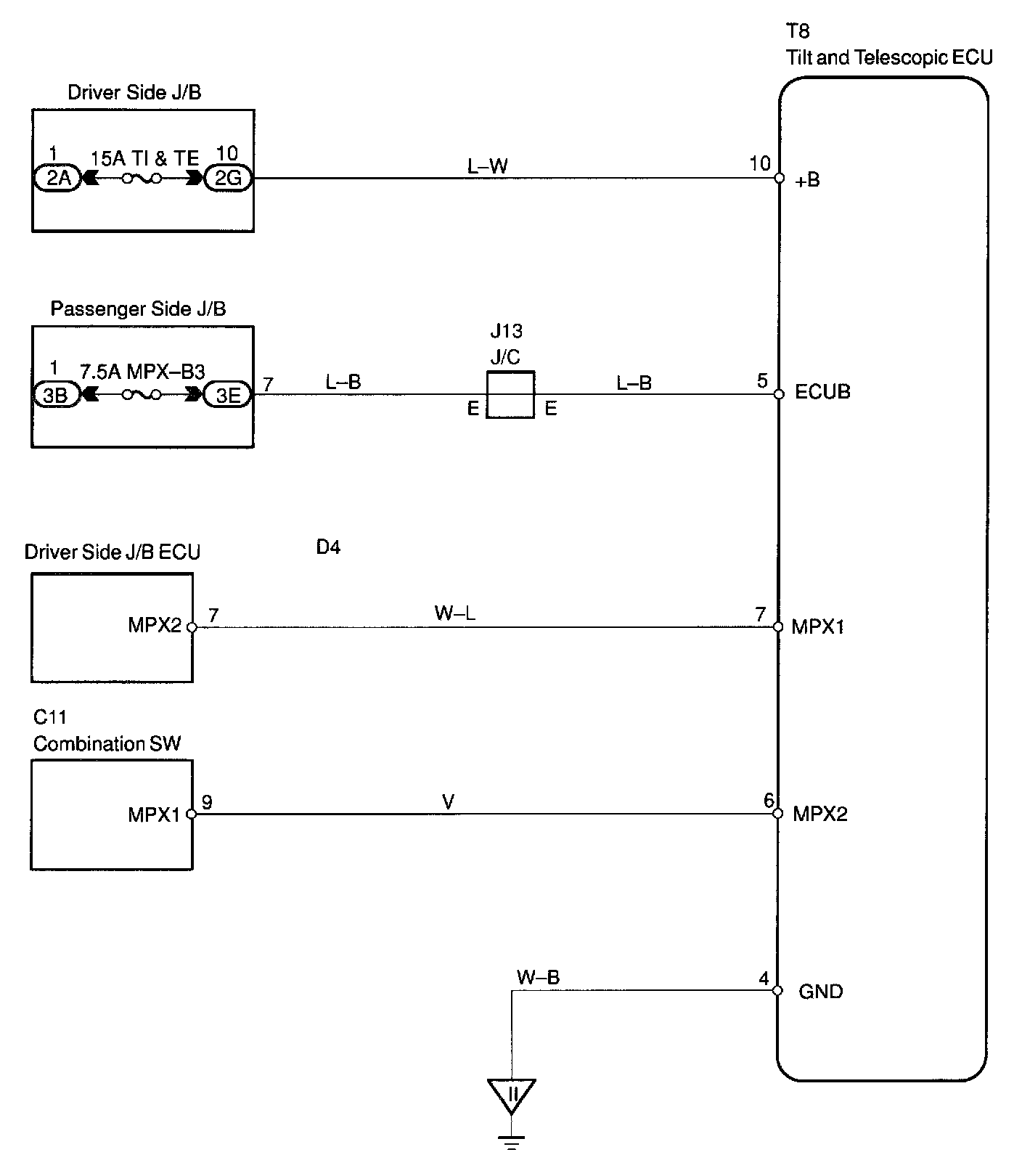

Wiring Diagram:

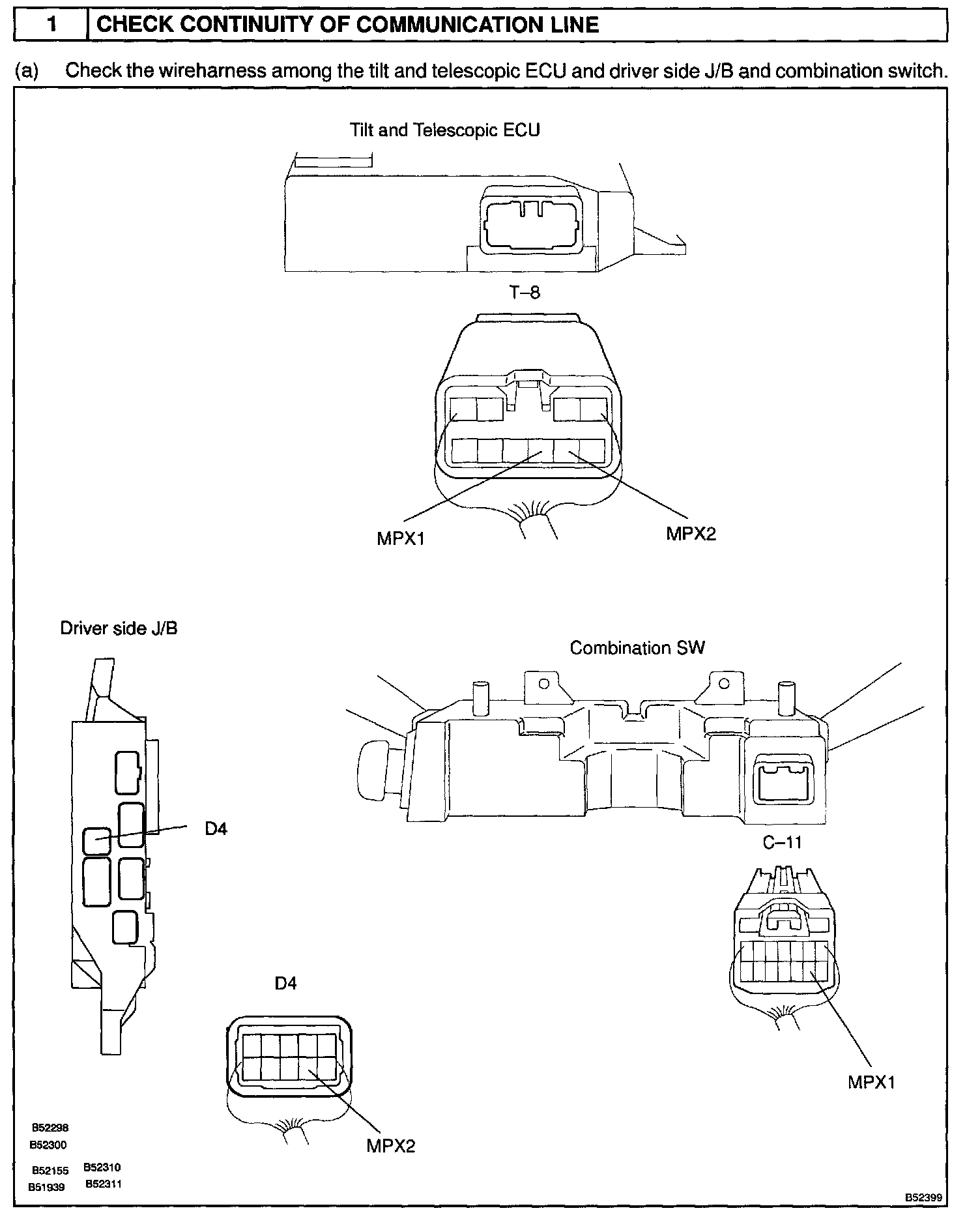

Step 1:

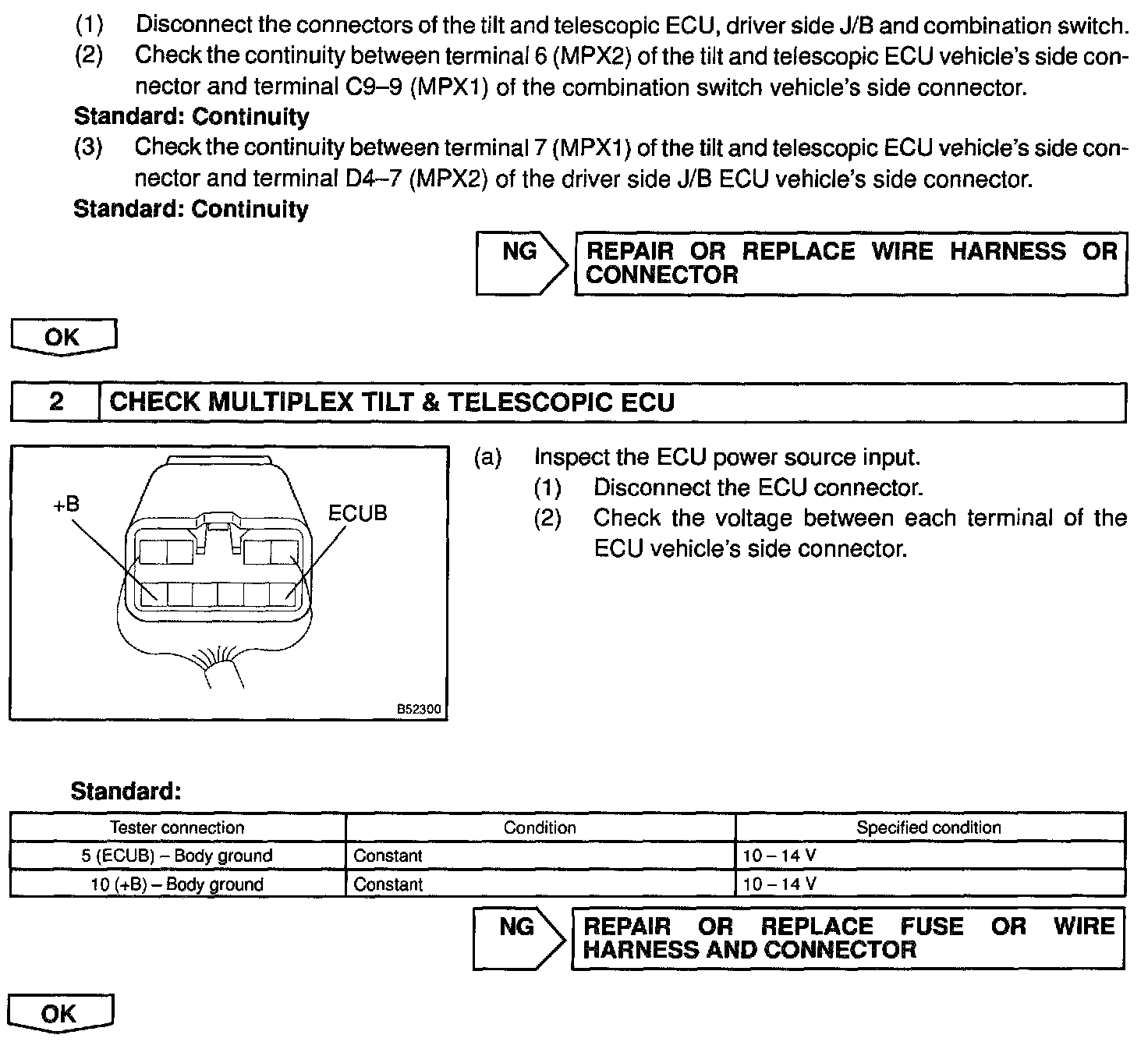

Step 1 (Continued) - 2:

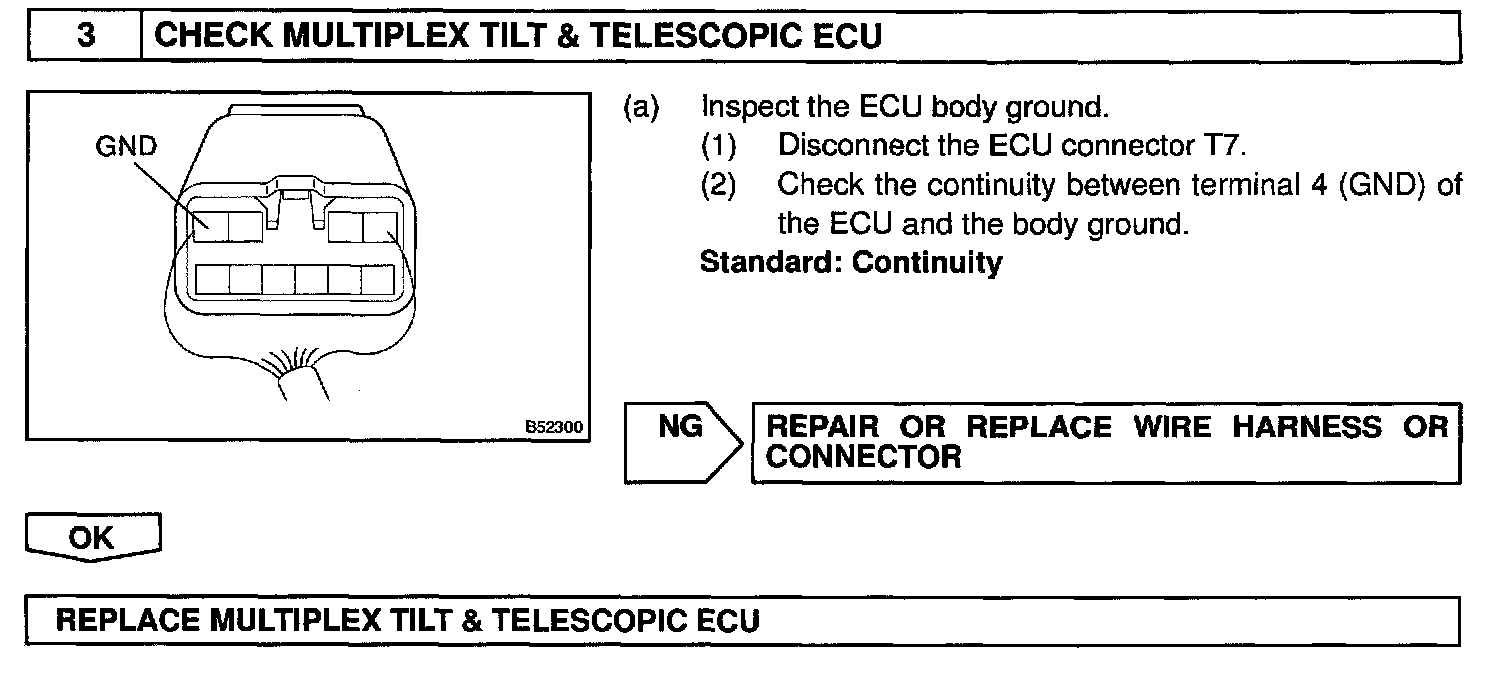

Step 3:

INSPECTION PROCEDURE
