B1186

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and instr pnl pass l/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see LOCATION.

DTC B1186/58 is recorded when an open is detected in the P squib (2nd step) circuit.

Wiring Diagram:

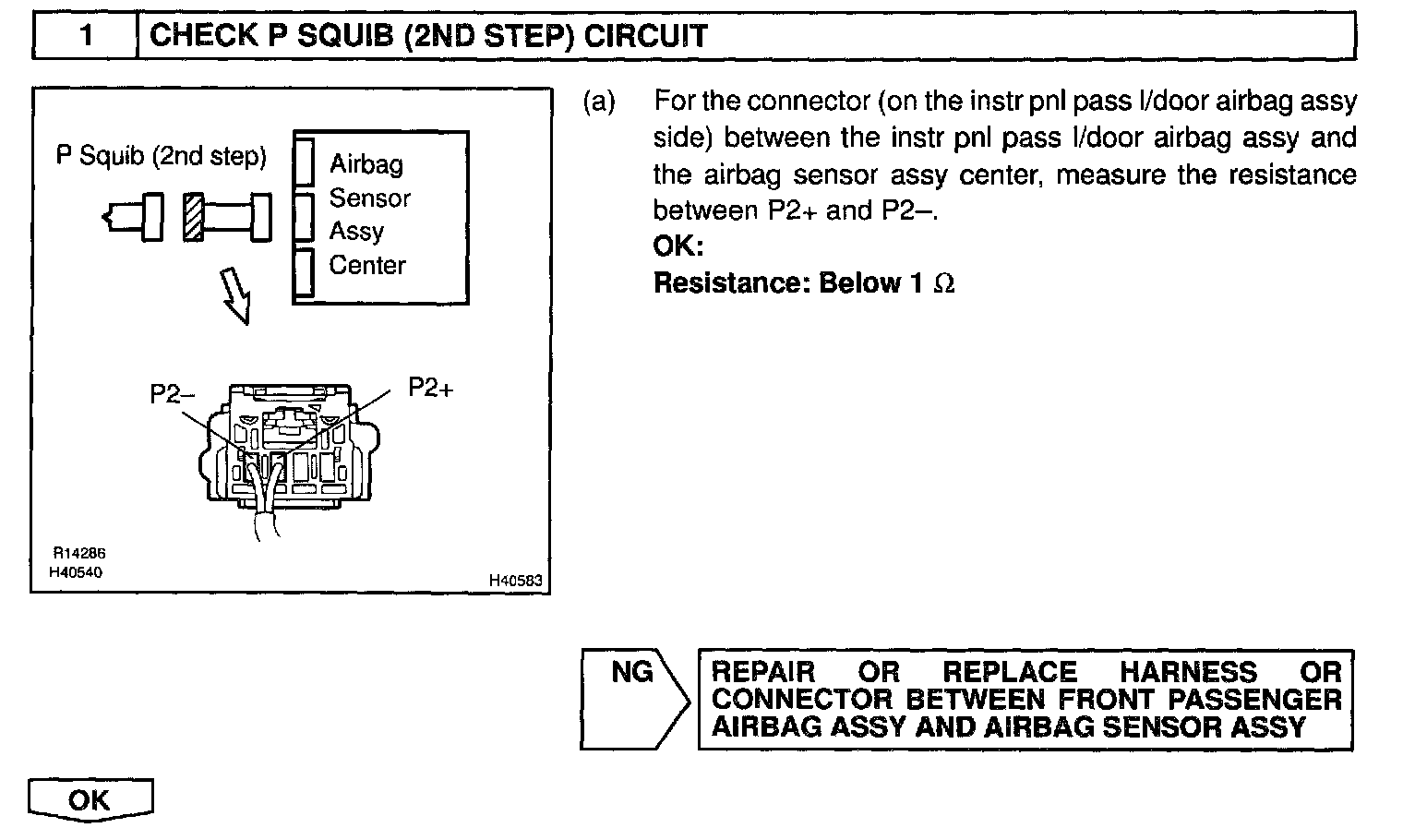

Step 1:

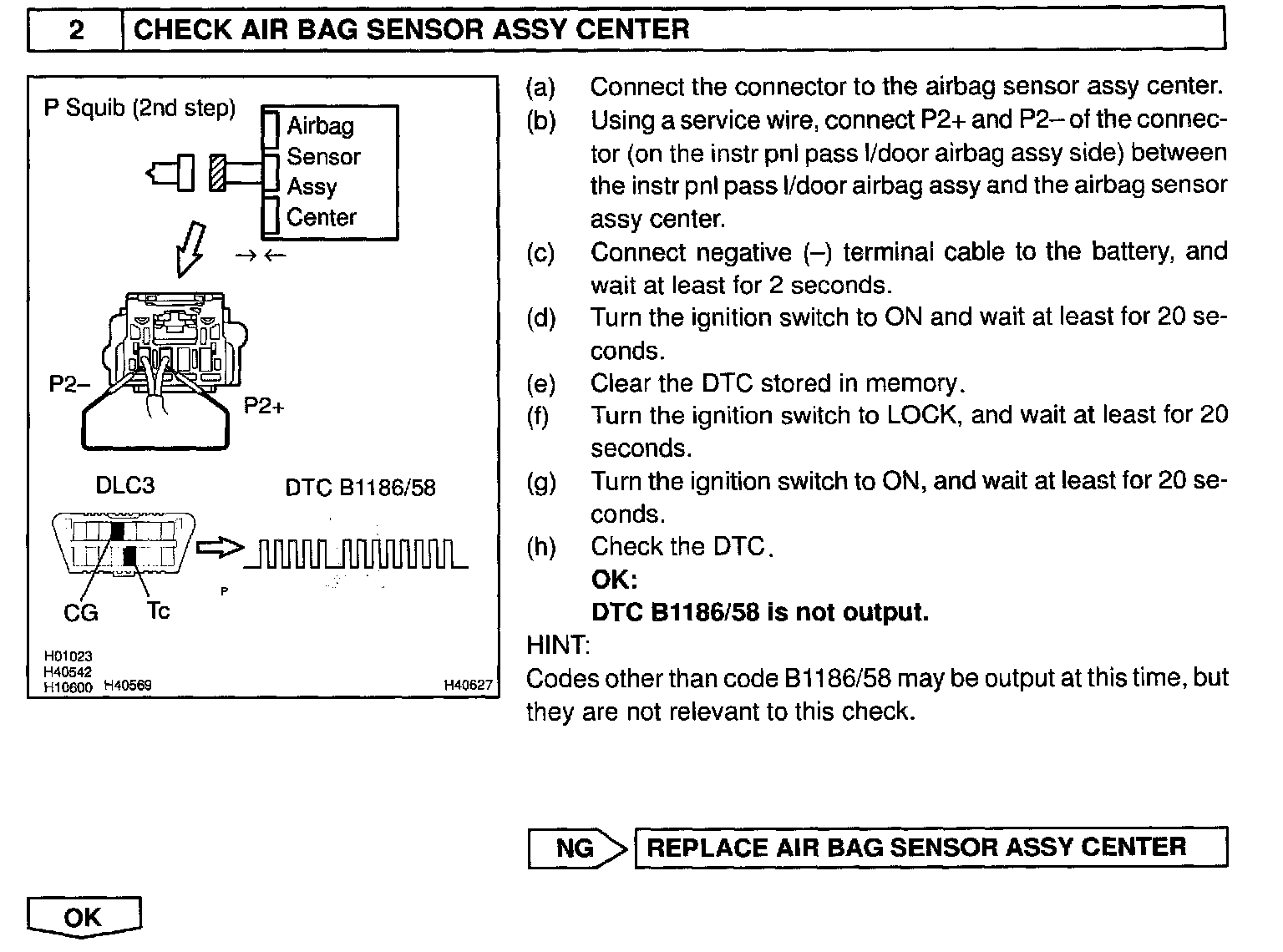

Step 2:

Step 3:

INSPECTION PROCEDURE
