B1143

CIRCUIT DESCRIPTION

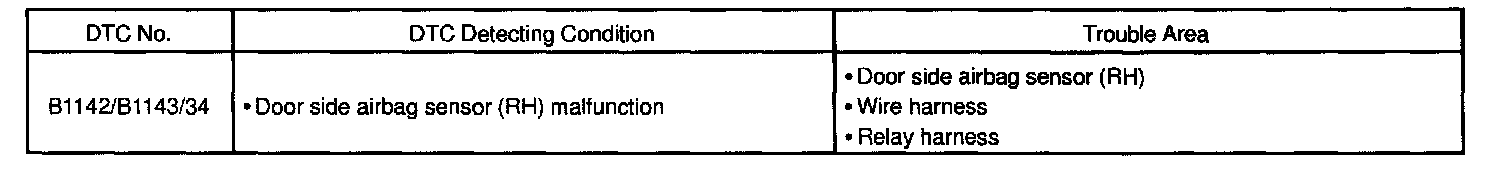

DTC Detecting Condition:

The door side airbag sensor (RH) circuit consists of the airbag sensor assy center and door side airbag sensor (RH).

For details of the function of each component, see LOCATION.

DTC B1142/B1143/34 is recorded when malfunction is detected in the door side airbag sensor (RH) circuit.

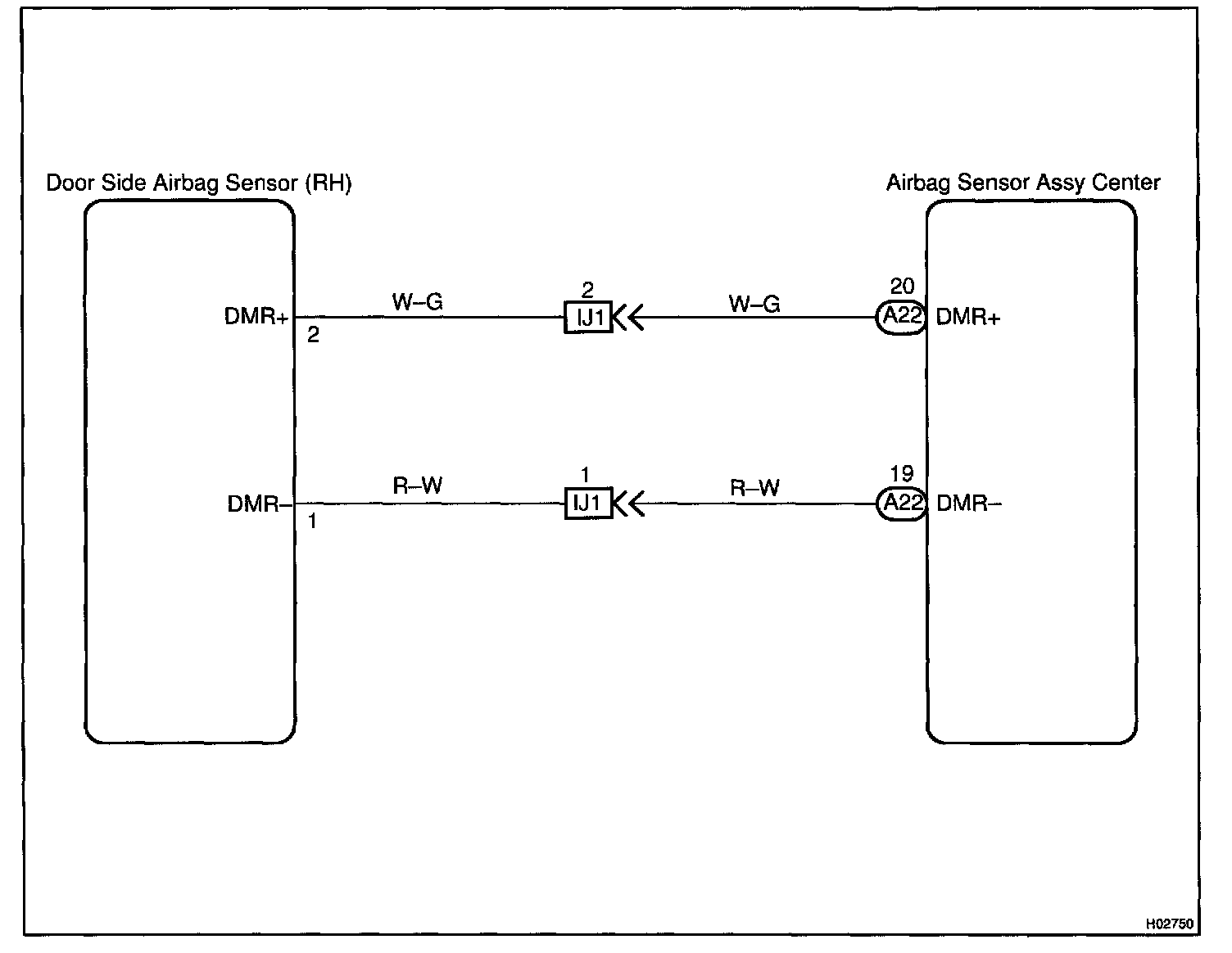

Wiring Diagram:

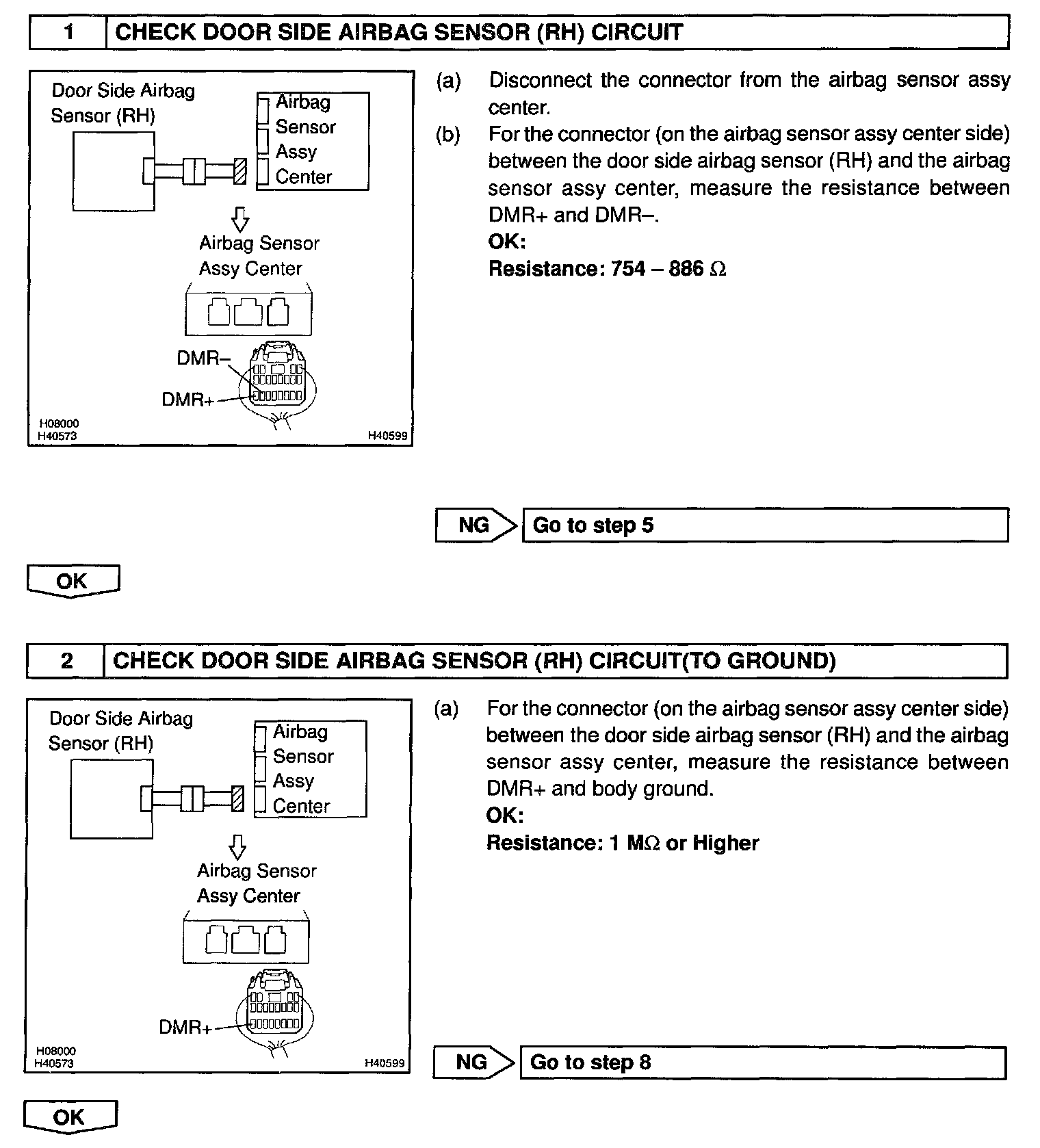

Step 1 - 2:

Step 3 - 4:

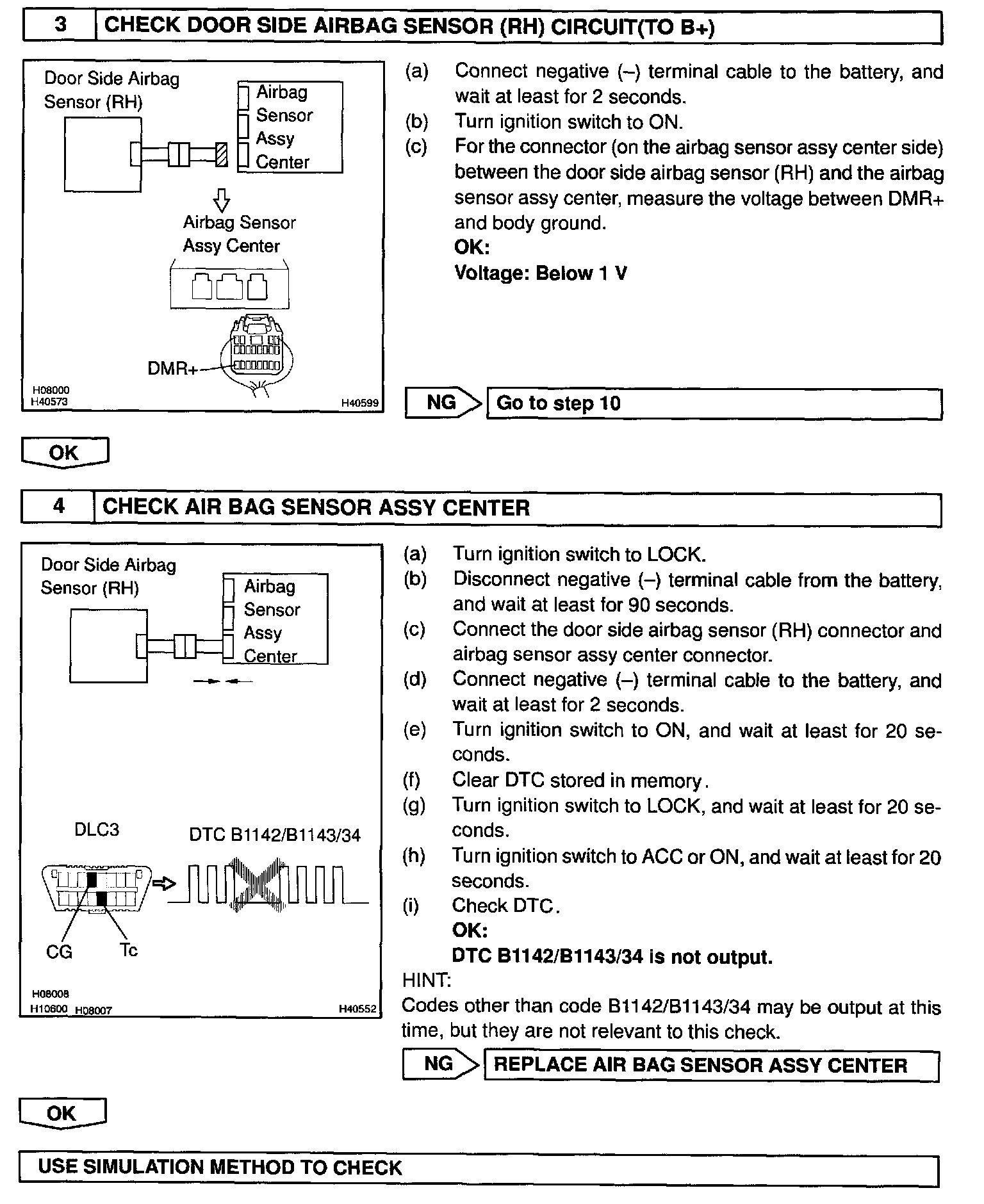

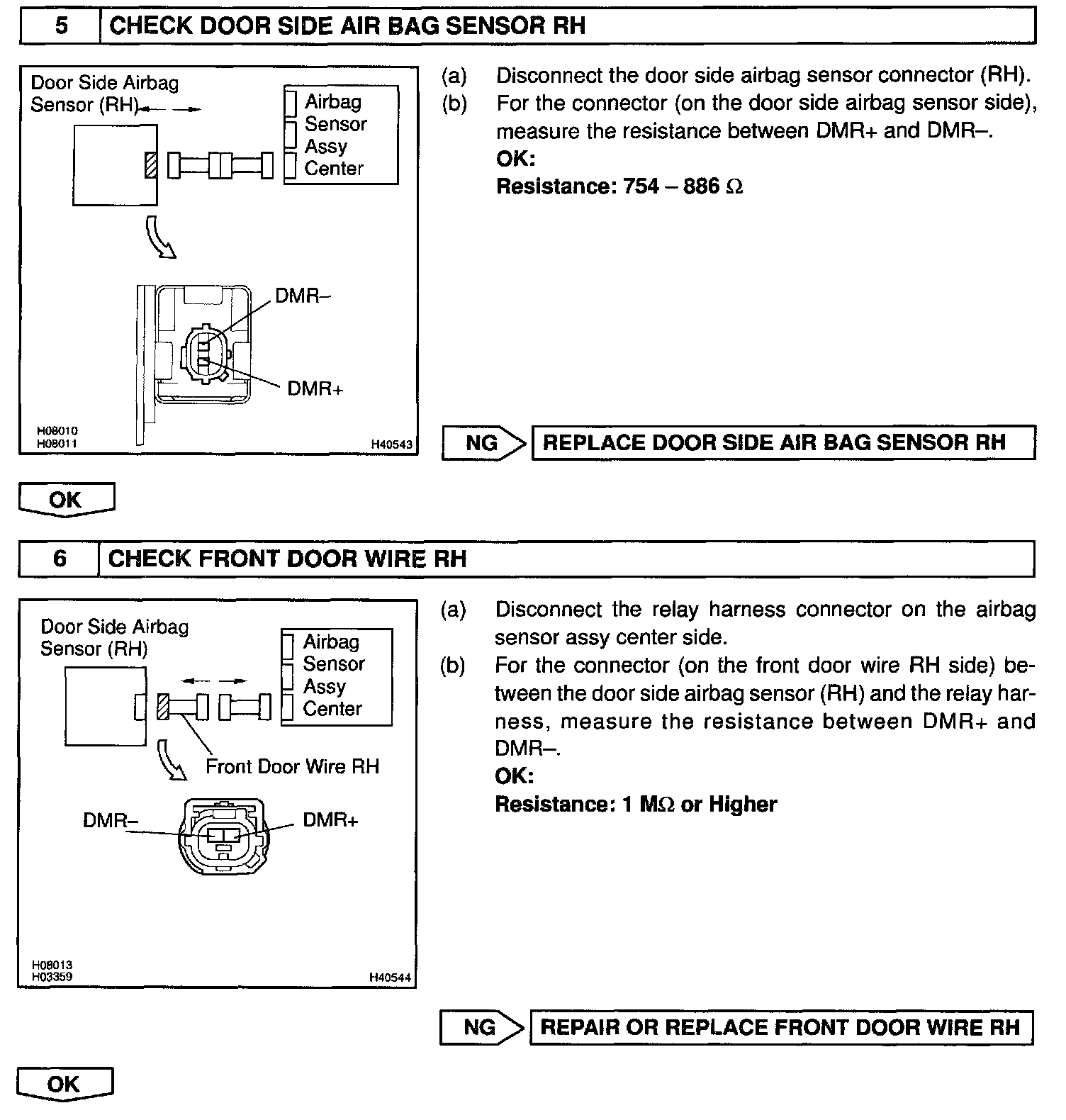

Step 5 - 6:

Step 7 - 8:

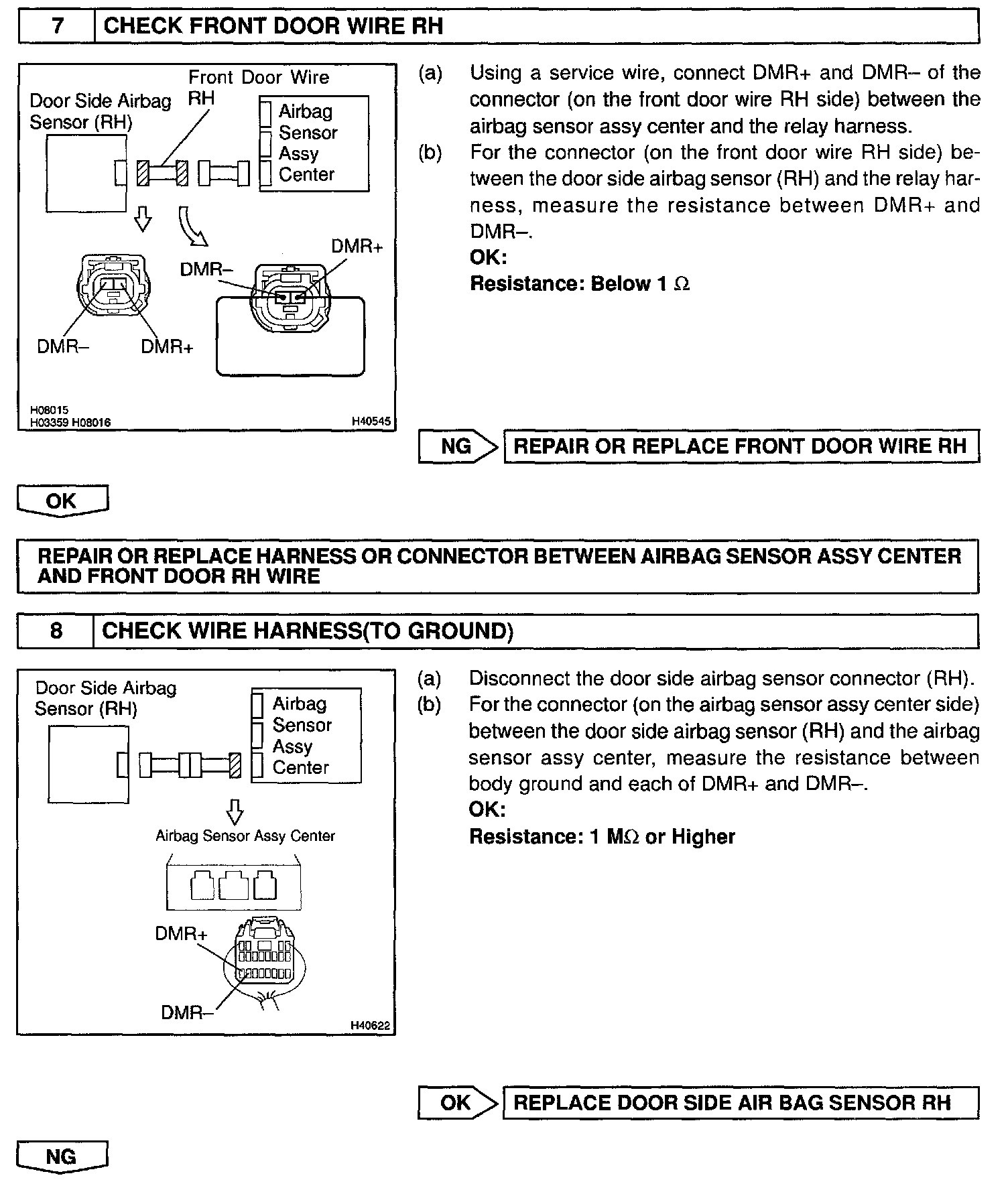

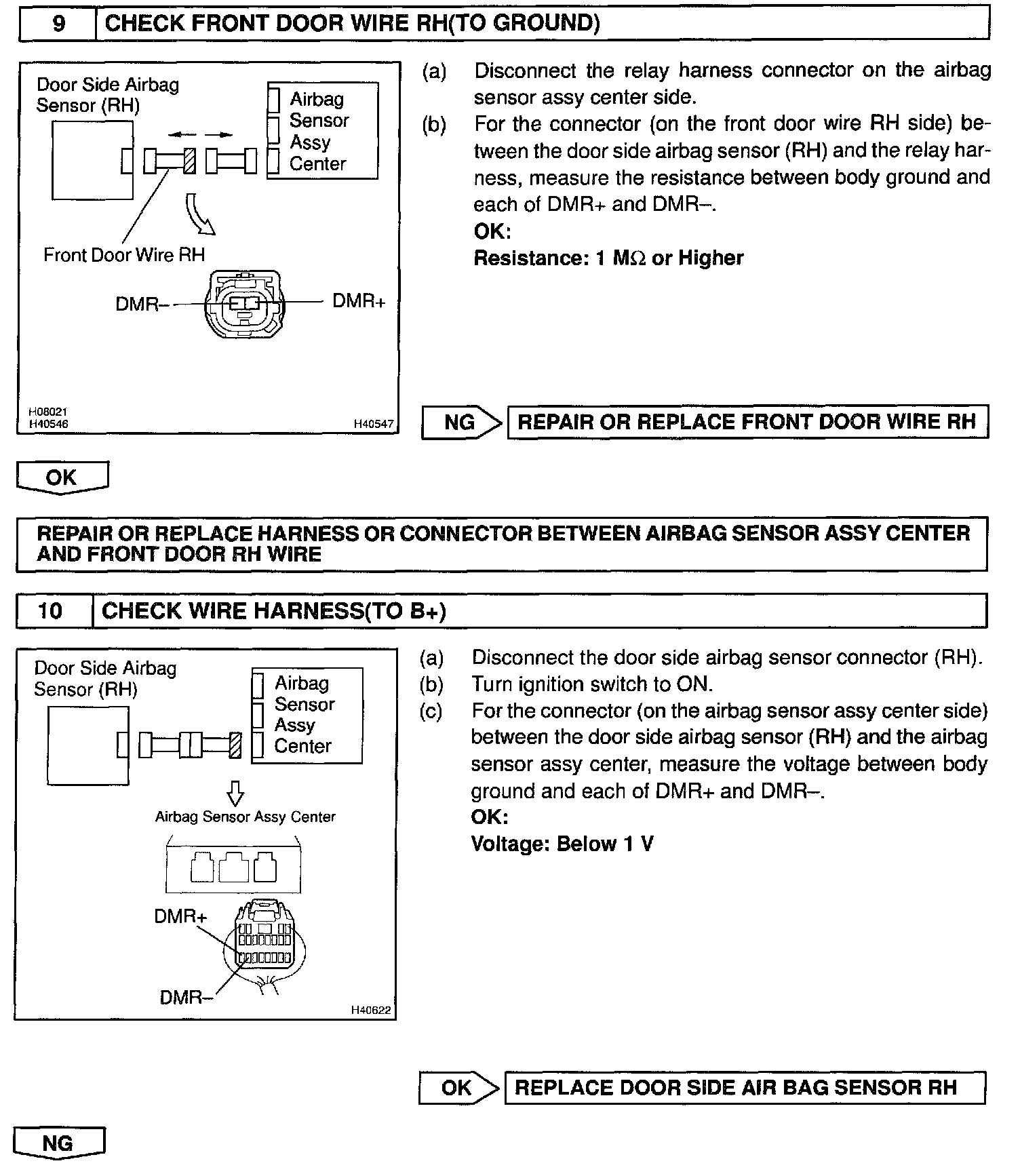

Step 9 - 10:

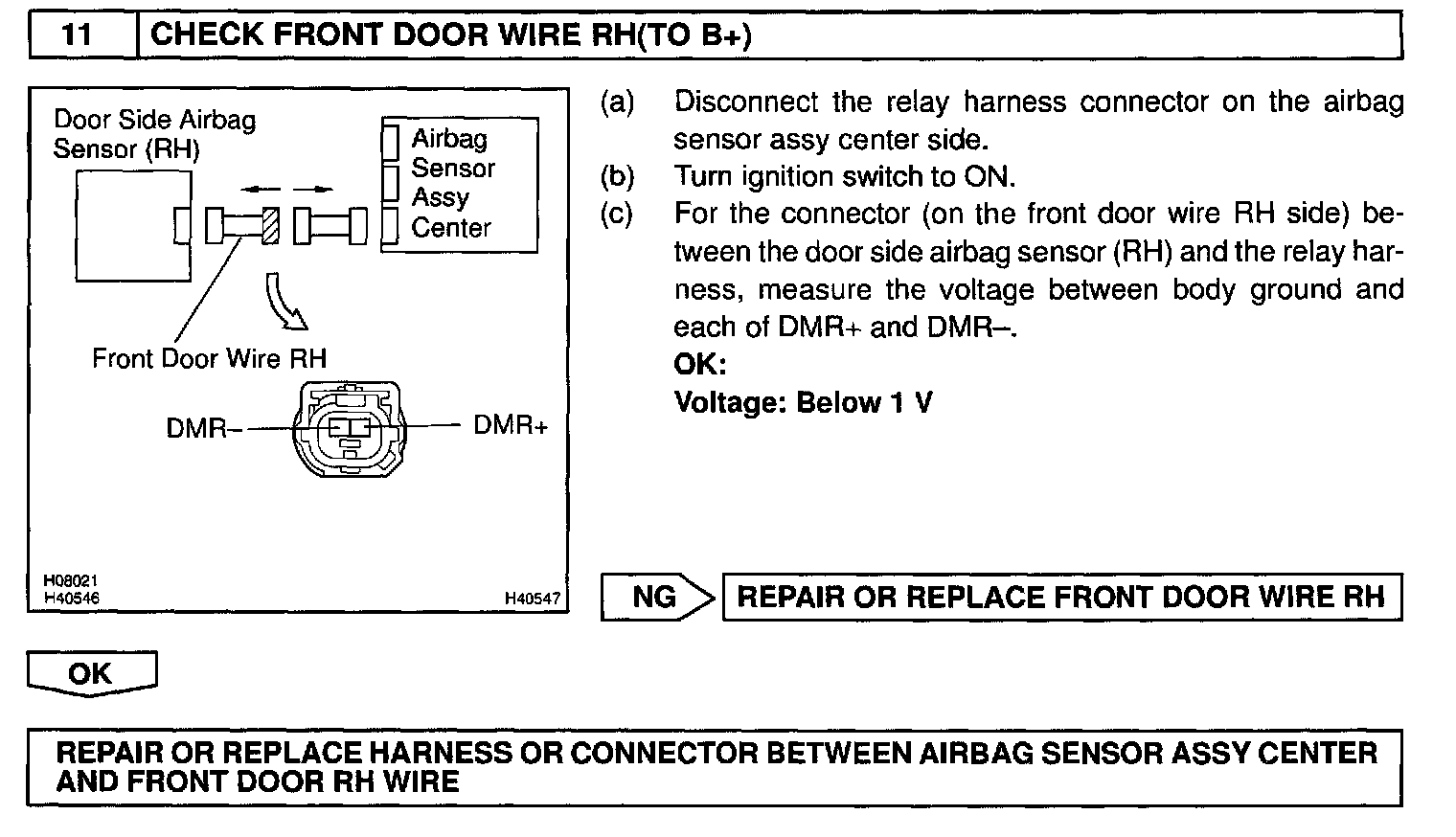

Step 11:

INSPECTION PROCEDURE
