B0101

CIRCUIT DESCRIPTION

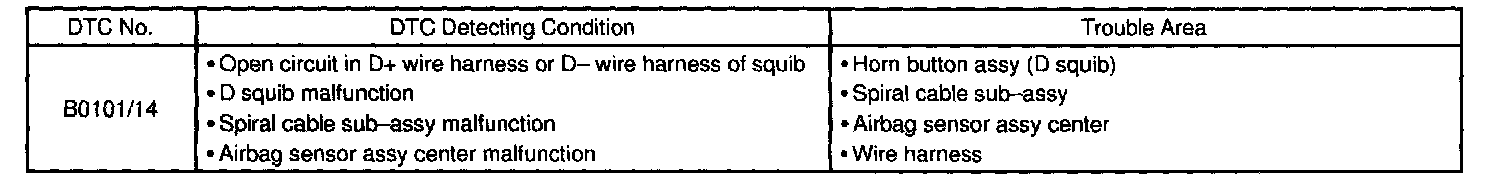

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the airbag to deploy when the airbag deployment conditions are satisfied.

For details of the function of each component, see LOCATION.

DTC B0101/14 is recorded when an open is detected in the D squib circuit.

Wiring Diagram:

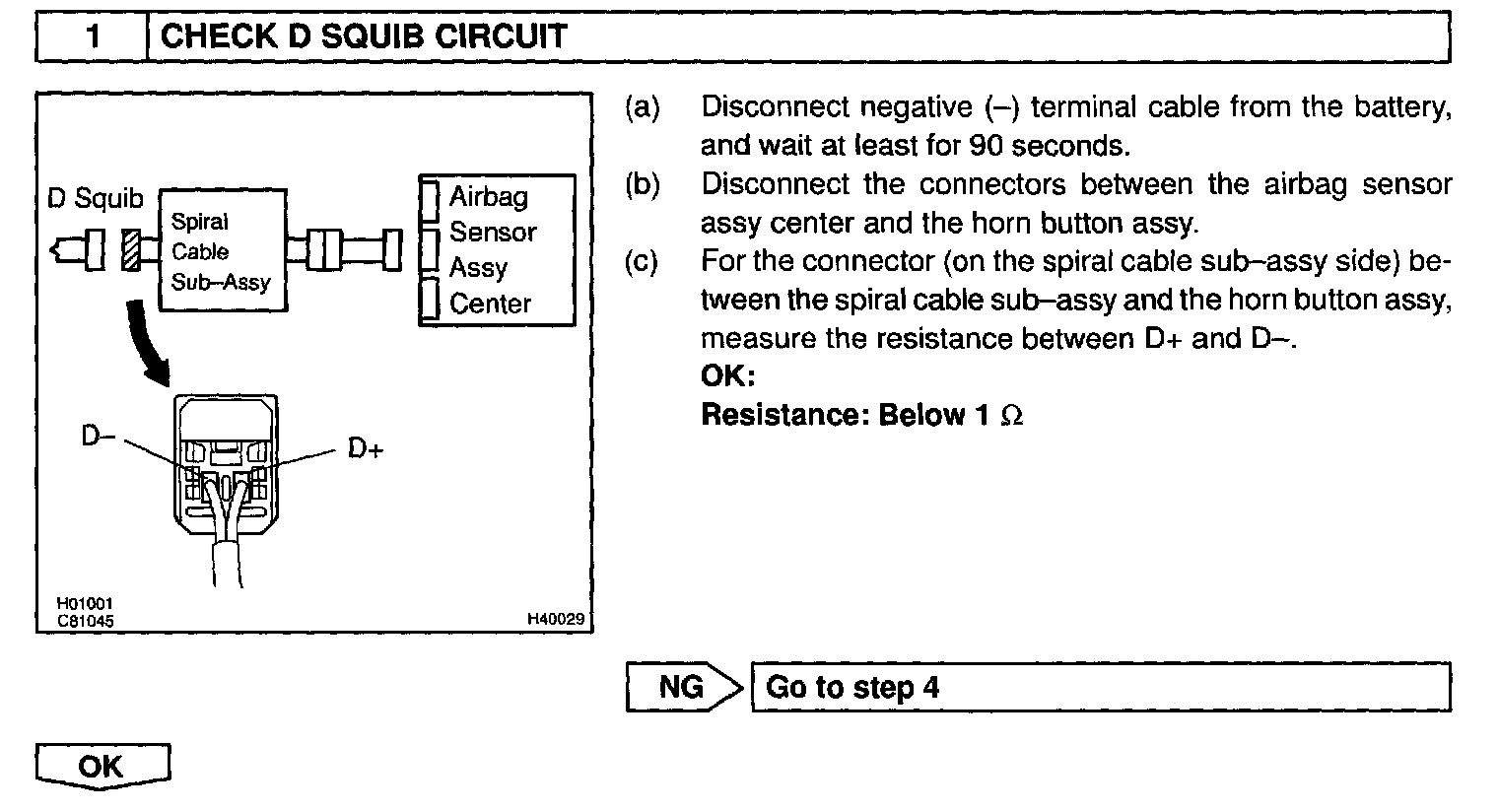

Step 1:

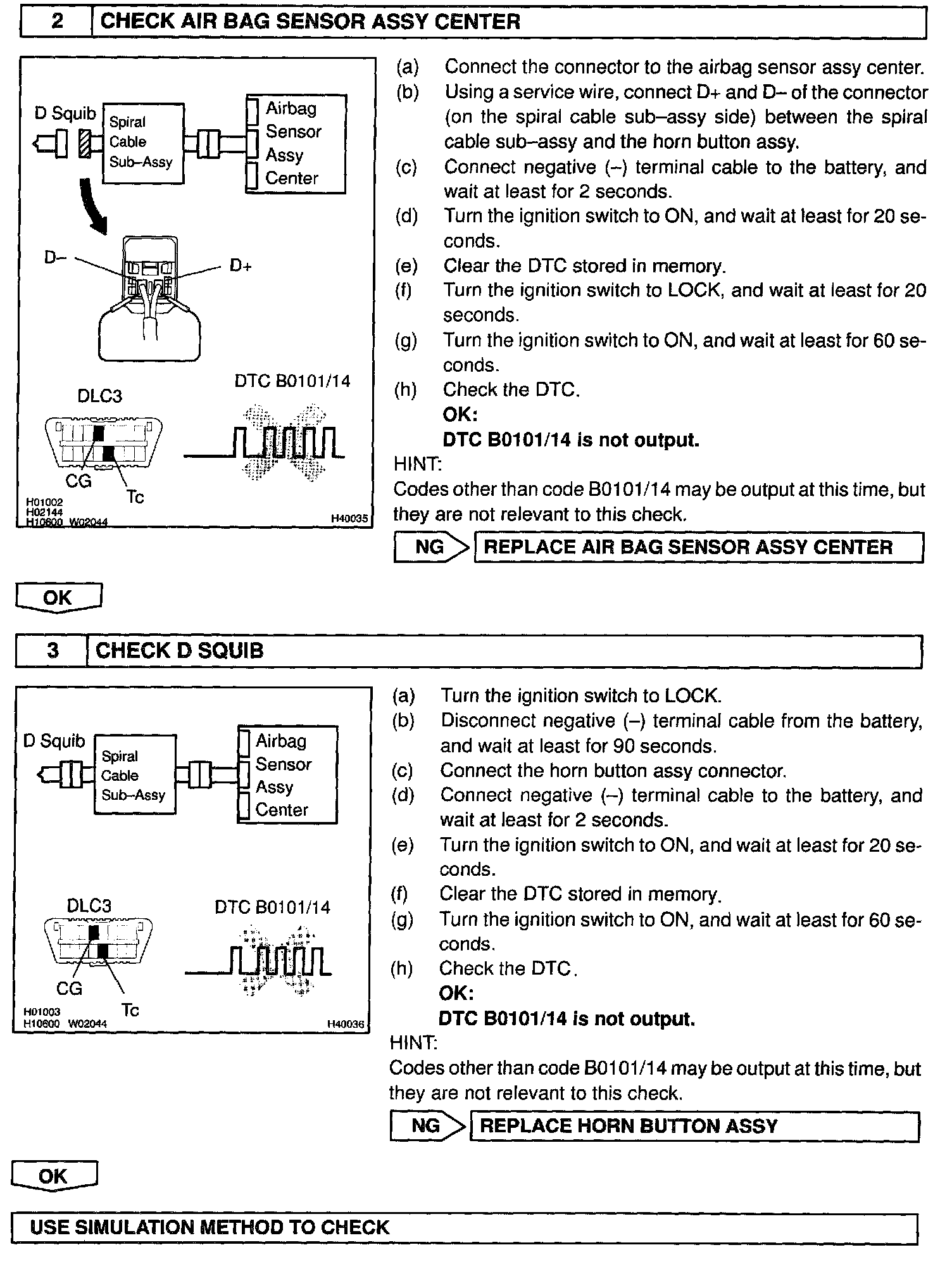

Step 2 - 3:

Step 4 - 5:

INSPECTION PROCEDURE
