B0100

CIRCUIT DESCRIPTION

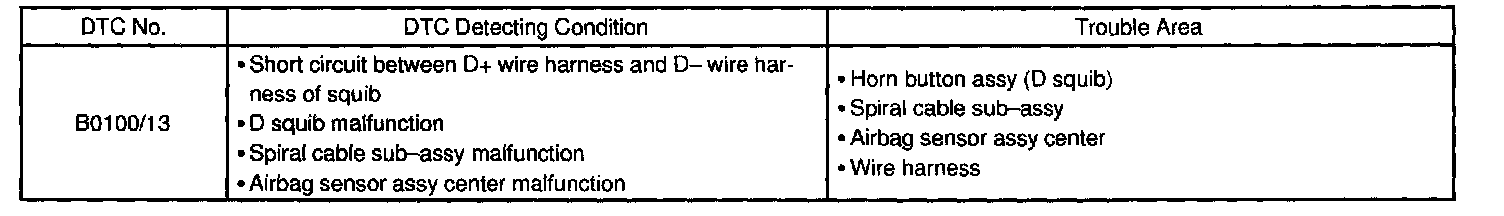

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the airbag to deploy when the airbag deployment conditions are satisfied.

For details of the function of each component, see LOCATION.

DTC B0100/13 is recorded when a short is detected in the D squib circuit.

Wiring Diagram:

Step 1 - 2:

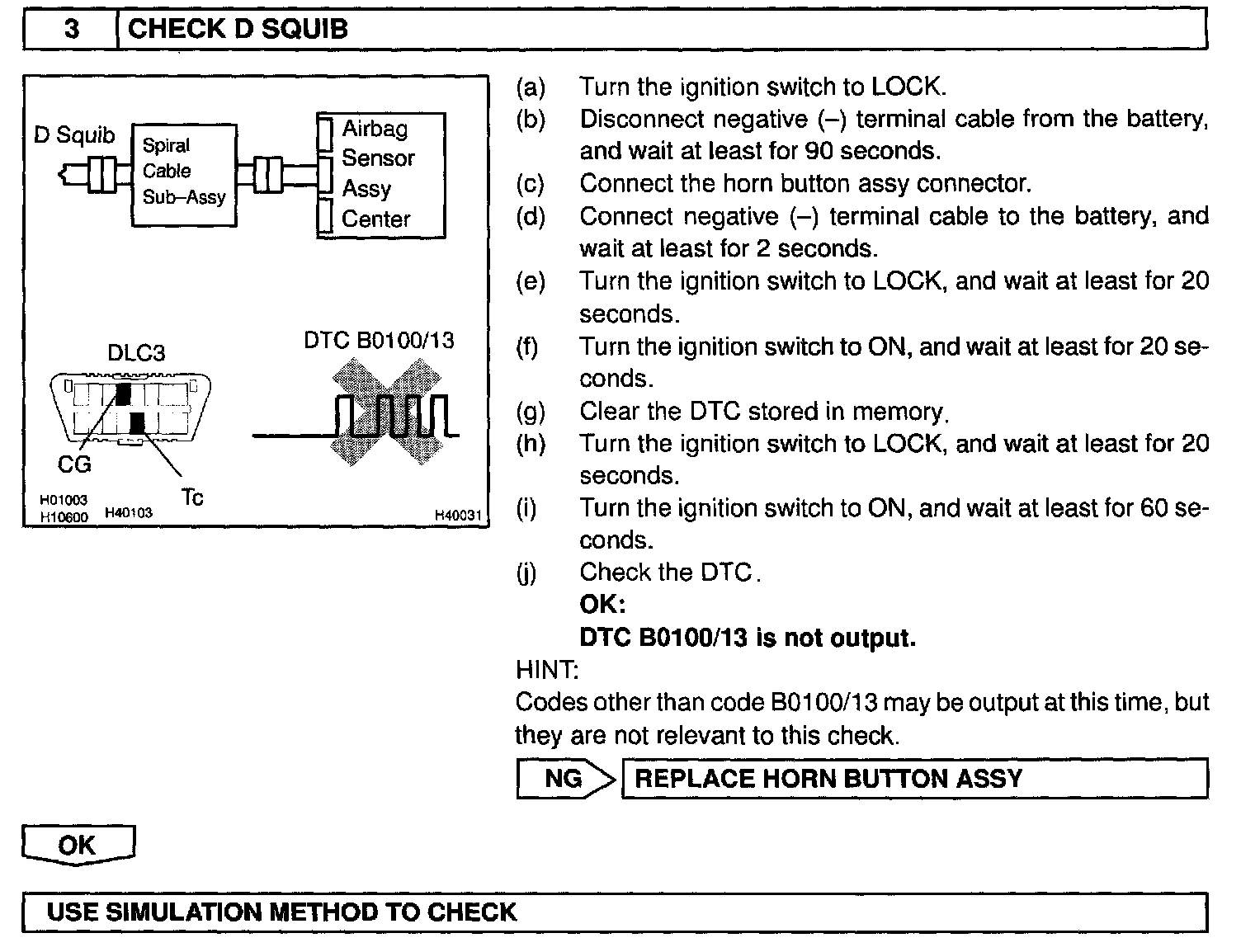

Step 3:

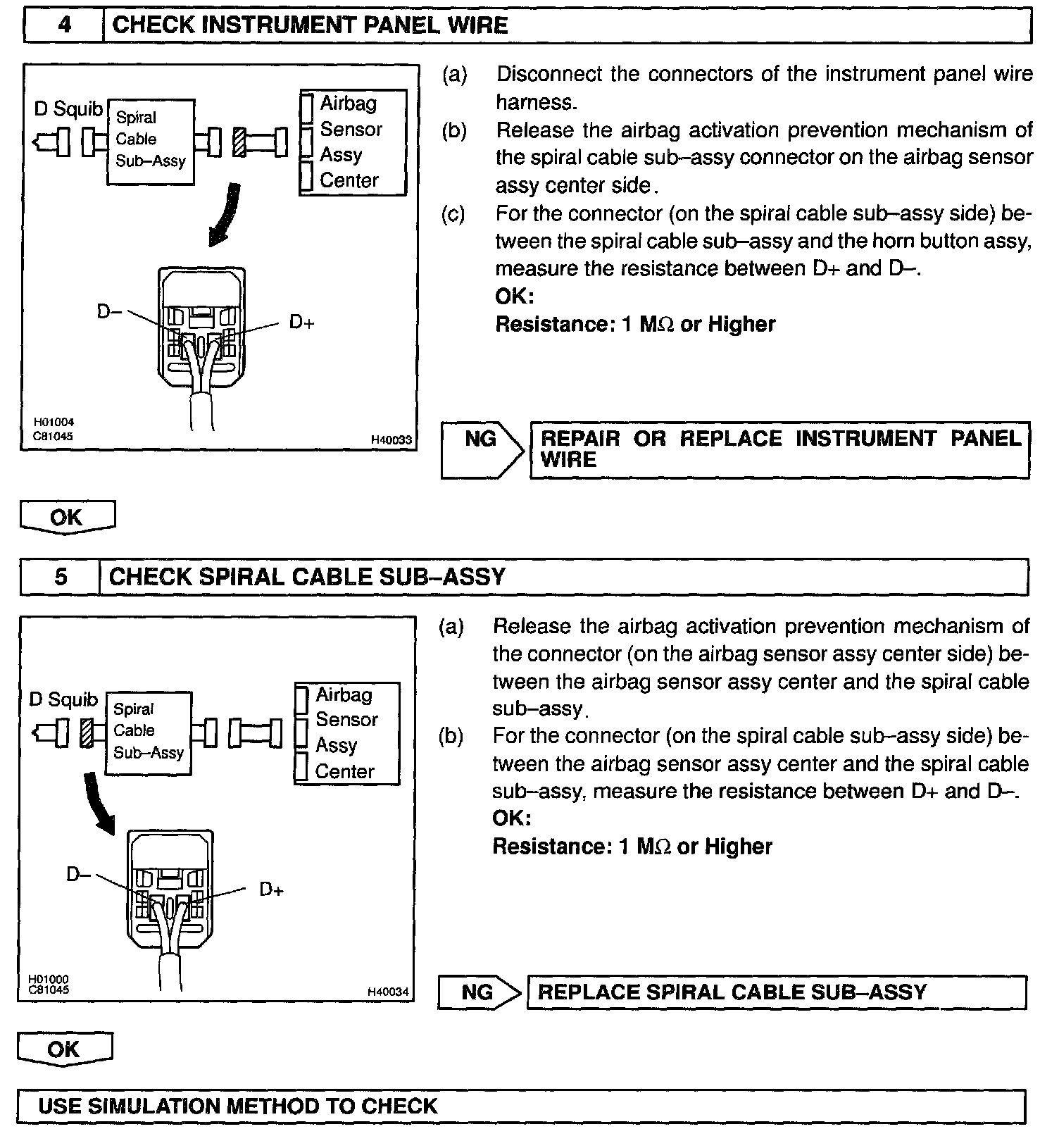

Step 4 - 5:

INSPECTION PROCEDURE
