Ignition Coil: Service and Repair

Ignition Coil:

REPLACEMENT

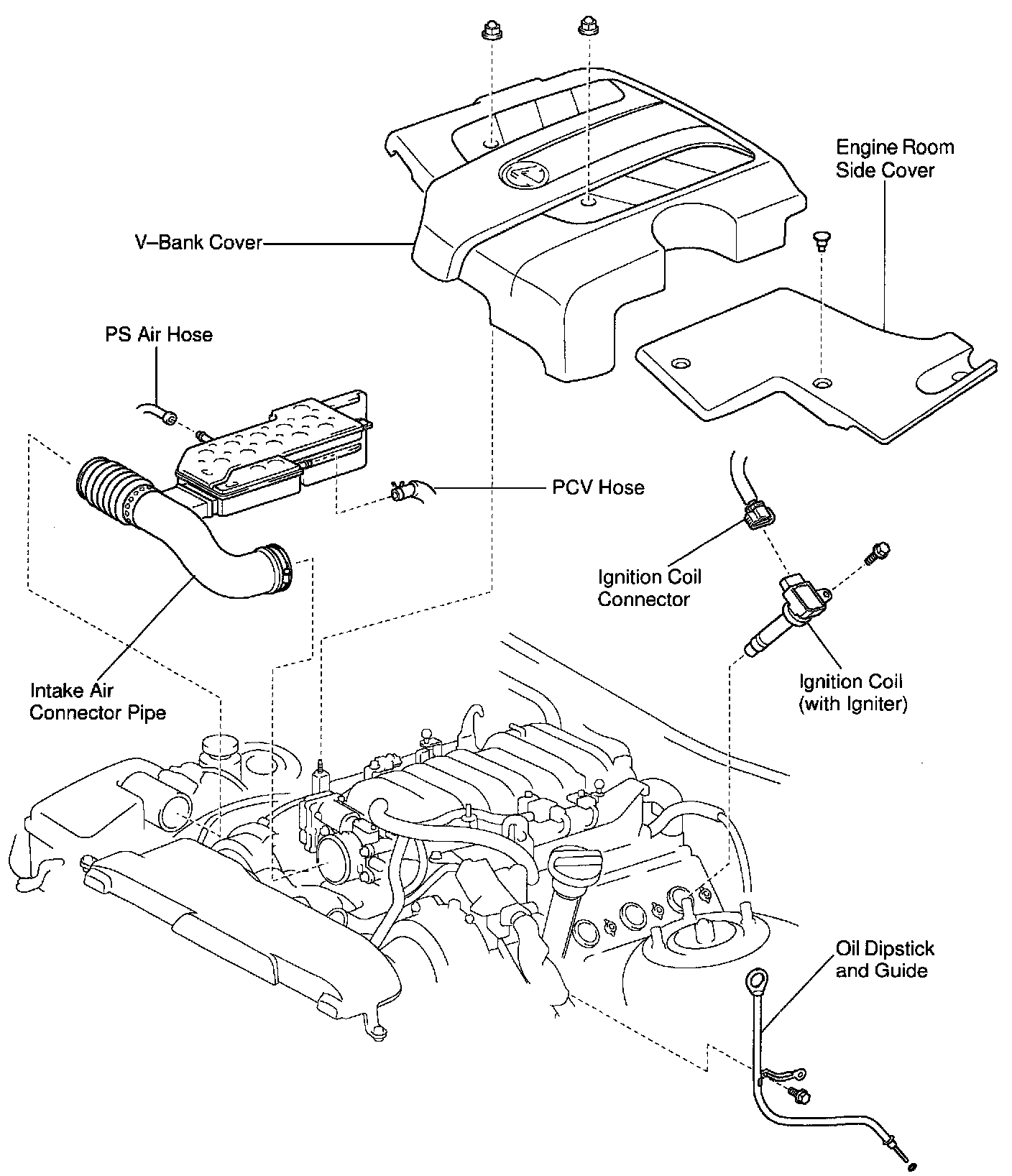

1. REMOVE V-BANK COVER AND ENGINE ROOM SIDE COVERS
2. REMOVE INTAKE AIR CONNECTOR PIPE
3. REMOVE ENGINE OIL LEVEL GAUGE AND GUIDE

4. REMOVE IGNITION COILS
a. Disconnect the 8 ignition coil connectors.




b. Remove the bolt, and pull out the ignition coil. Remove the 8 ignition coils.

5. REINSTALL NEW IGNITION COILS
a. Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 8 ignition coils.

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

b. Connect the 8 ignition coil connectors.

6. INSTALL ENGINE OIL LEVEL GAUGE AND GUIDE
7. REINSTALL INTAKE AIR CONNECTOR PIPE
8. REINSTALL V-BANK COVER AND ENGINE ROOM SIDE COVERS
