Fuel Tank: Service and Repair



Fuel Tank Service and Repair

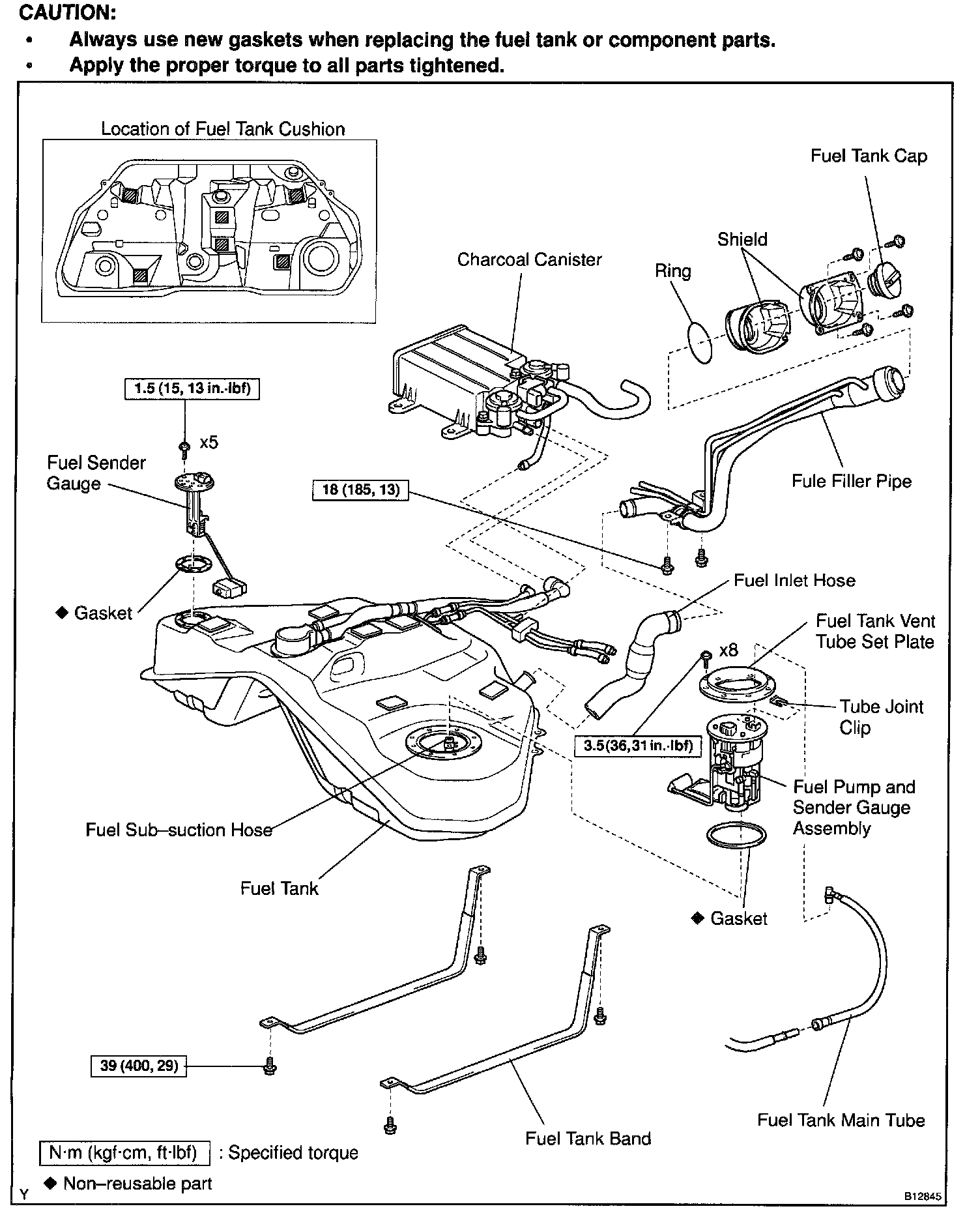

Fuel Tank And Line:

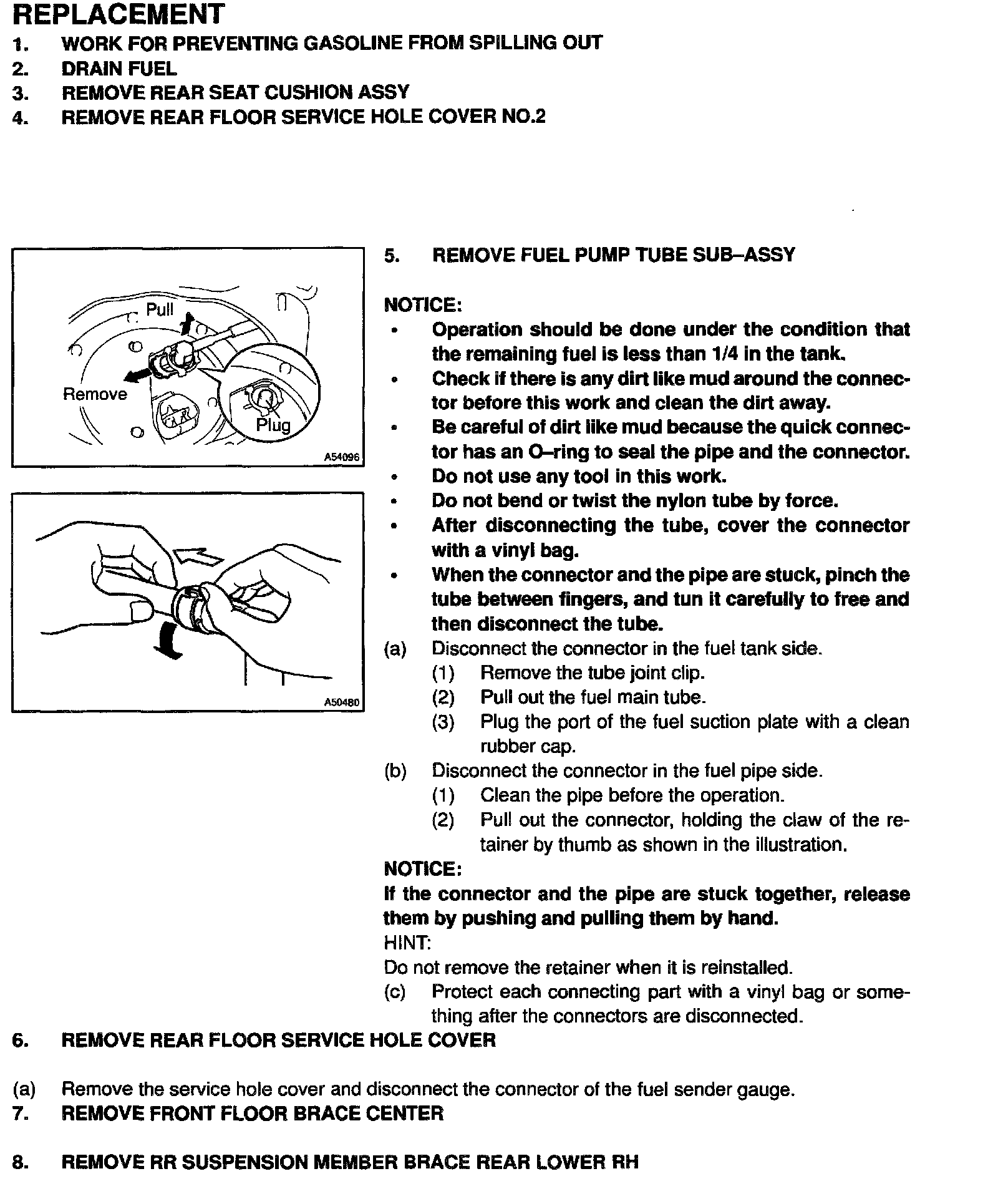

Steps 1-8:

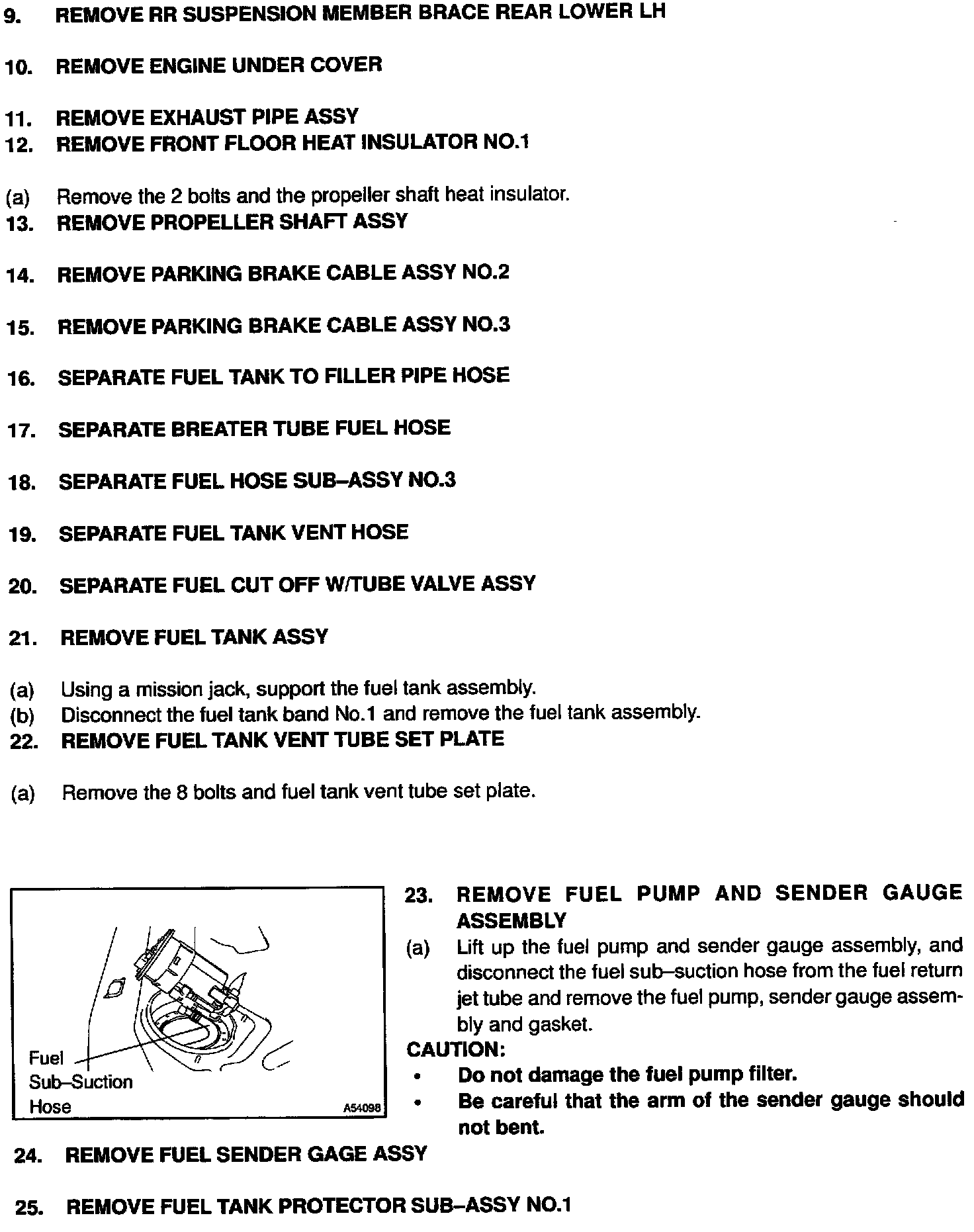

Steps 9-25:

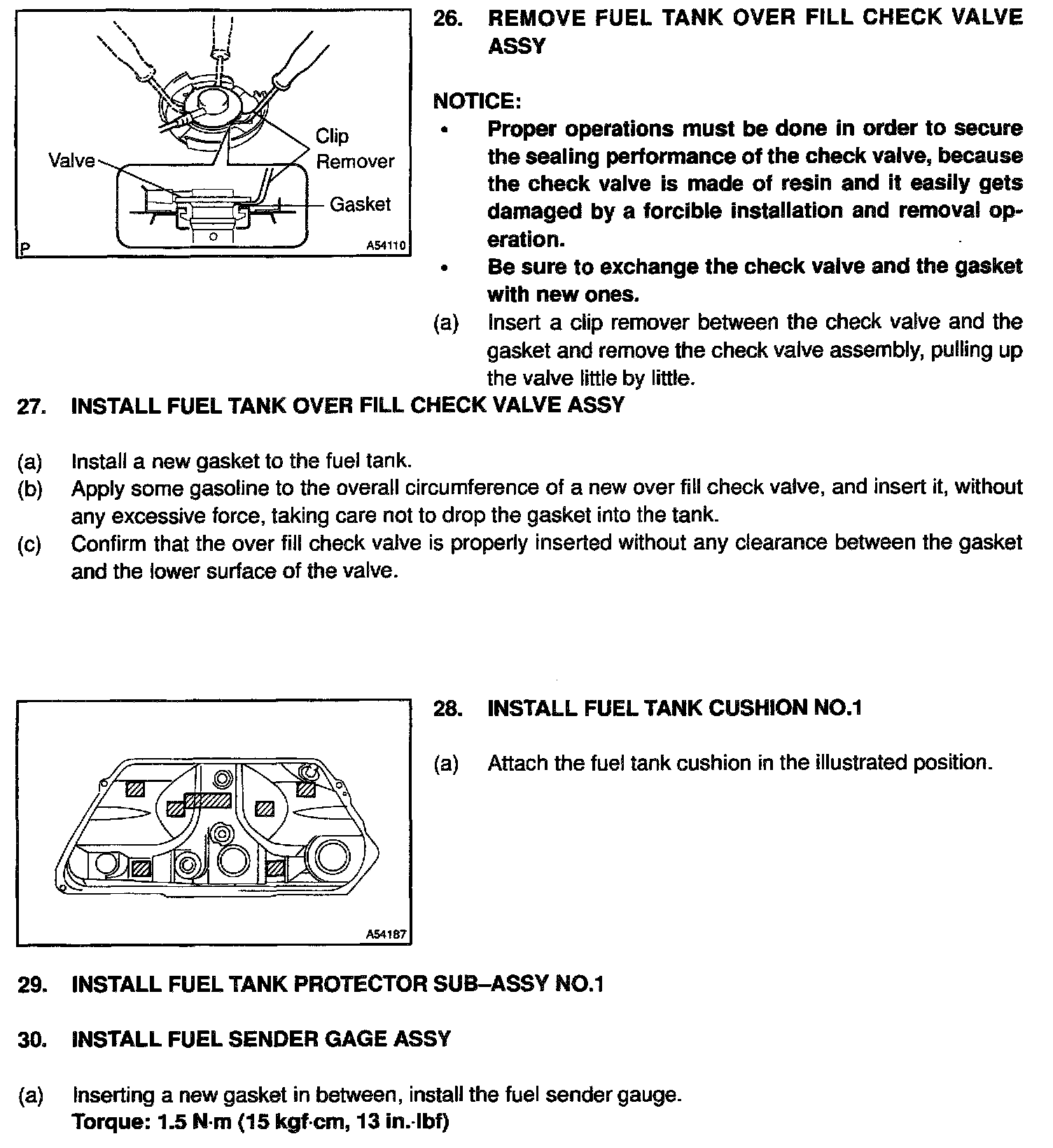

Steps 26-30:

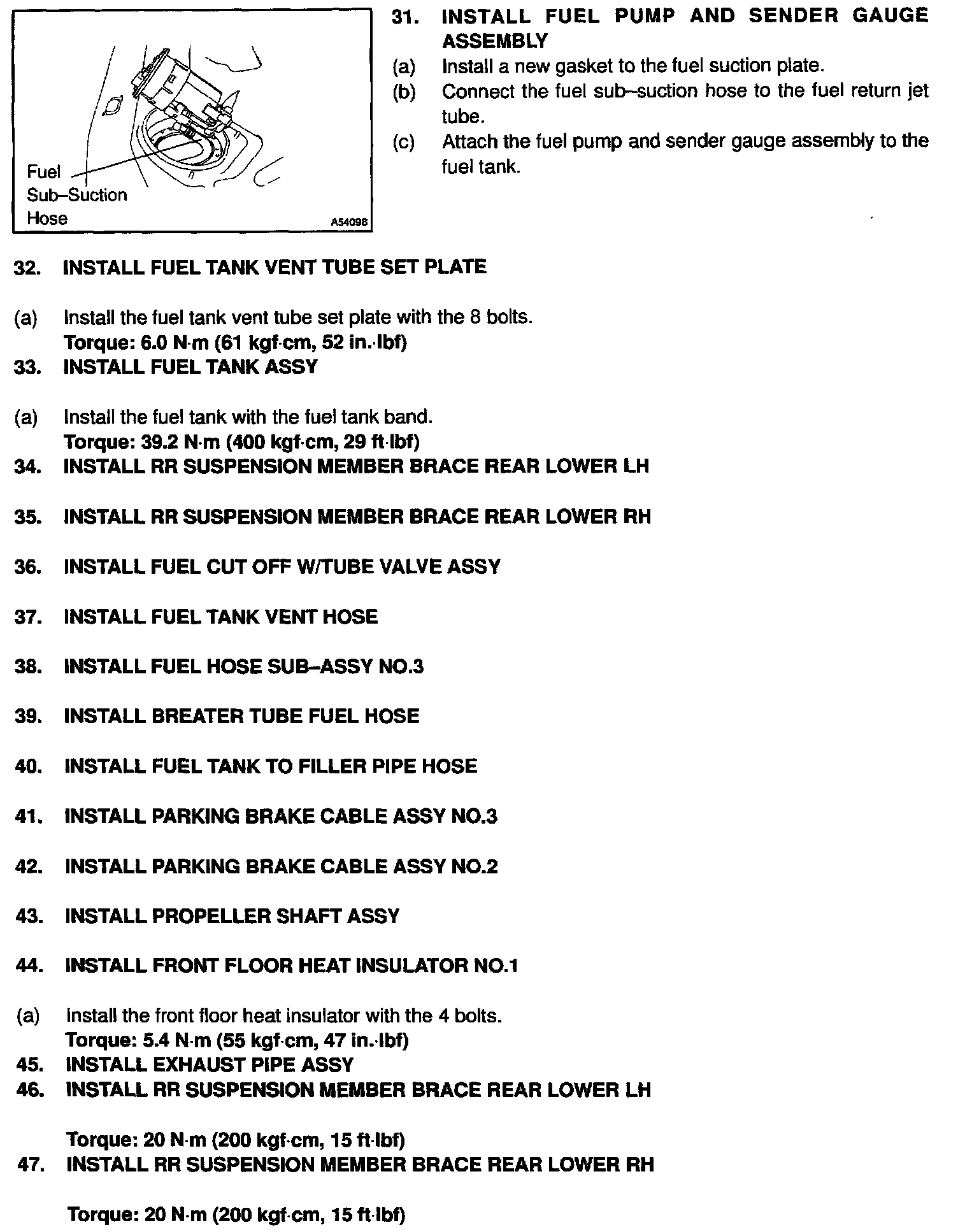

Steps 31-47:

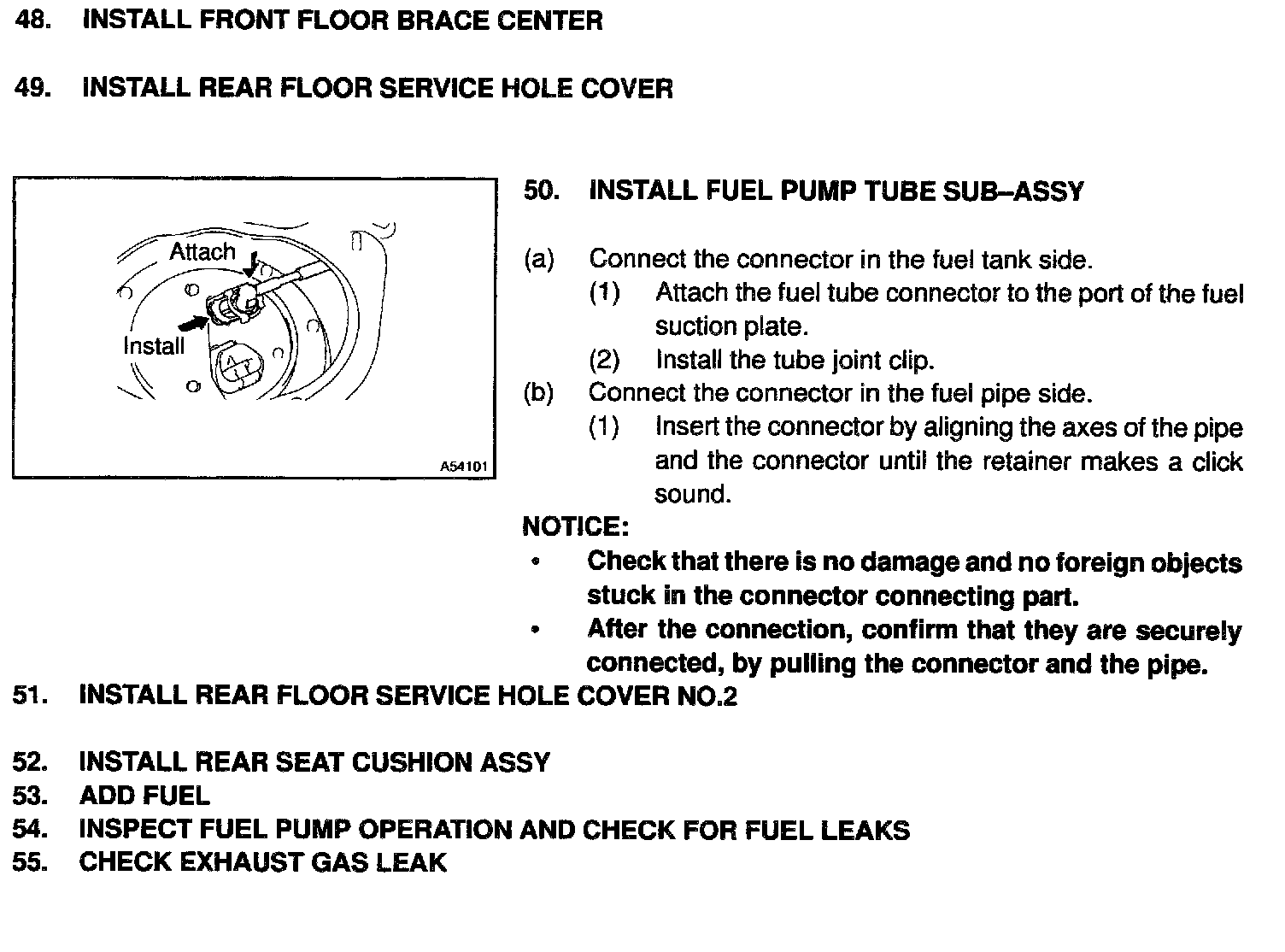

Steps 48-55:
