Component Locations

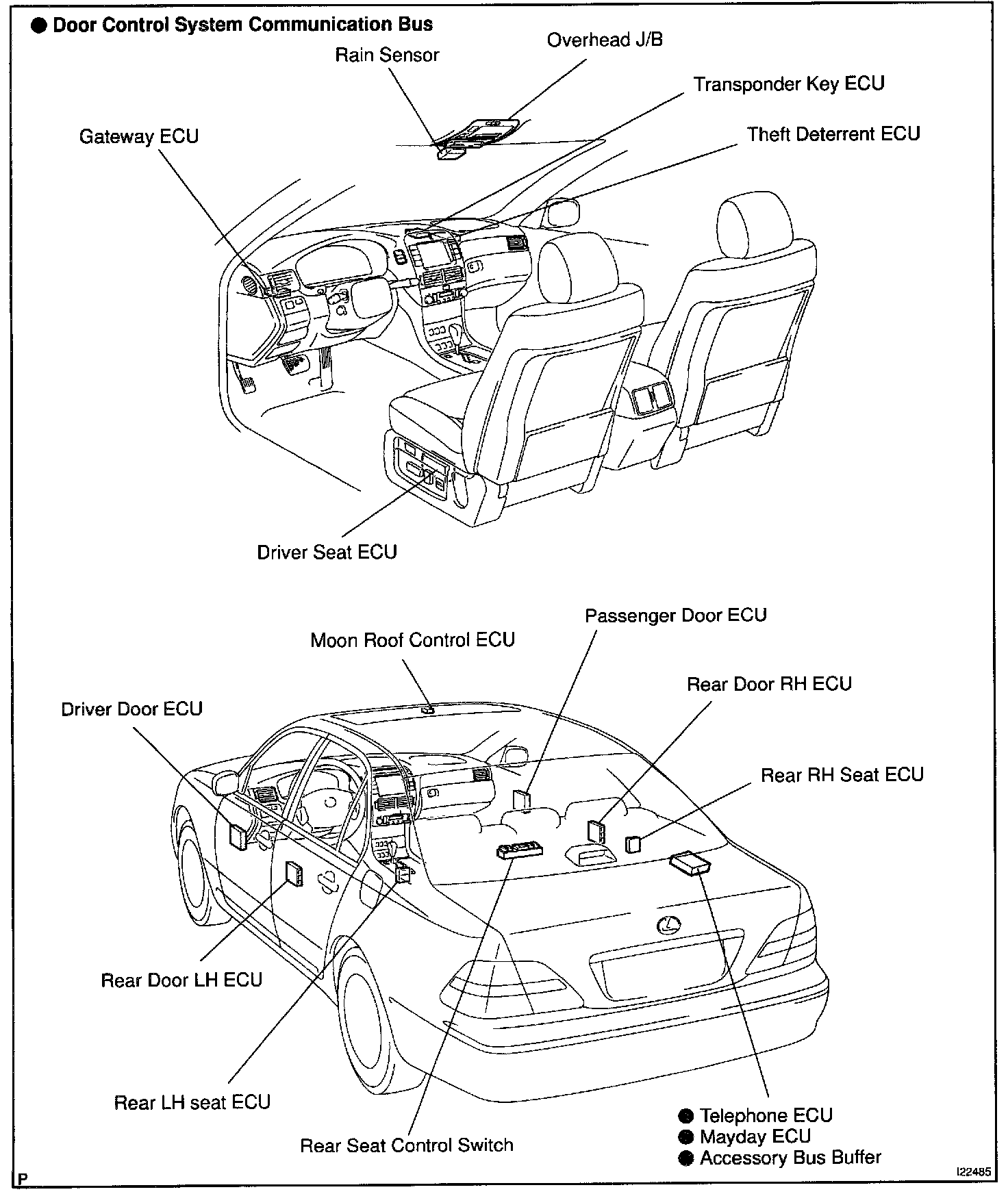

Gateway System Part 1:

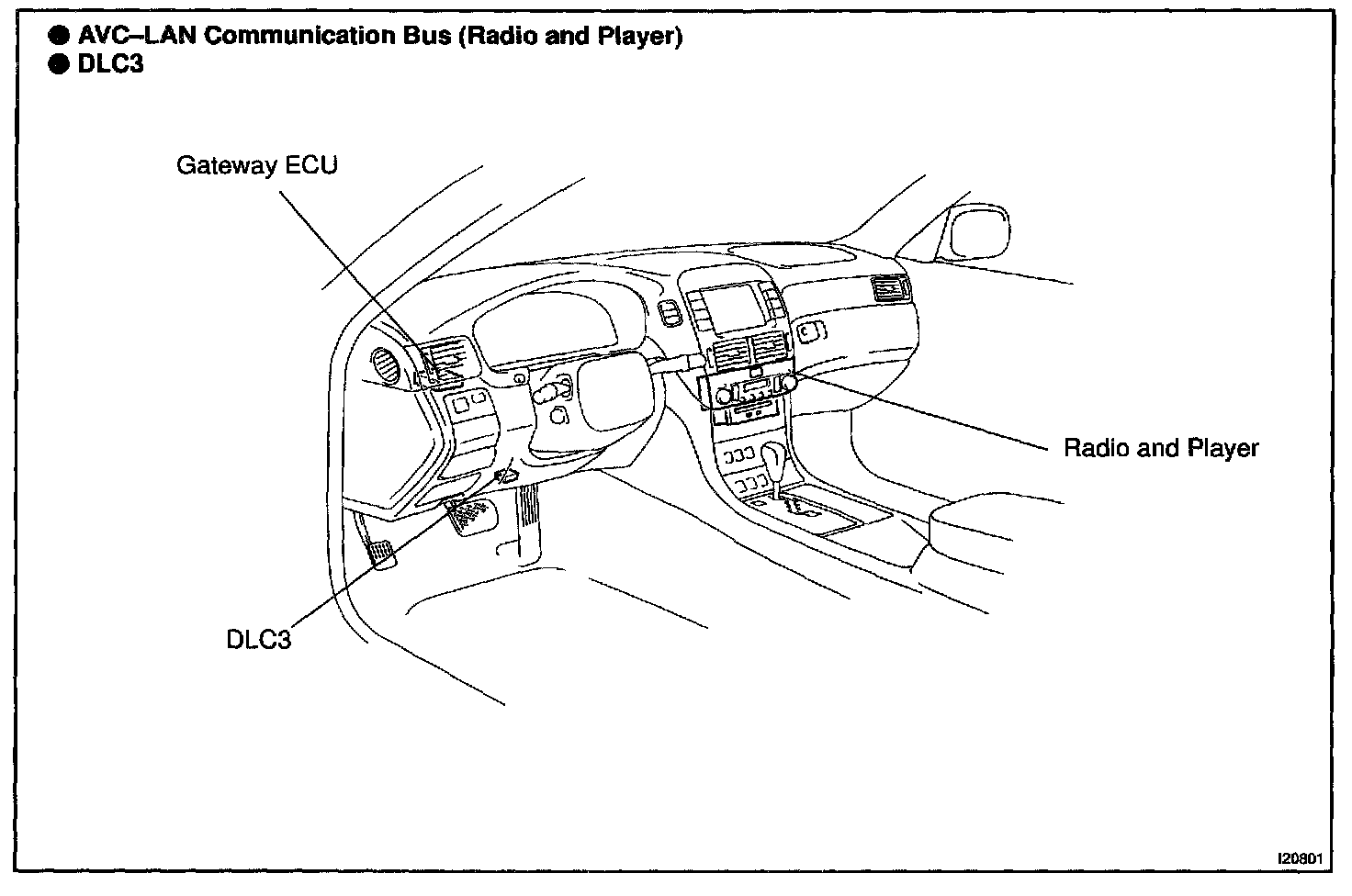

Gateway System Part 2:

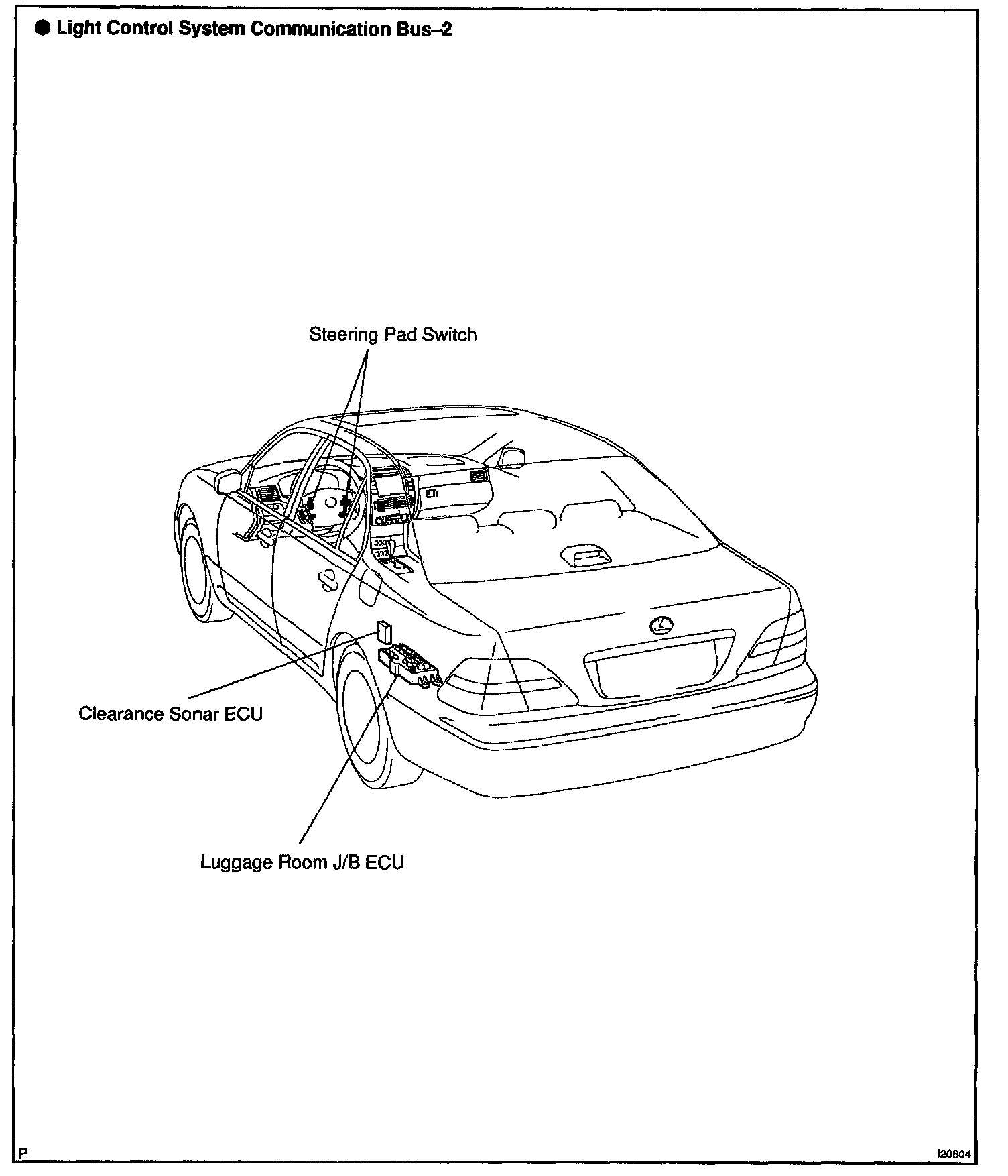

Gateway System Part 3:

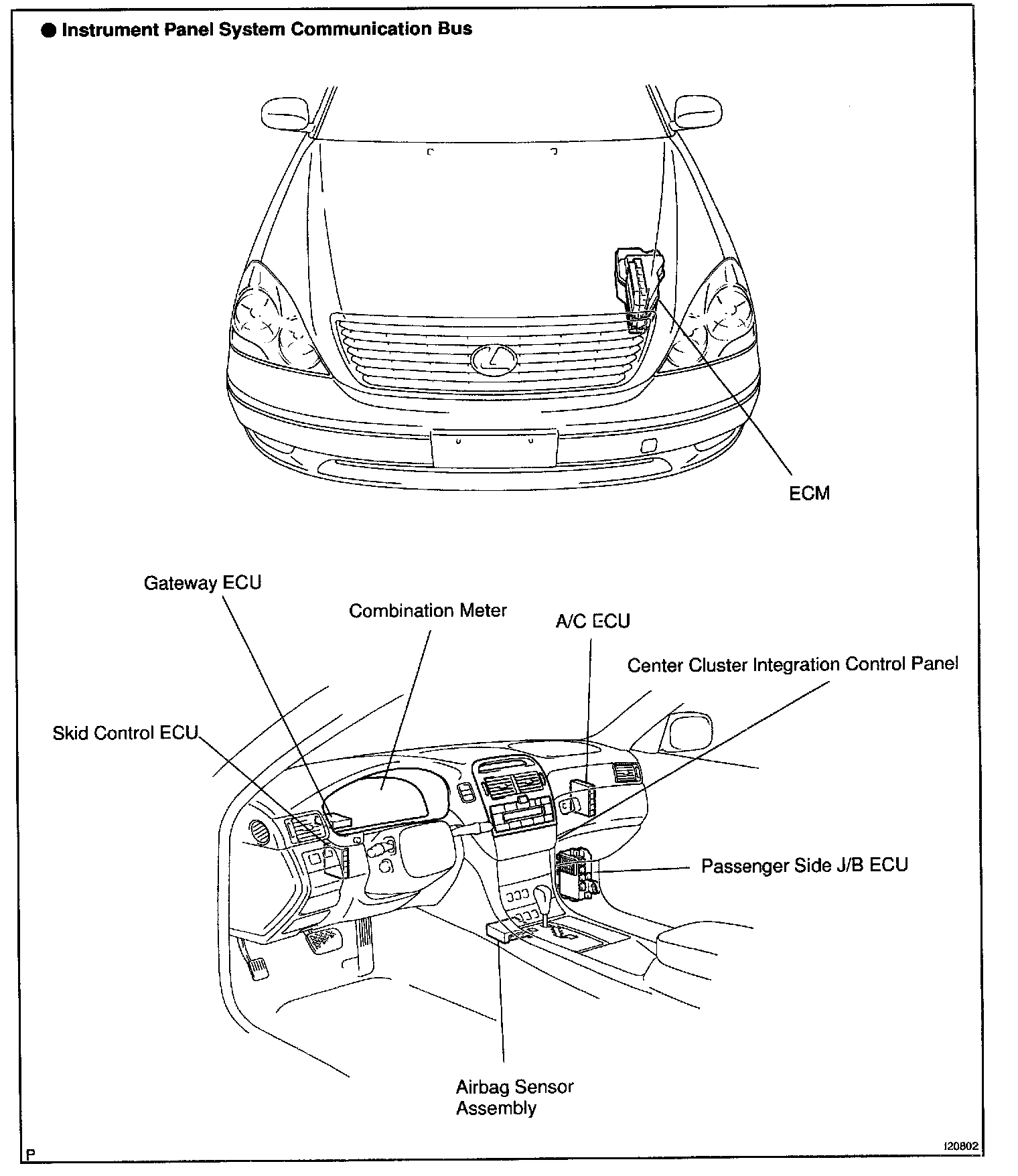

Gateway System Part 4:

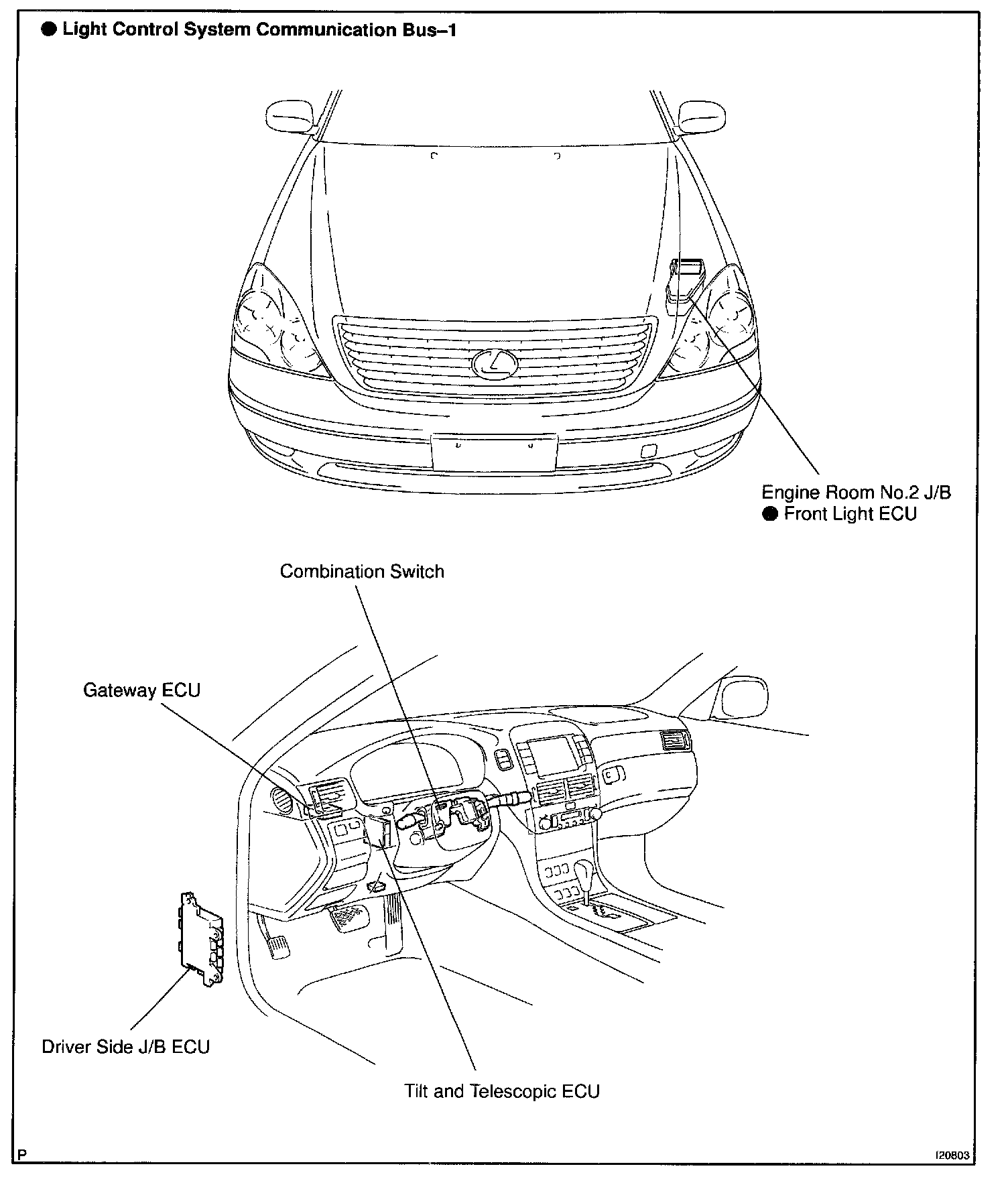

Gateway System Part 5:
