Water Valve Control Servomotor Circuit

CIRCUIT DESCRIPTION

This circuit turns the servomotor and changes each mode damper position by the signals from the A/C ECU

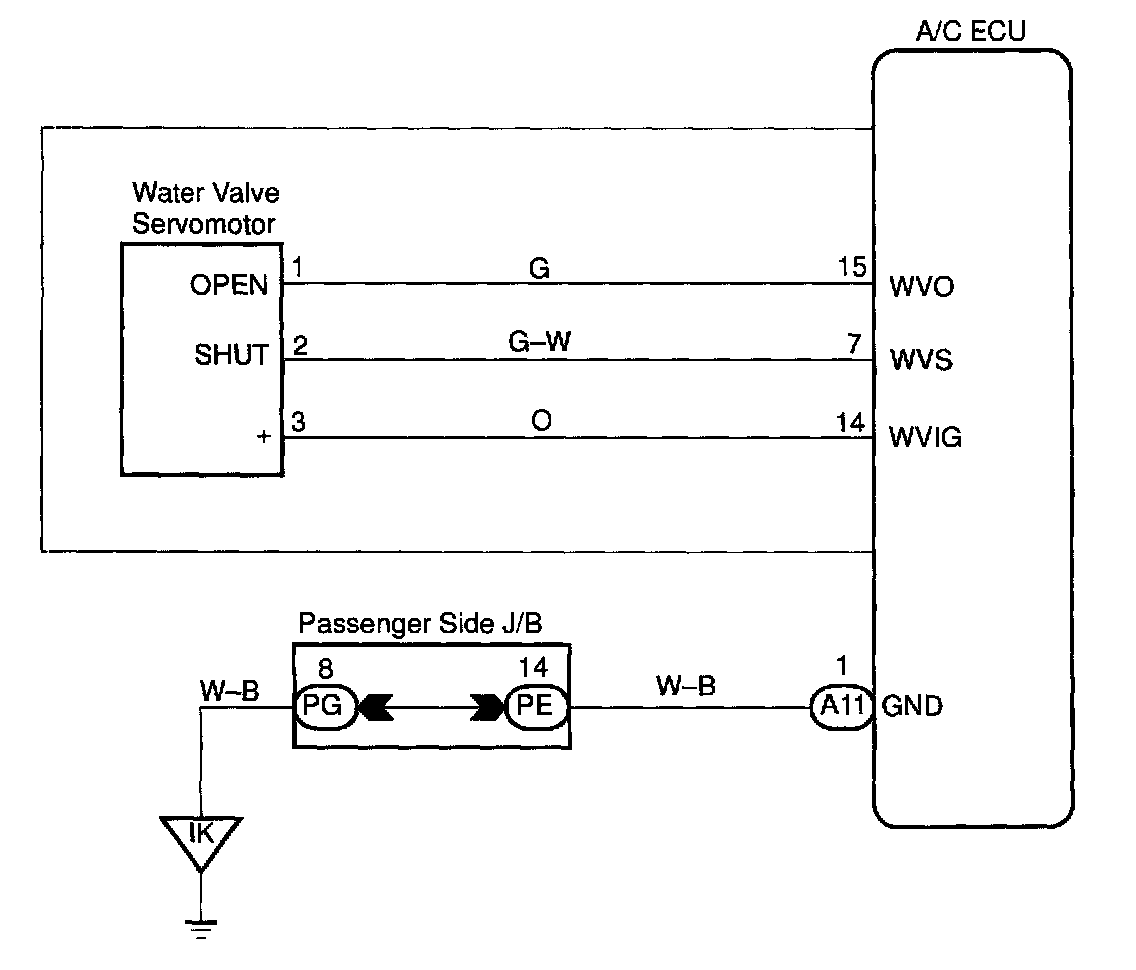

Wiring Diagram:

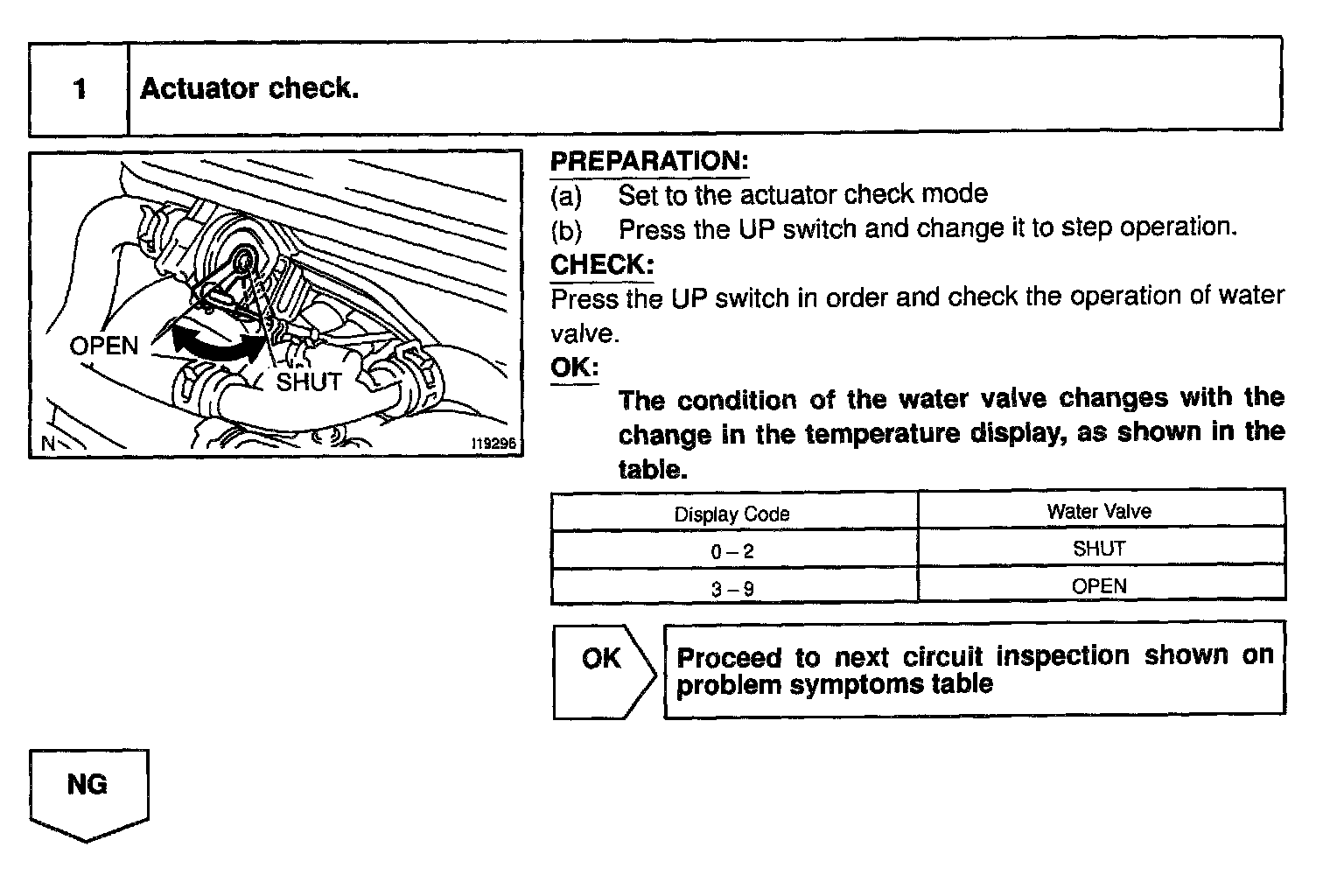

Step 1:

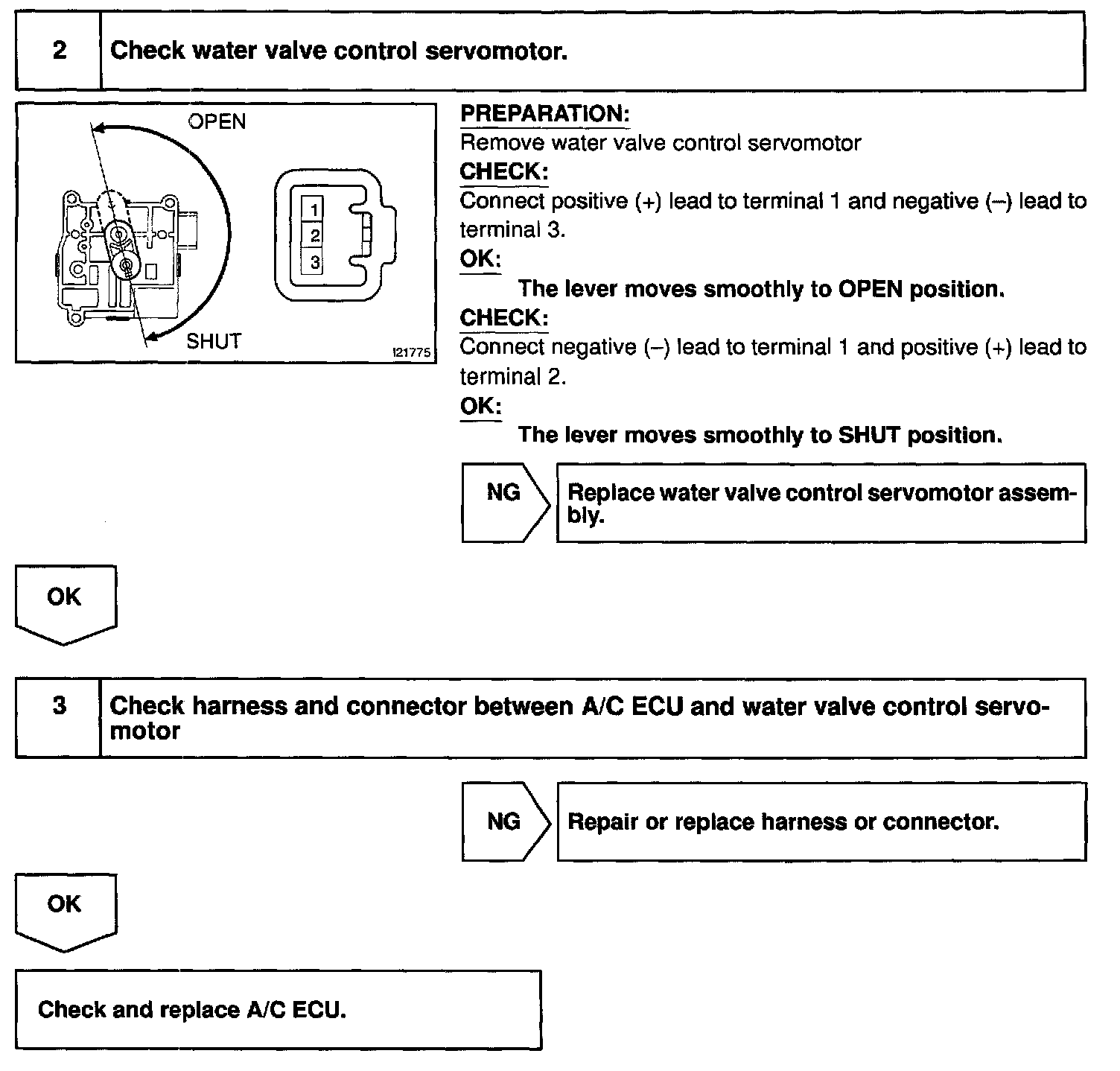

Step 2 - 3:

INSPECTION PROCEDURE
