Lexus
>>
2002
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
System Diagram

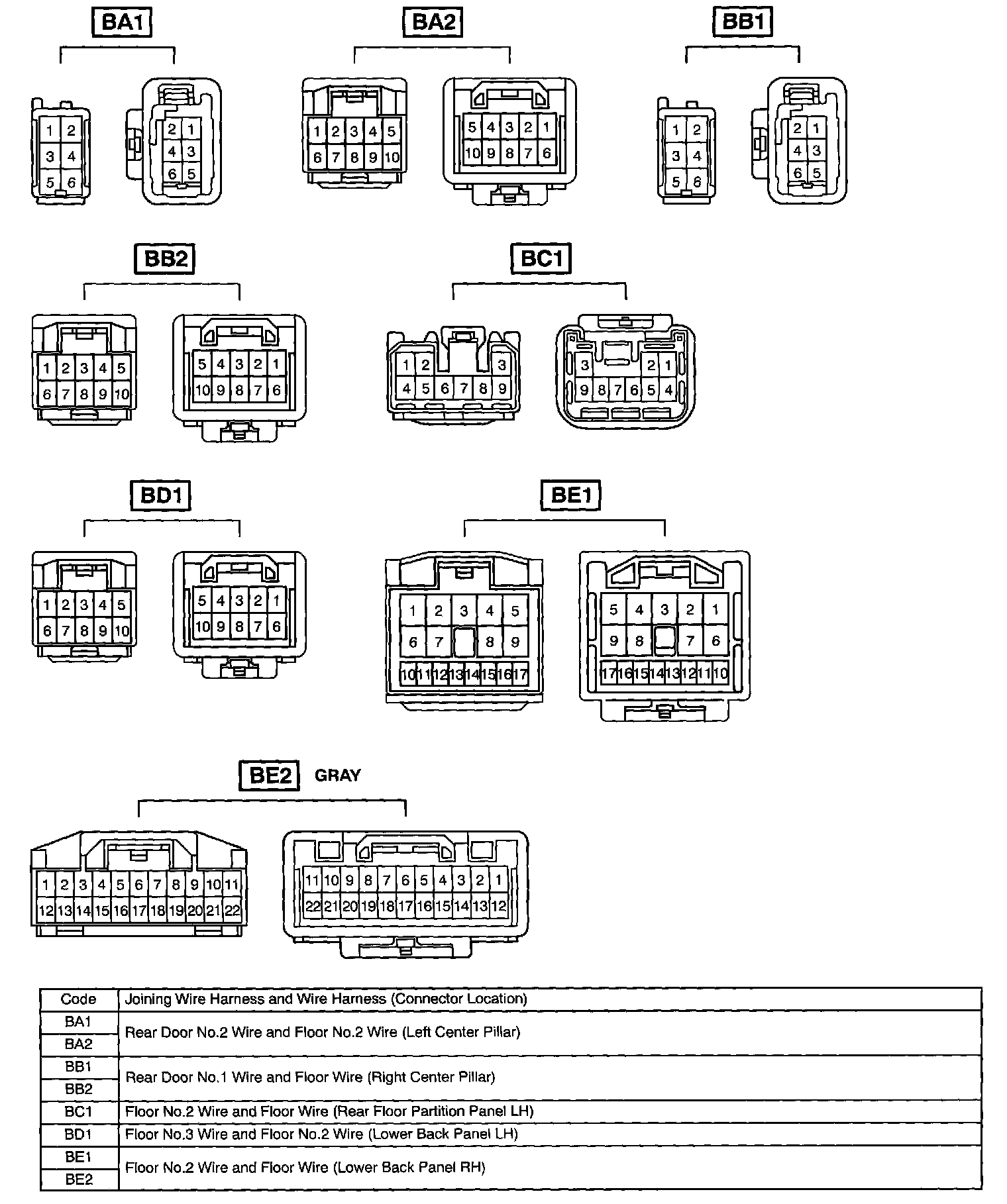

Under Wood Wire Harness To Wire Harness Connectors (BA1 - BE2):
