VSC Warning Buzzer Circuit
VSC Warning Buzzer Circuit
CIRCUIT DESCRIPTION
The VSC warning buzzer sounds during VSC operation
Wiring Diagram:

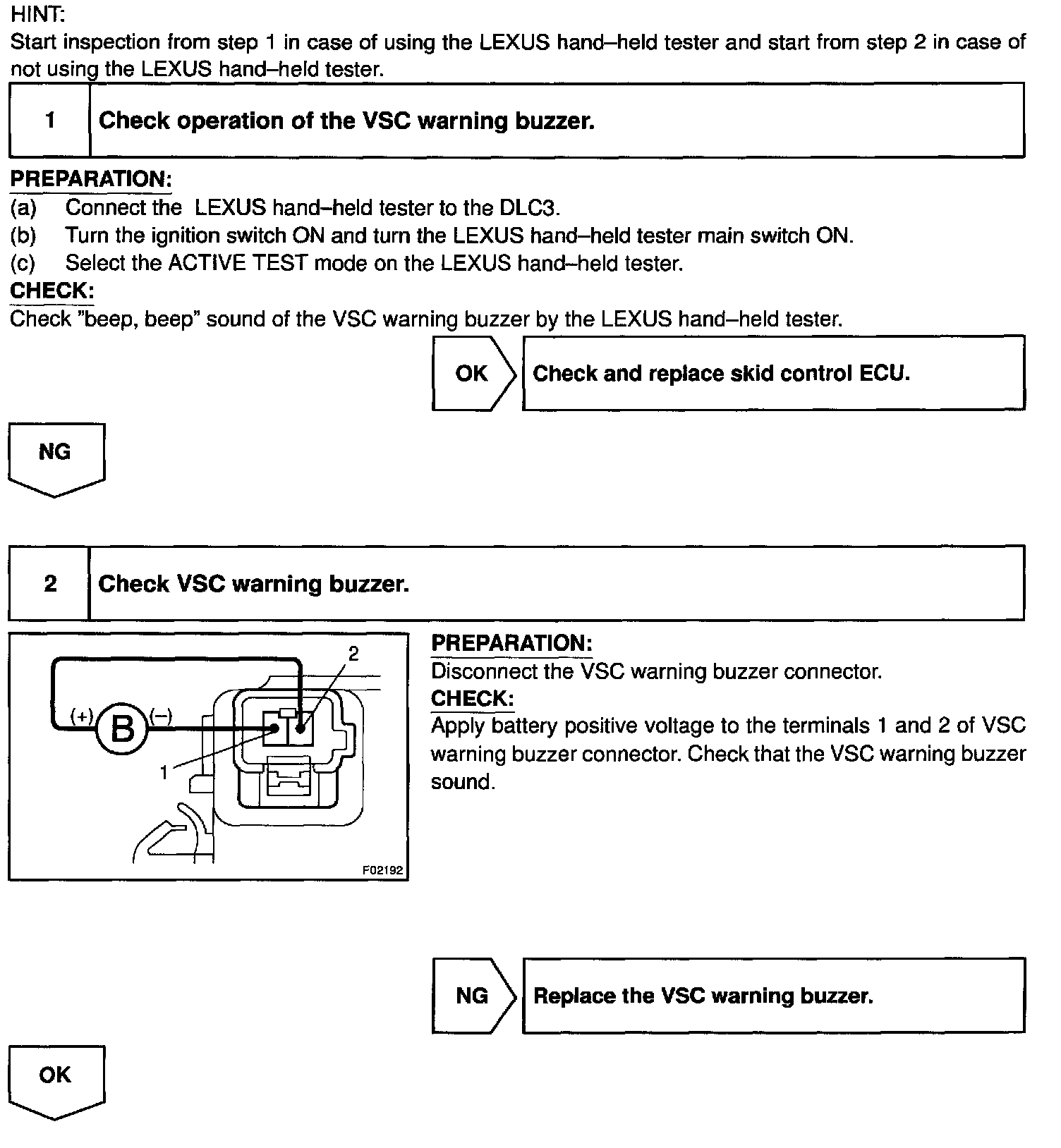

Step 1 - 2:

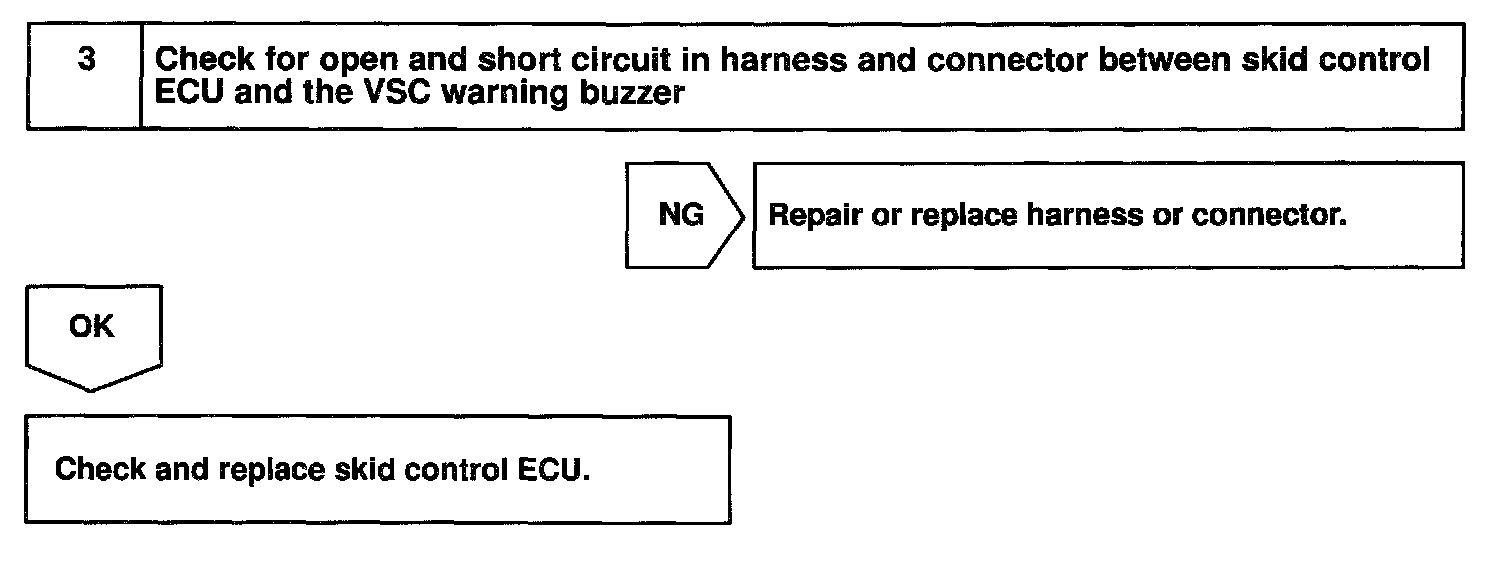

Step 3:
INSPECTION PROCEDURE
