VSC Off Indicator Lamp, VSC Off Switch Circuit

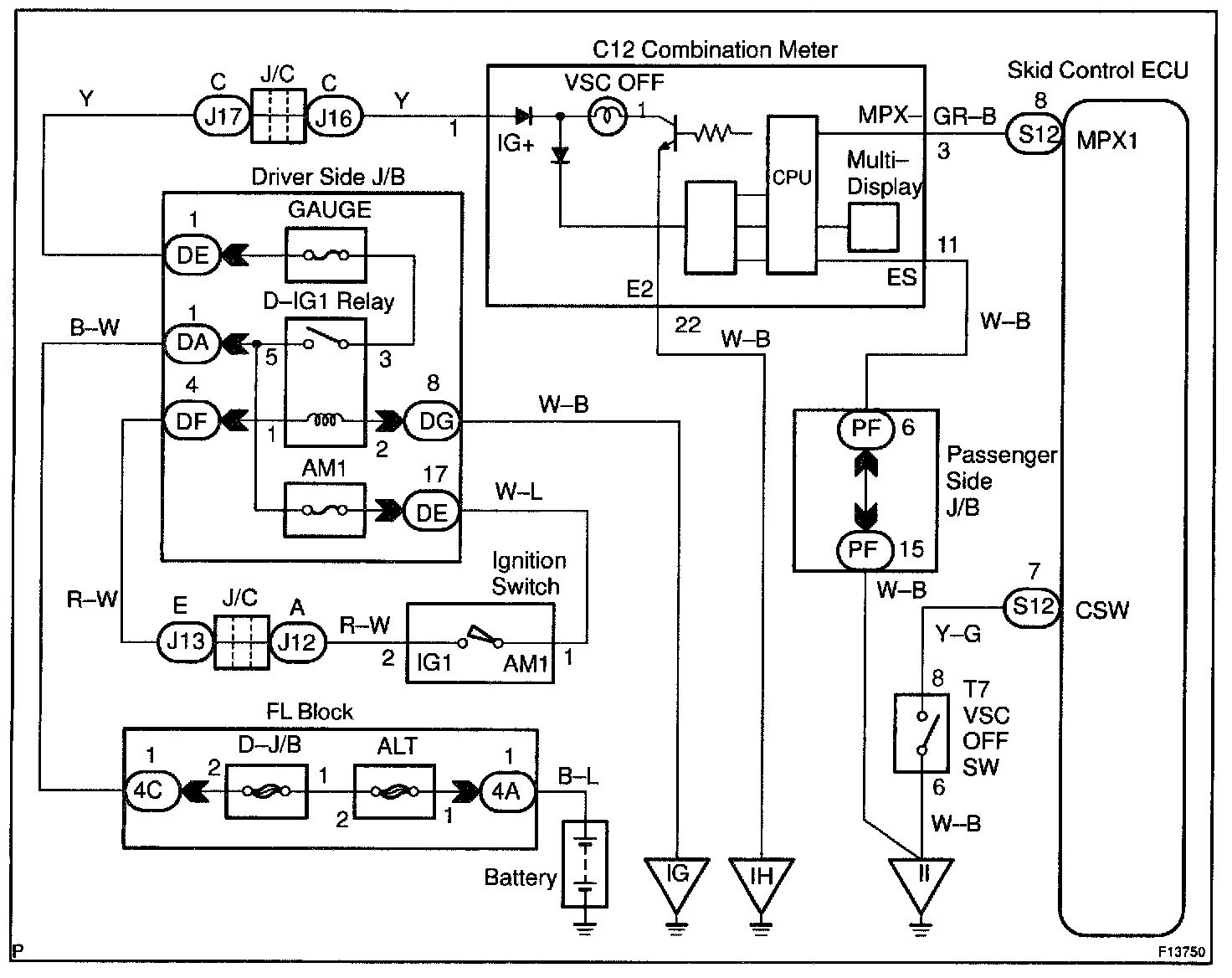

CIRCUIT DESCRIPTION

This is the TRAC & VSC control main switch. Pressing the VSC OFF switch stops TRAC & VSC controls' operation and turns the VSC OFF indicator ON. The VSC OFF indicator also turns ON when the ECU prohibits ABS & TRAC & VSC controls. Turn the ignition switch OFF, TRAC & VSC control surely comes on when the ignition switch turns ON next time.
