Headrest Limit Switch Circuit

CIRCUIT DESCRIPTION

The rear RH seat ECU is detecting the condition of the headrest limit switch.

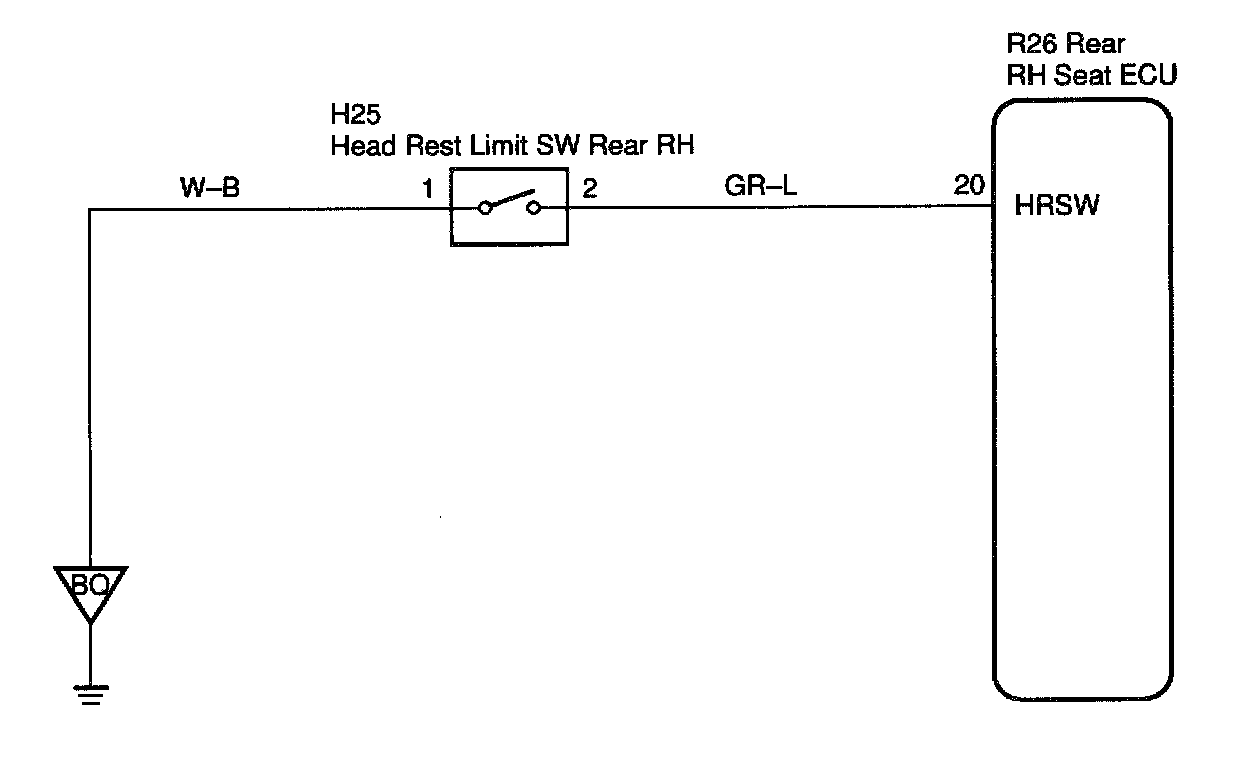

Wiring Diagram:

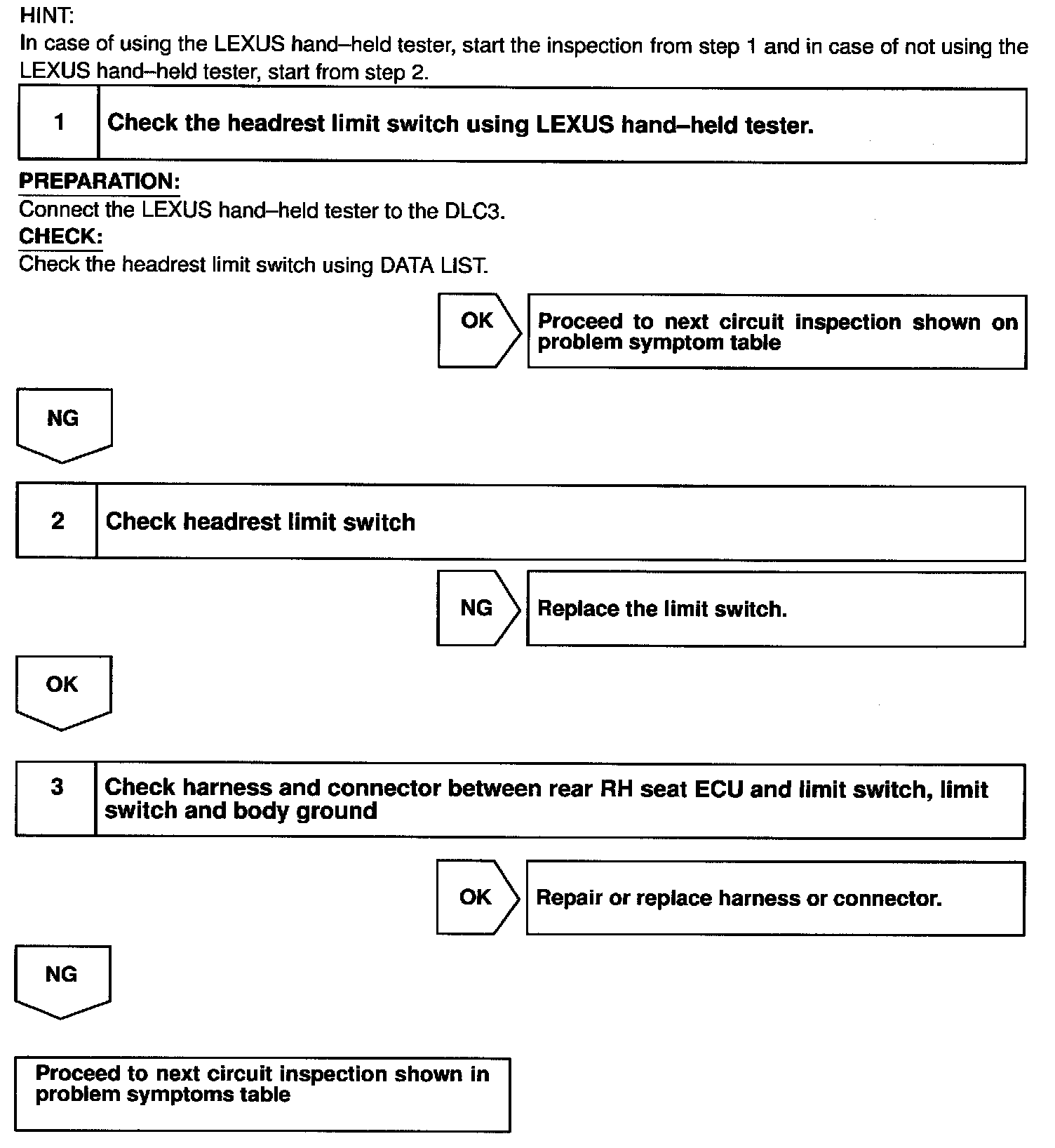

Step 1 - 3:




INSPECTION PROCEDURE
