Slide Power Seat Motor Circuit
CIRCUIT DESCRIPTIONThe Rear LH Seat ECU receives the slide position signal of the rear power seat switch to operate the slide power seat motor.
Wiring Diagram:

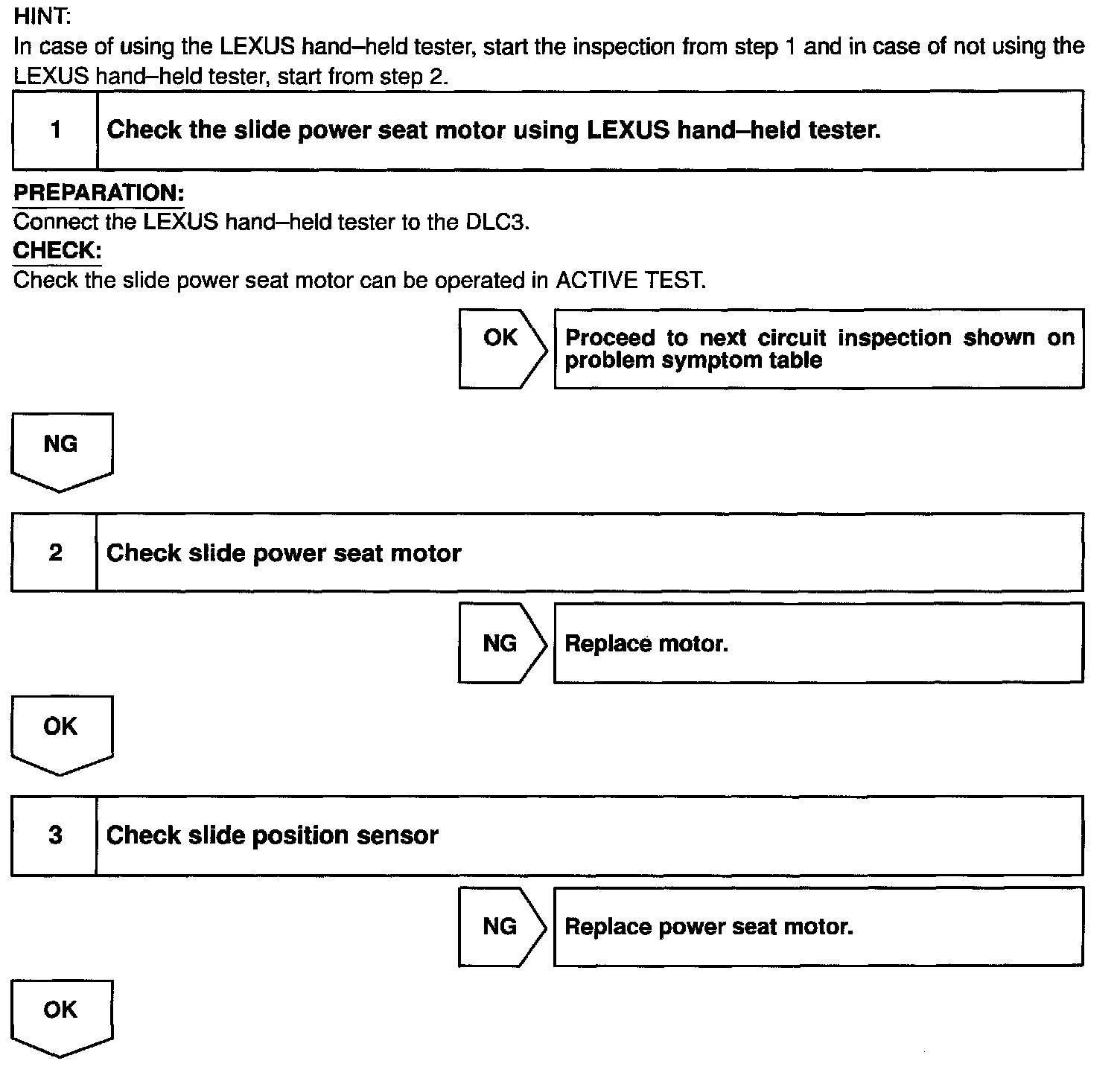

Step 1 - 3:

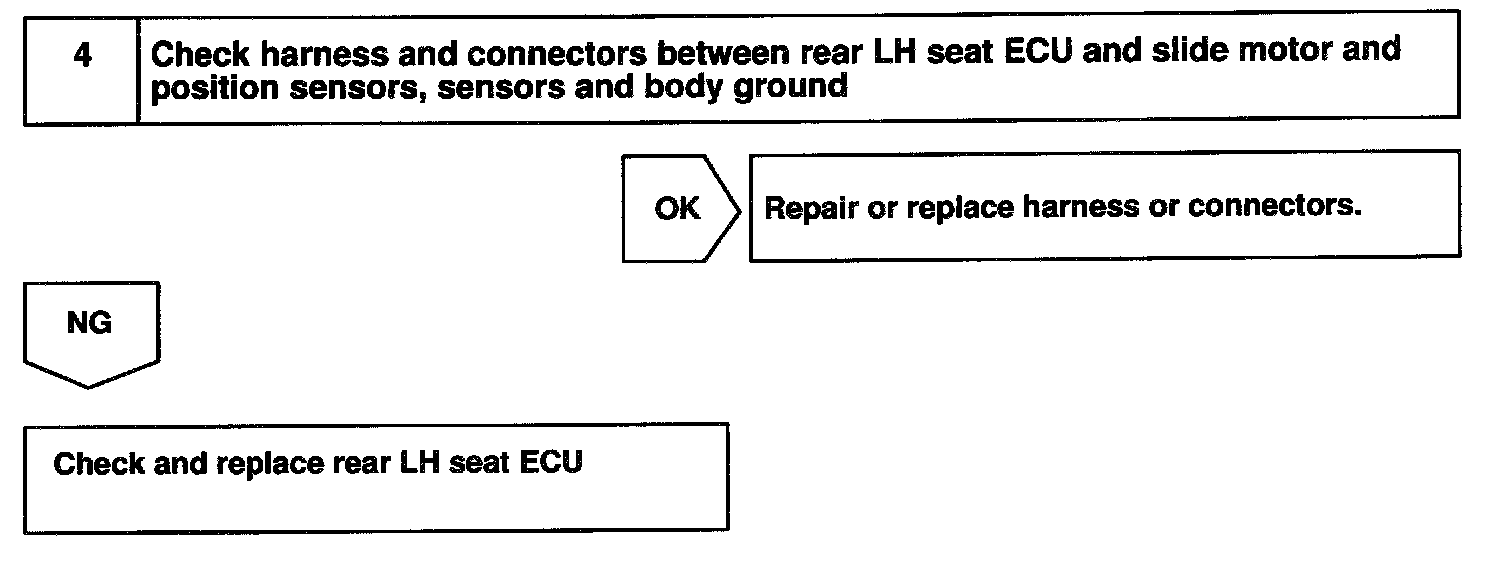

Step 4:
INSPECTION PROCEDURE
The Rear LH Seat ECU receives the slide position signal of the rear power seat switch to operate the slide power seat motor.
INSPECTION PROCEDURE
