Sliding Roof Gear Assembly With ECU Power Source Circuit

CIRCUIT INSPECTION

Sliding Roof Gear Assembly with ECU Power Source Circuit

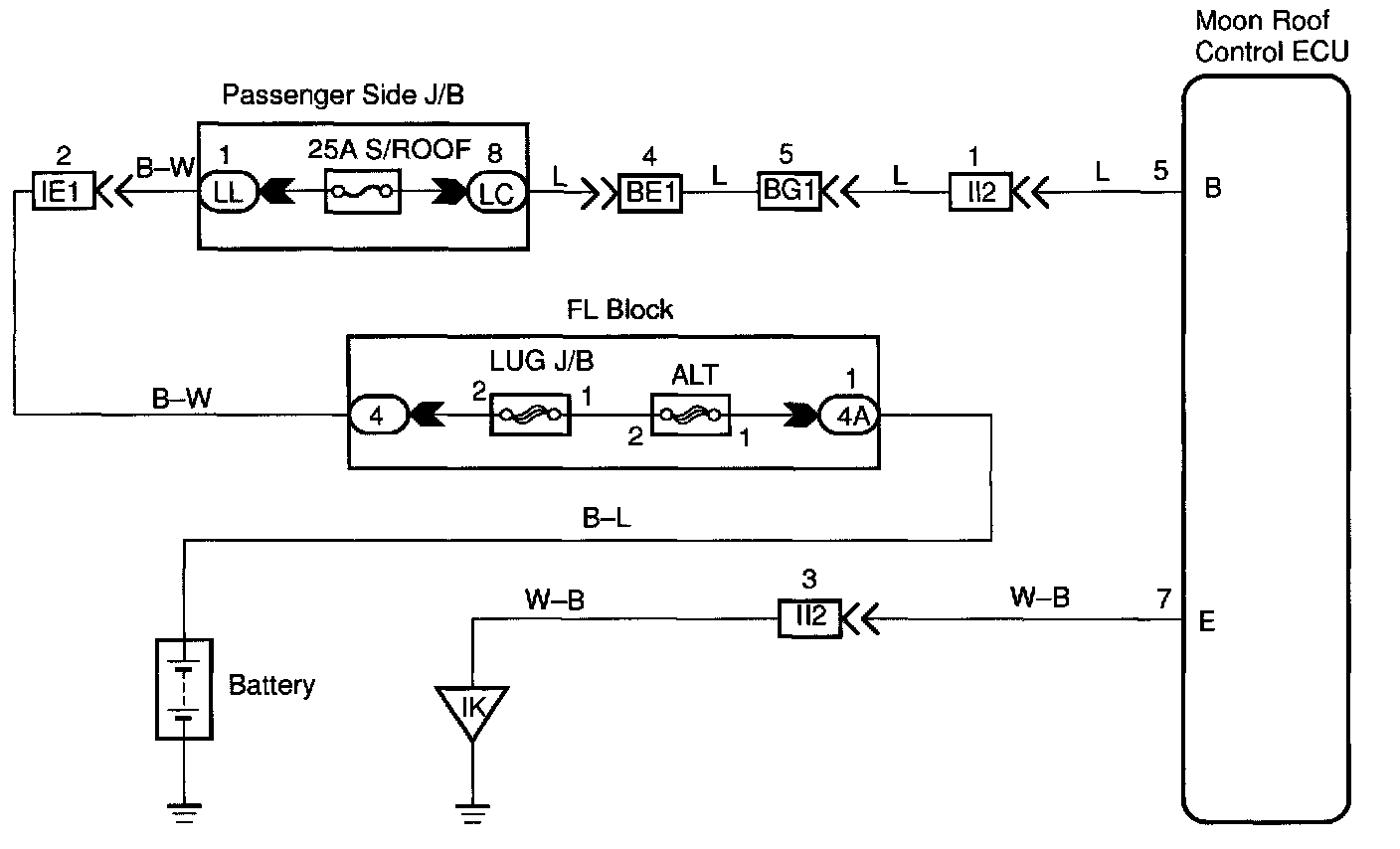

Wiring Diagram:

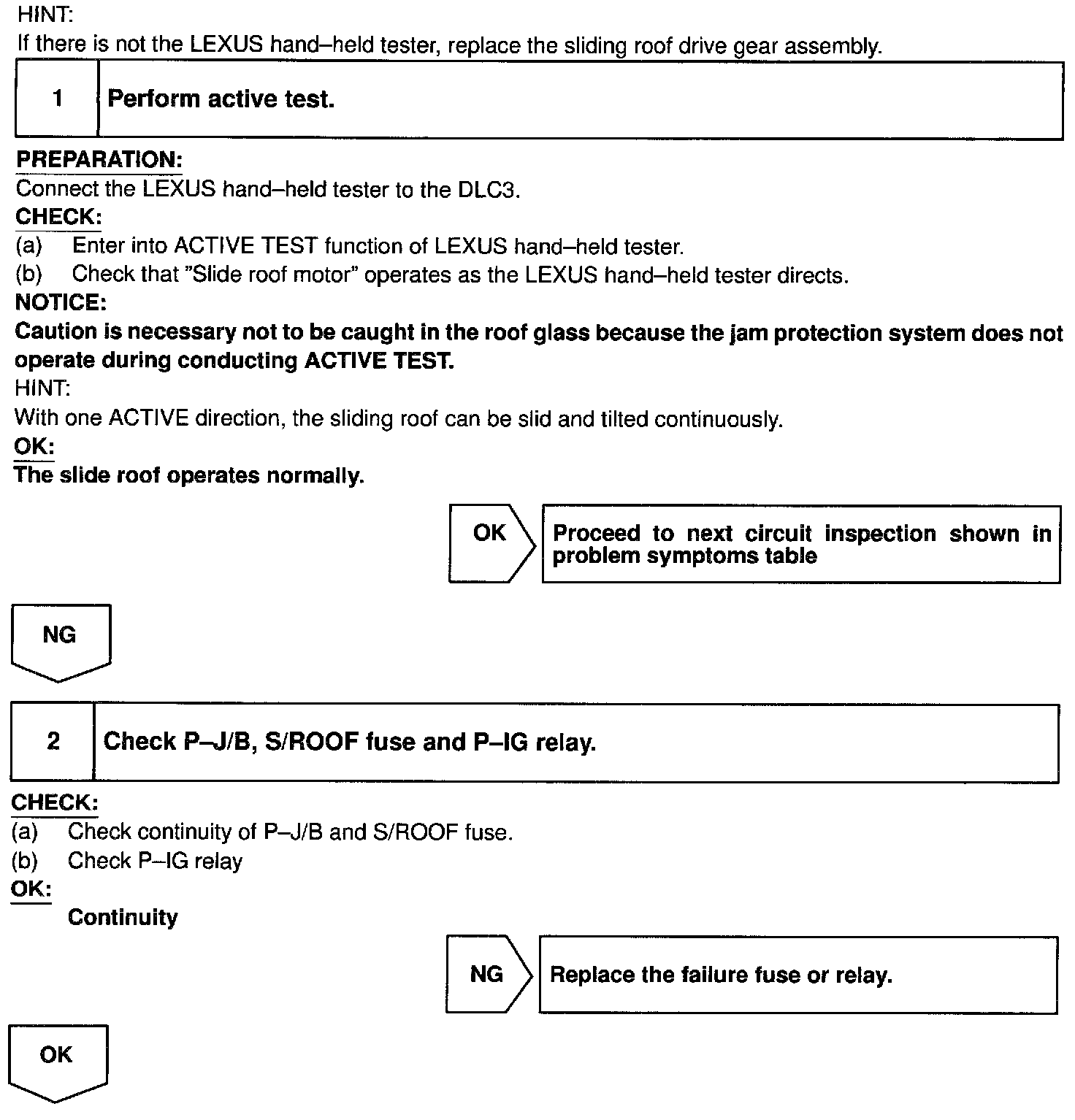

Step 1 - 2:

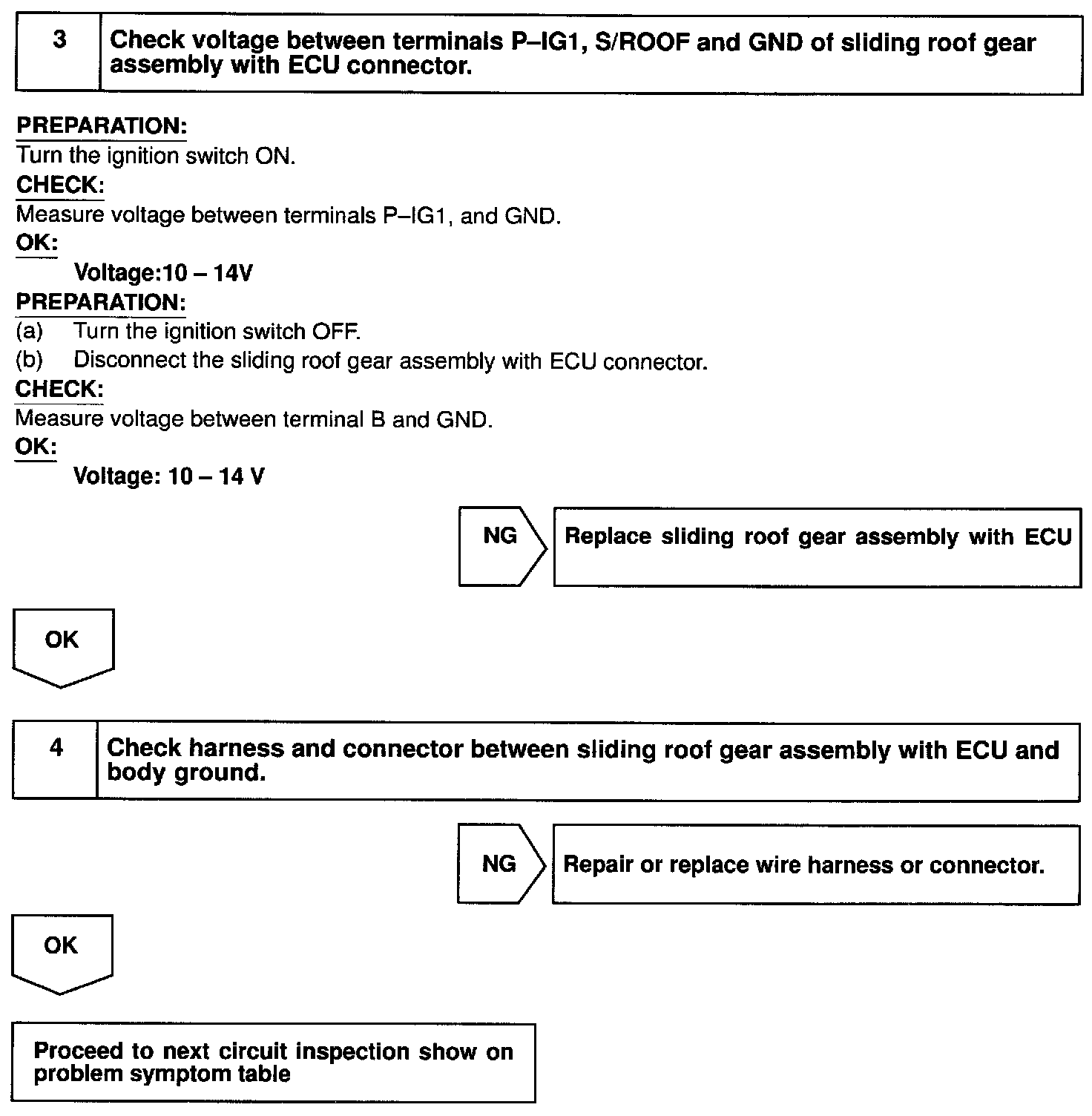

Step 3 - 4:




INSPECTION PROCEDURE
