Inside Handle Illumination Circuit

CIRCUIT DESCRIPTION

The inside handle illumination goes on when the door is opened and goes off when closed.

When the A/T shift lever is in R position, the rear door LH ECU lights the inside handle illumination.

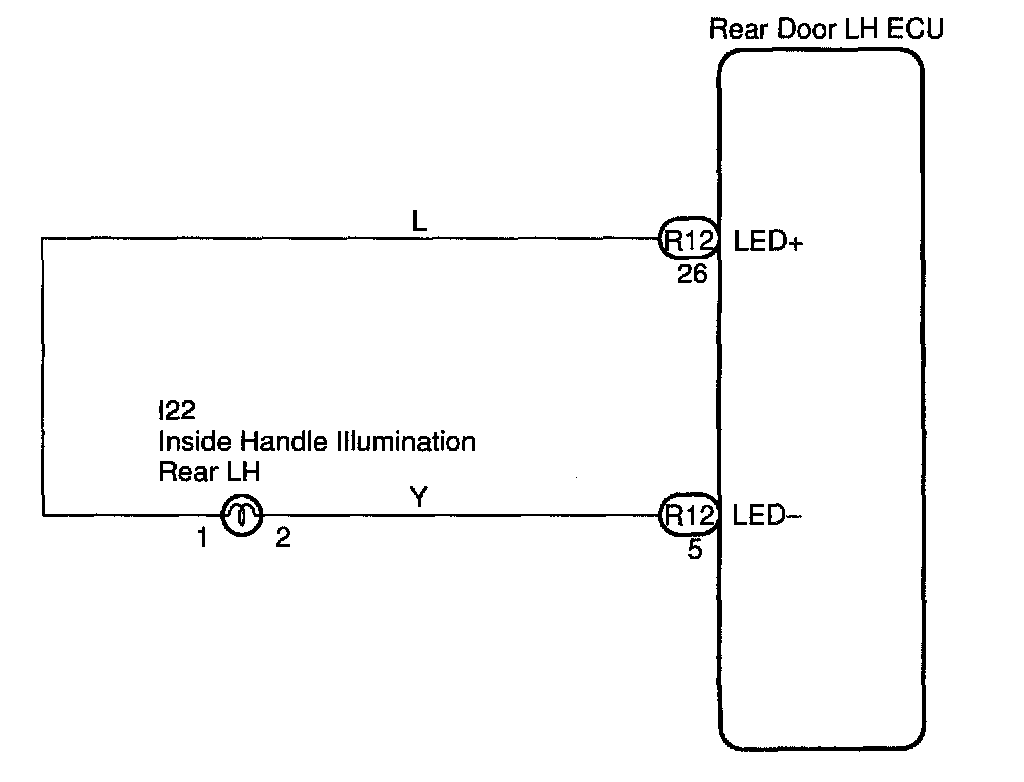

Wiring Diagram:

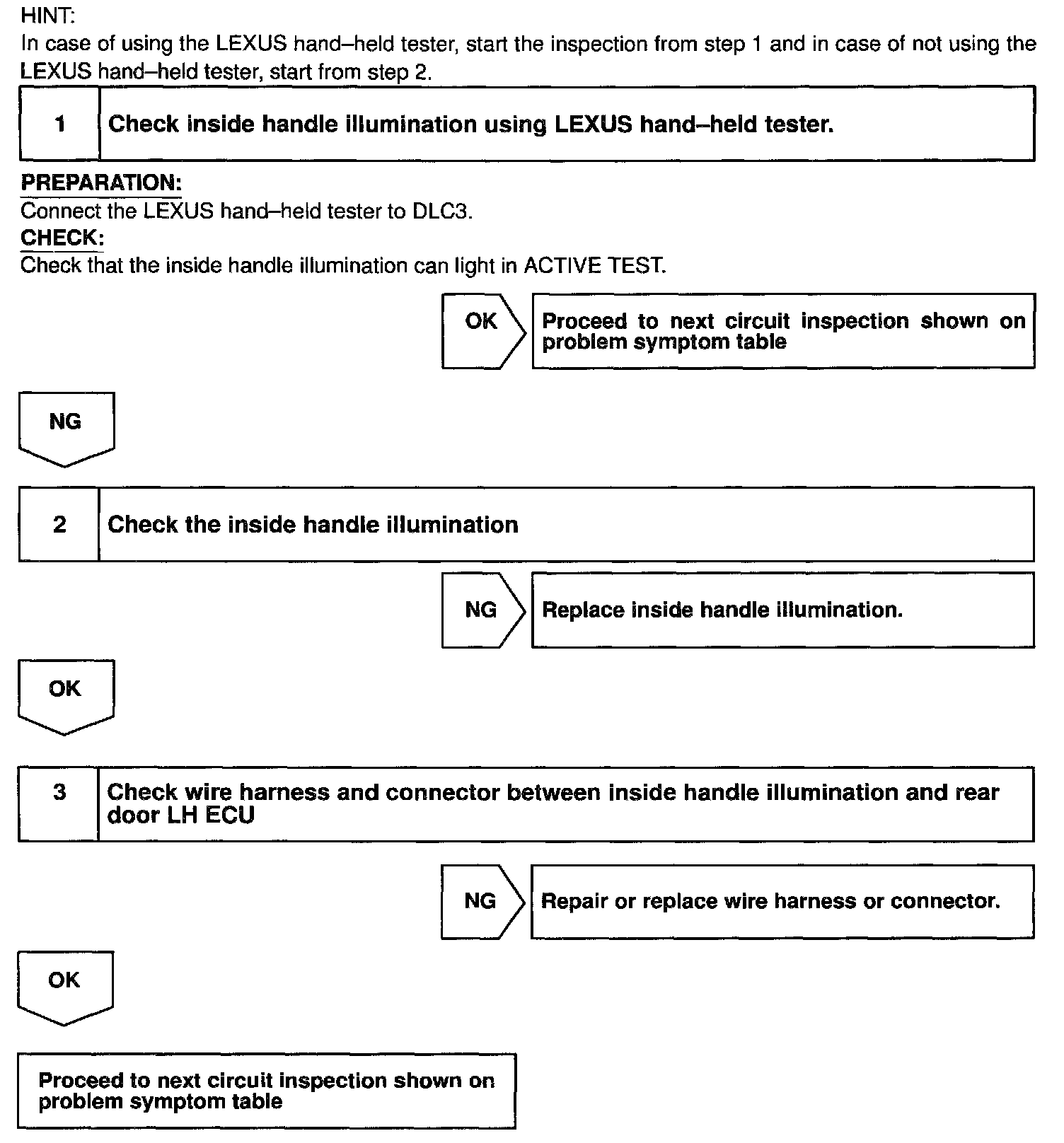

Step 1 - 3:

INSPECTION PROCEDURE
