Pattern Select Switch Circuit

CIRCUIT DESCRIPTION

Passenger sides J/B ECU detects the state of the ECT pattern select switch.

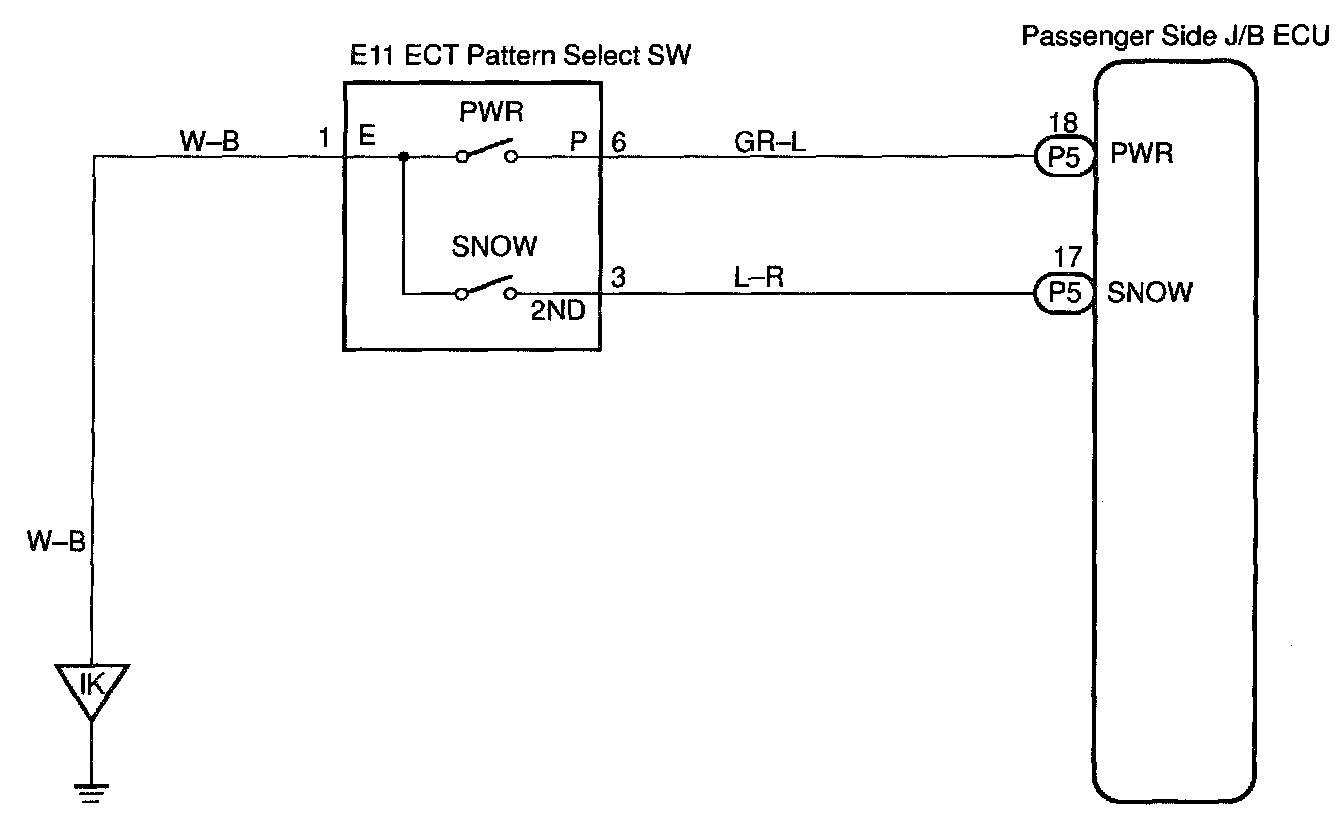

Wiring Diagram:

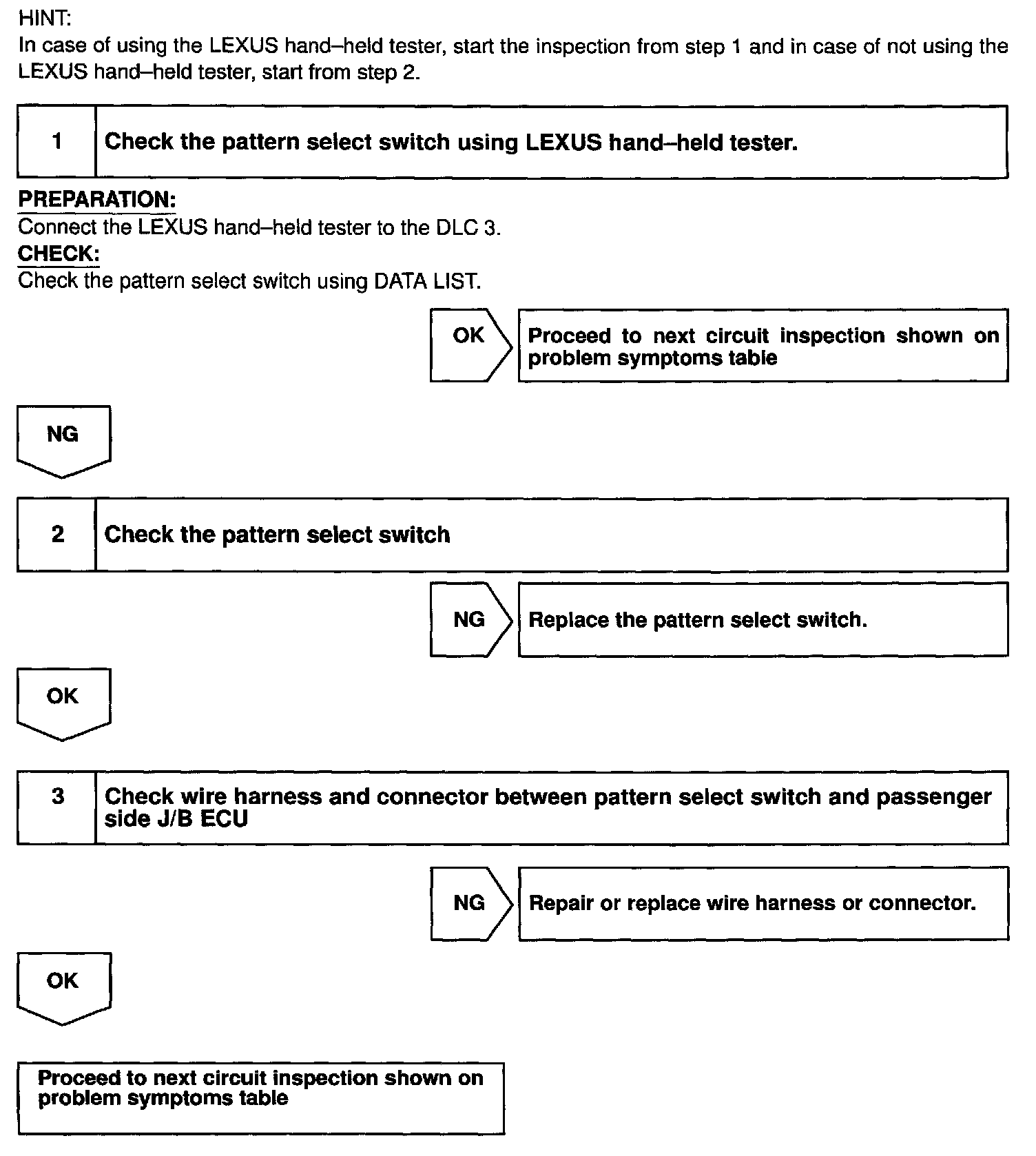

Step 1 - 3:




INSPECTION PROCEDURE
