Brake Pad Sensor Circuit

CIRCUIT DESCRIPTION

Passenger side J/B ECU receives the brake pad sensor signal and sends it to the Combination meter.

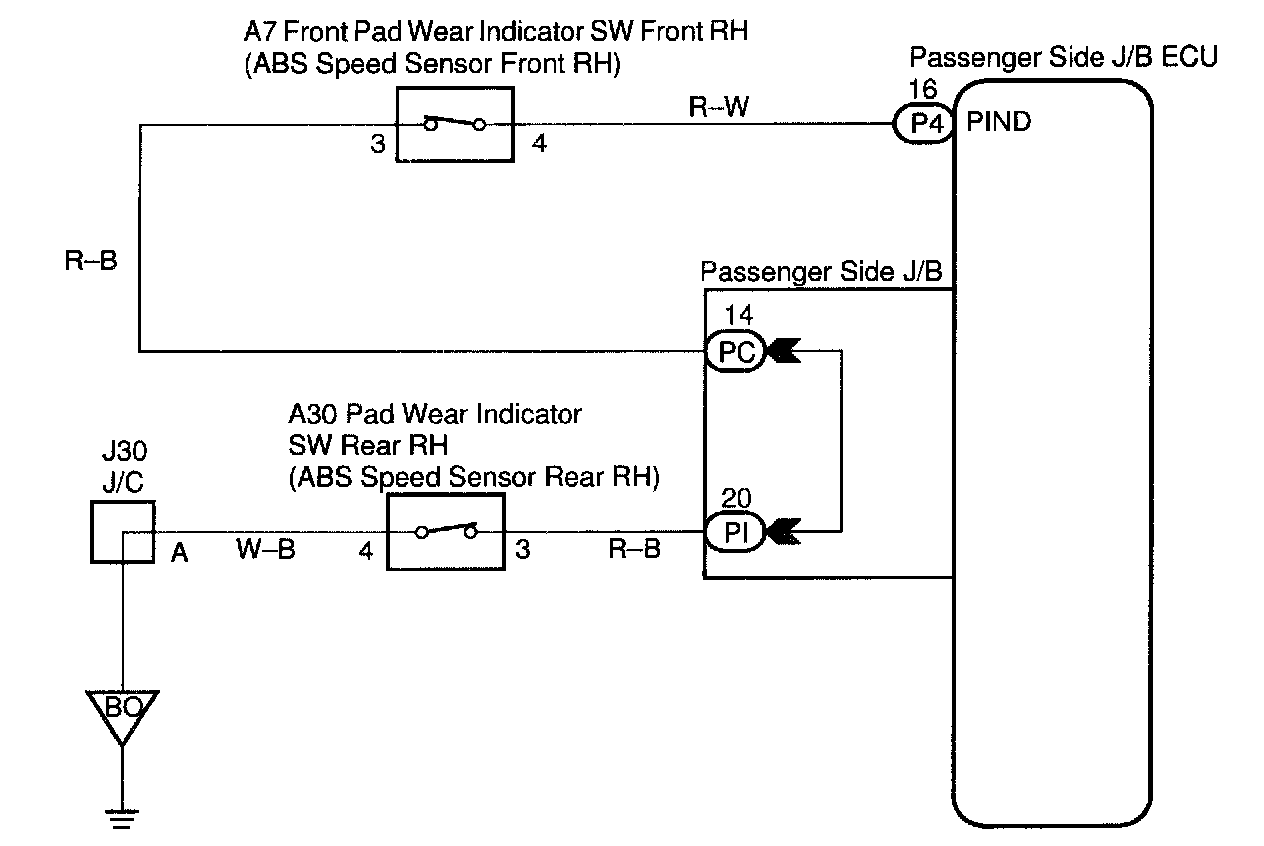

Wiring Diagram:

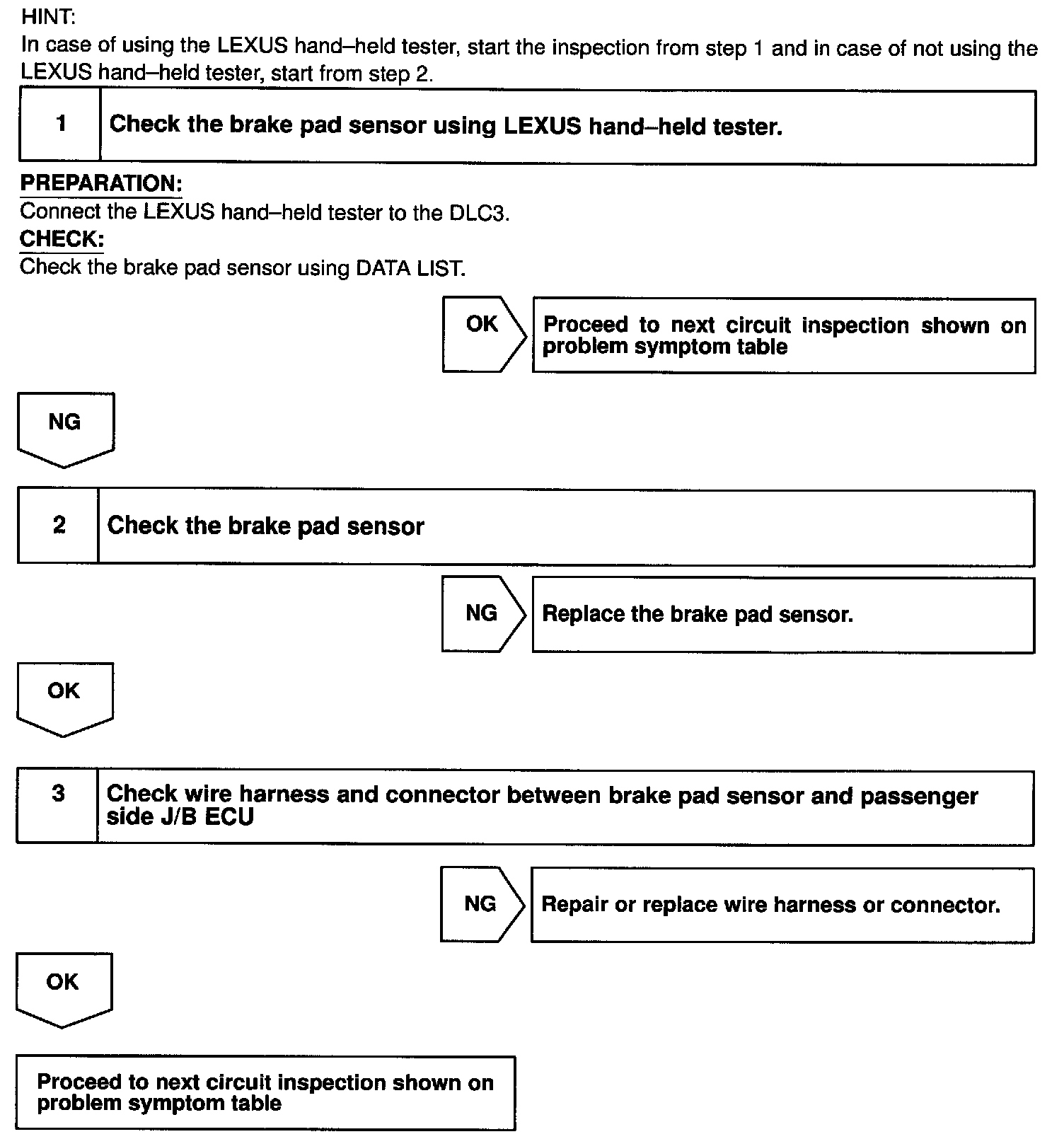

Step 1 - 3:




INSPECTION PROCEDURE
