Shoulder Belt Anchor Motor Circuit

CIRCUIT DESCRIPTION

The Driver side J/B ECU receives the seat belt anchor switch signal from the Driver Door ECU to operate the seat belt anchor motor.

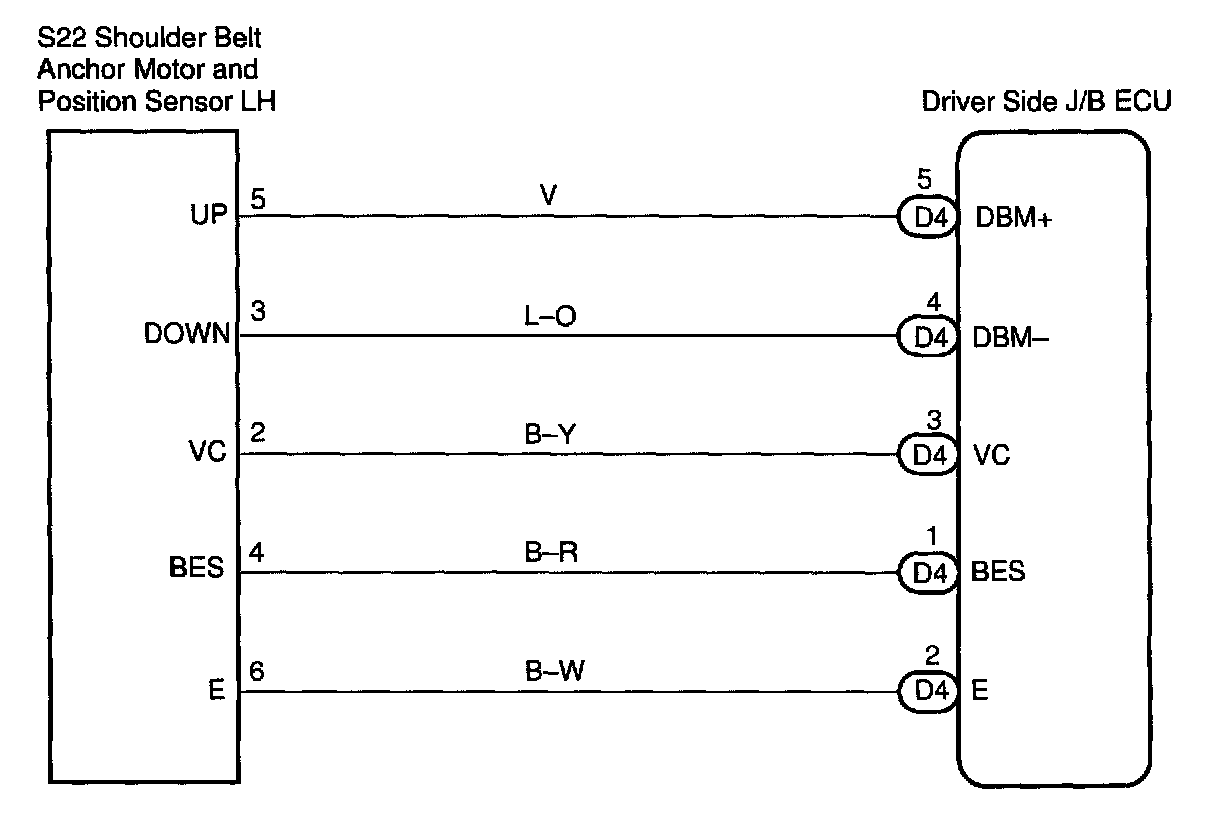

Wiring Diagram:

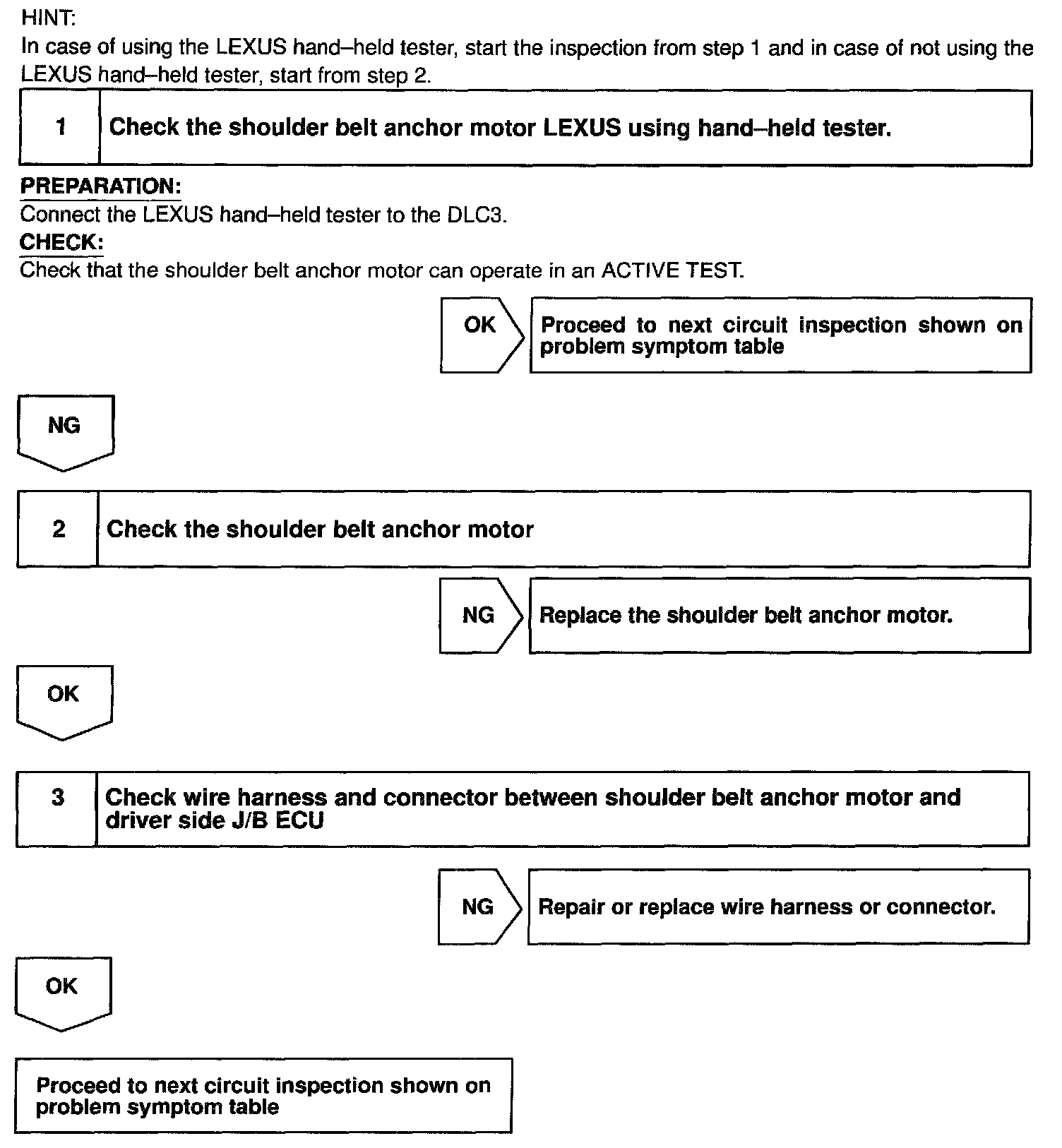

Step 1 - 3:




INSPECTION PROCEDURE
