Rheostat Light Control Volume Circuit

CIRCUIT DESCRIPTION

It outputs light deteriorate instruction such as the self-illuminated display on A/C panel.

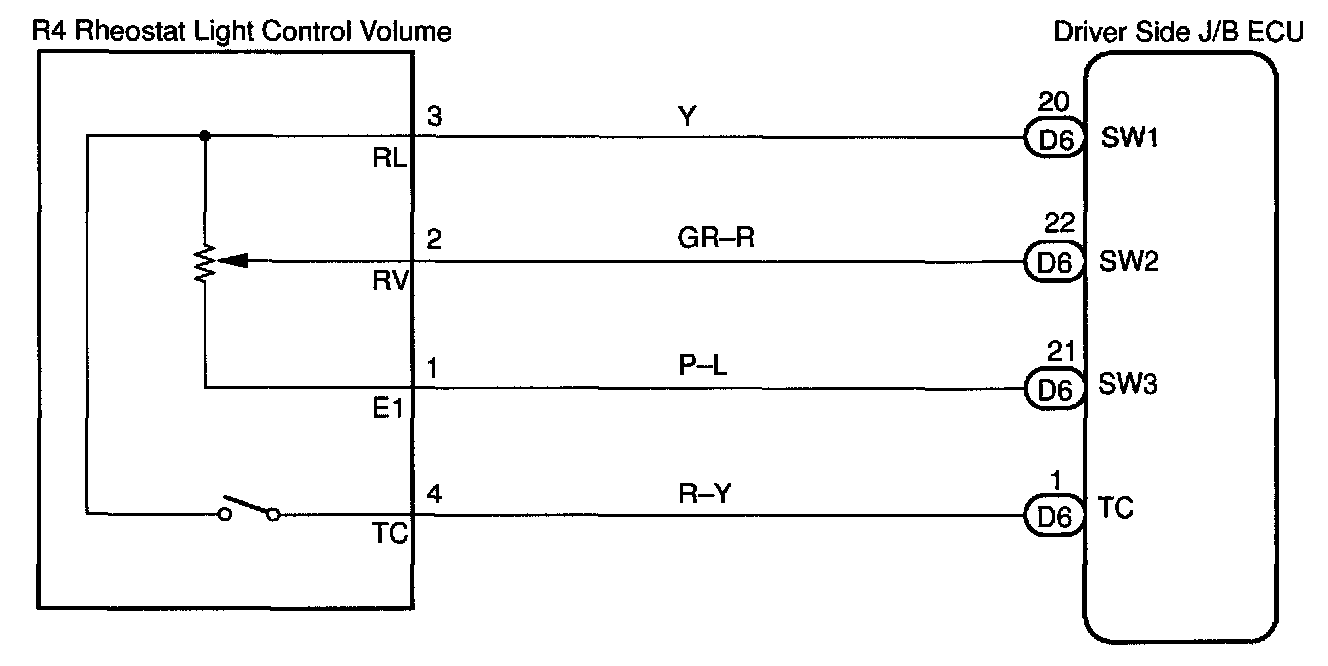

Wiring Diagram:






Step 1 - 3:

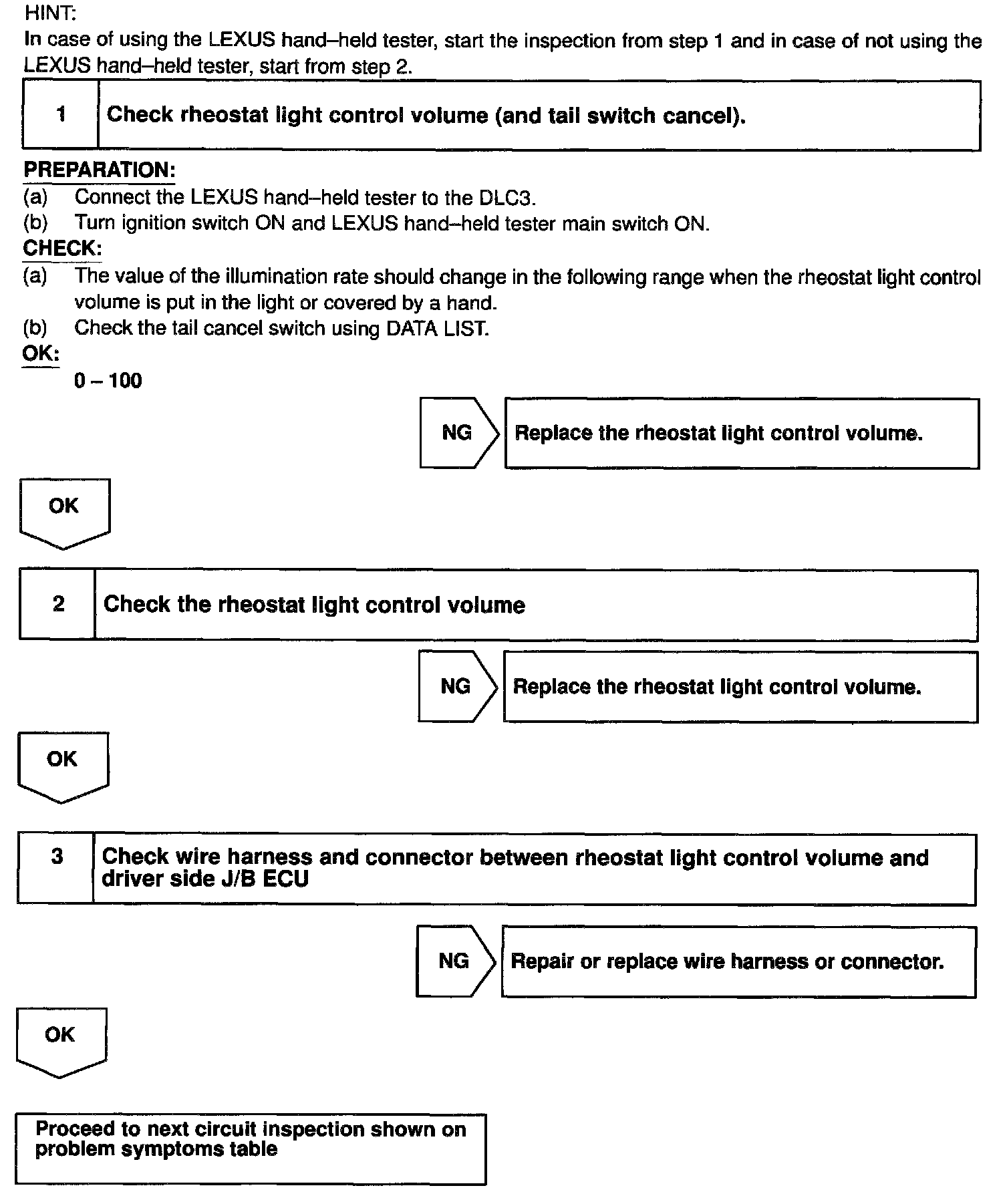

INSPECTION PROCEDURE
