Illumination (Door Courtesy Switch Signal) Circuit

CIRCUIT DESCRIPTION

Receiving the courtesy signal from the door ECU, the Driver side J/B ECU makes the switch illuminations and the meter illumination come on.

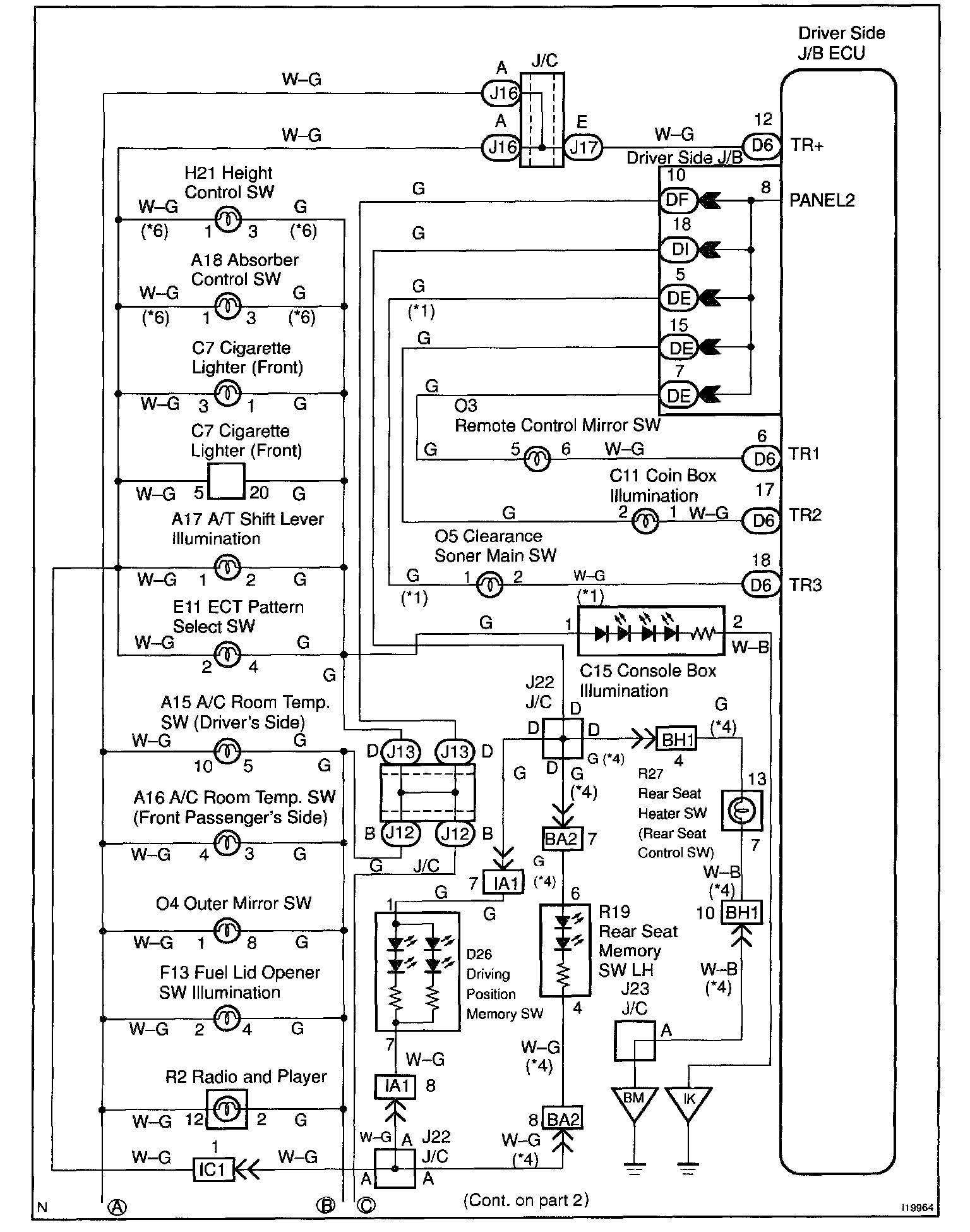

Wiring Diagram Part 1:

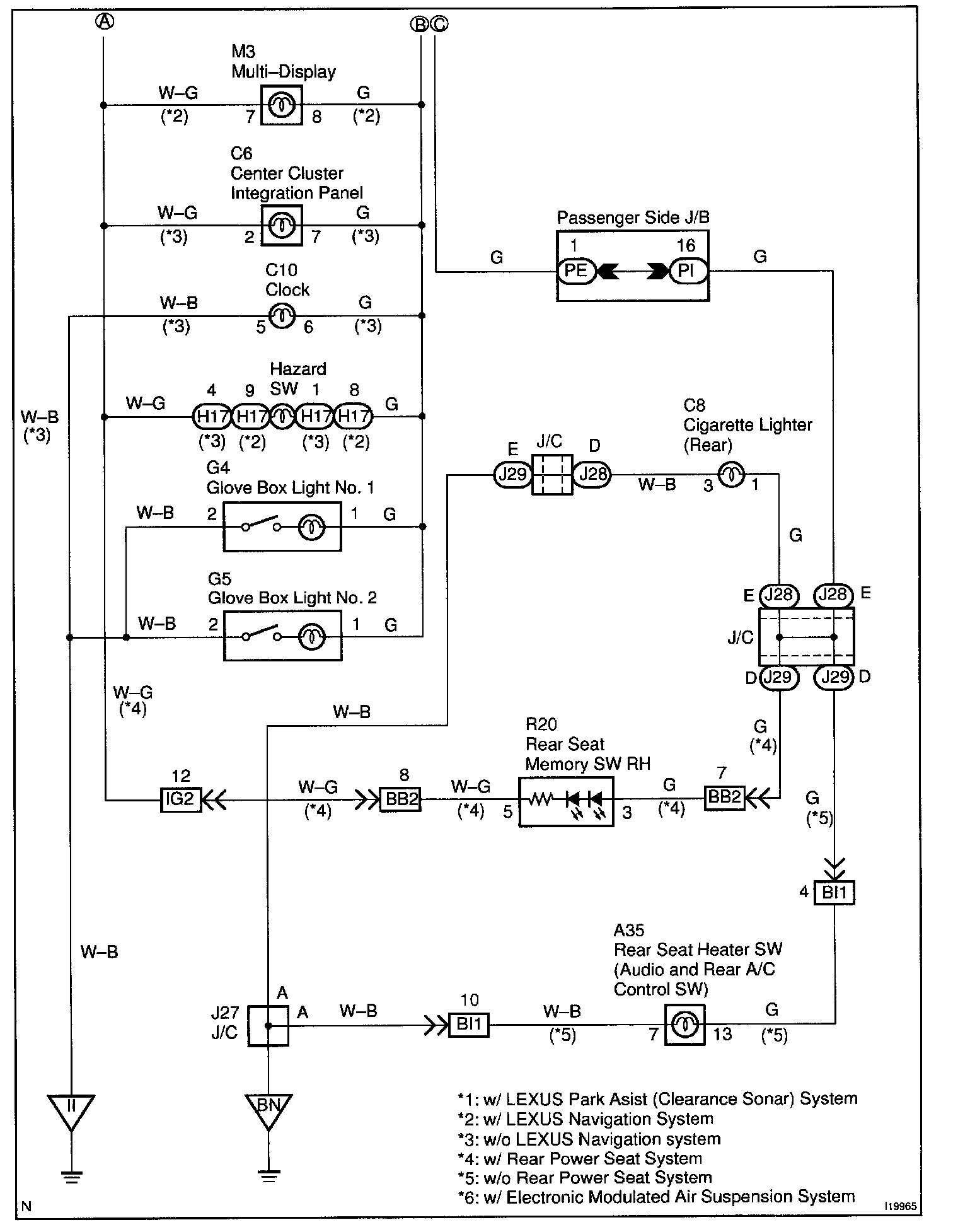

Wiring Diagram Part 2:

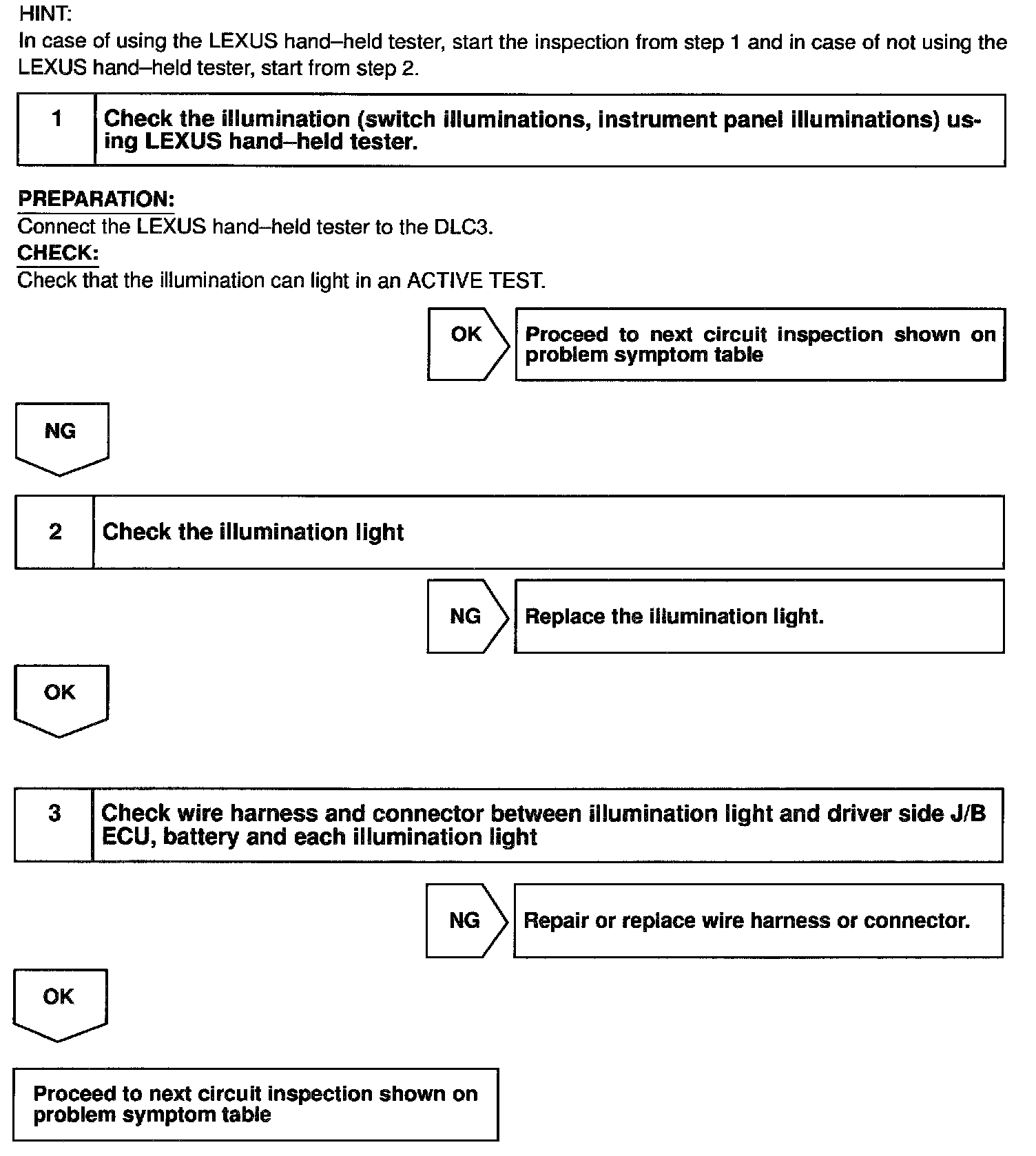

Step 1 - 3:

INSPECTION PROCEDURE
