Driver Buckle Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the driver buckle switch and makes the driver seat warning flash.

Wiring Diagram:

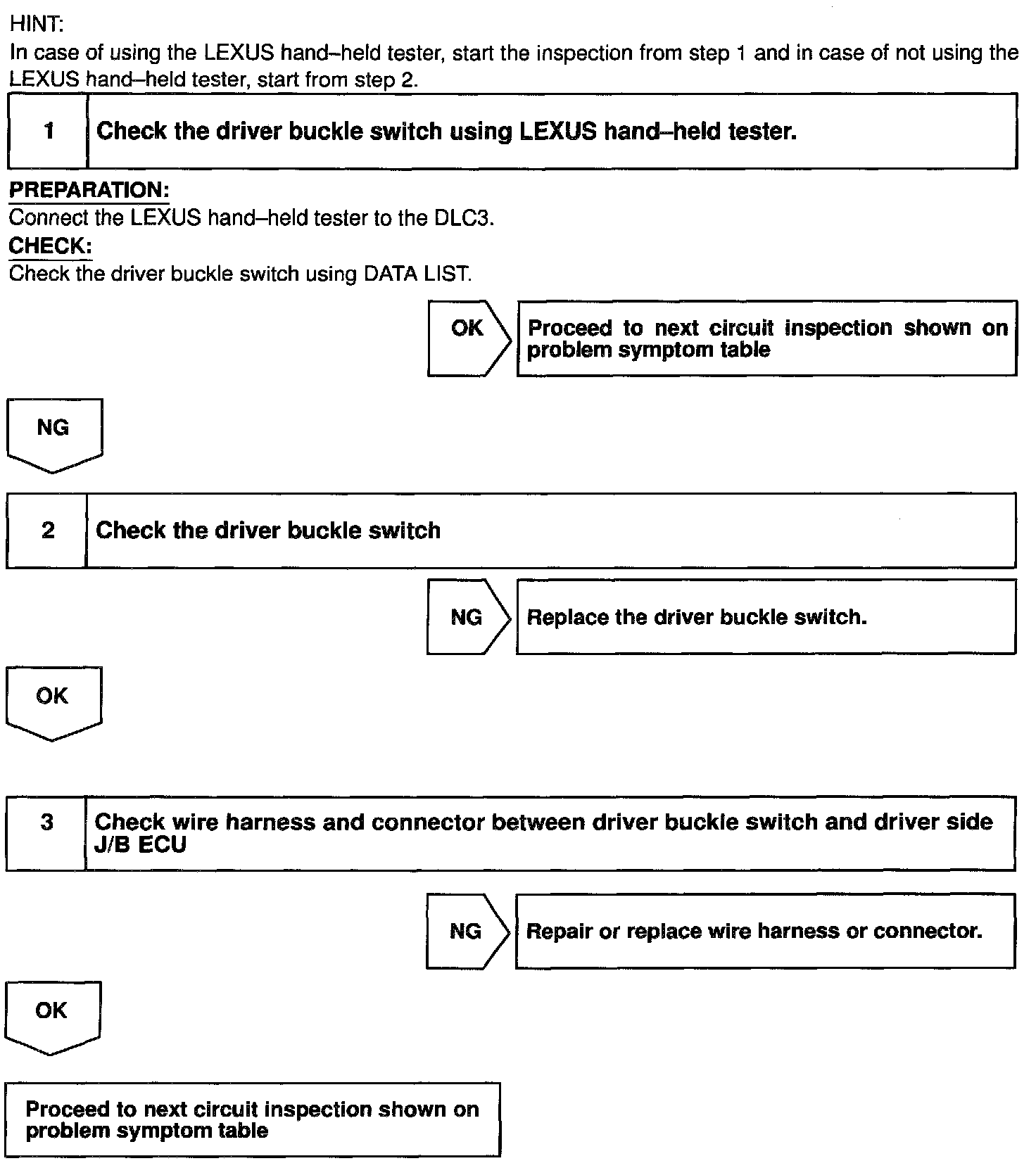

Step 1 - 3:




INSPECTION PROCEDURE
