Shoulder Belt Adjust Switch Circuit

CIRCUIT DESCRIPTION

The driver door ECU is detects the condition of the belt anchor switch.

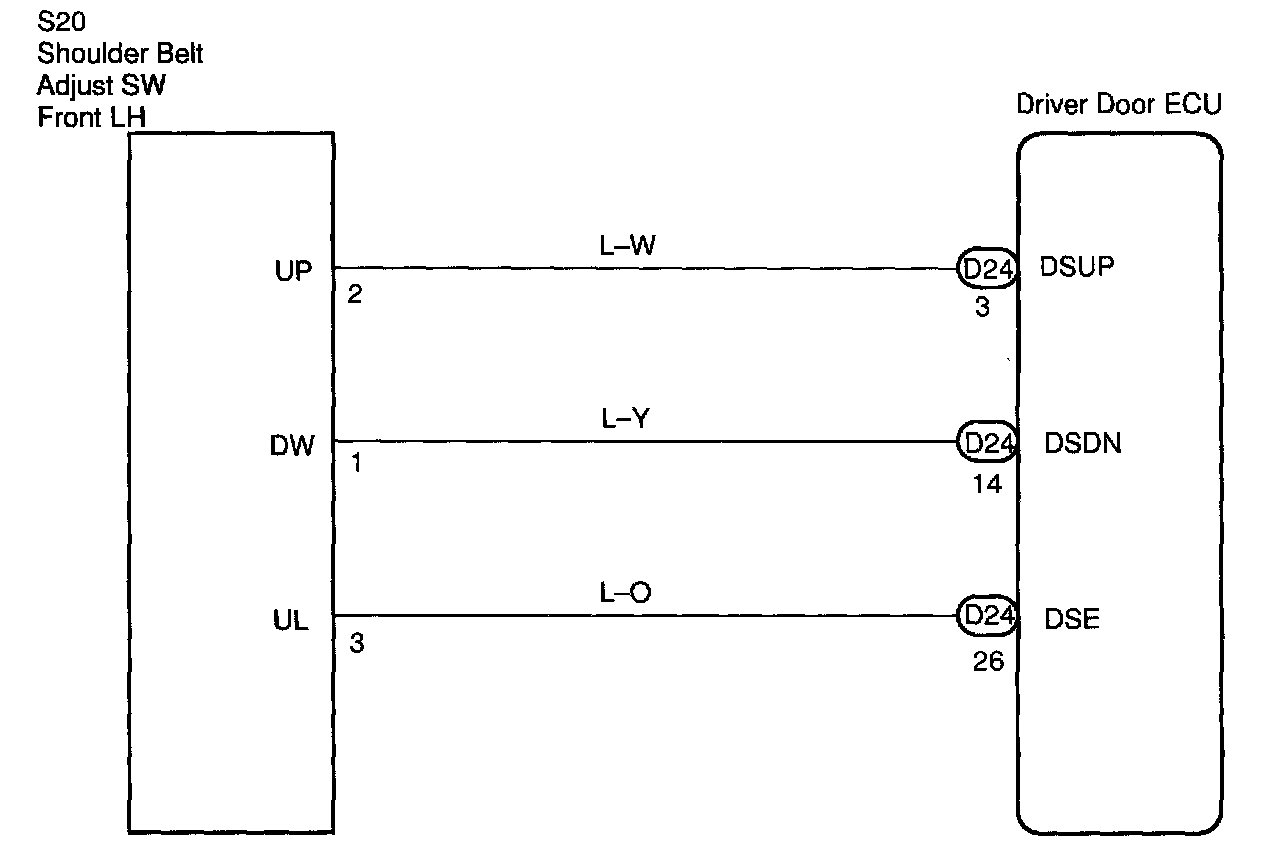

Wiring Diagram:






Step 1 - 3:

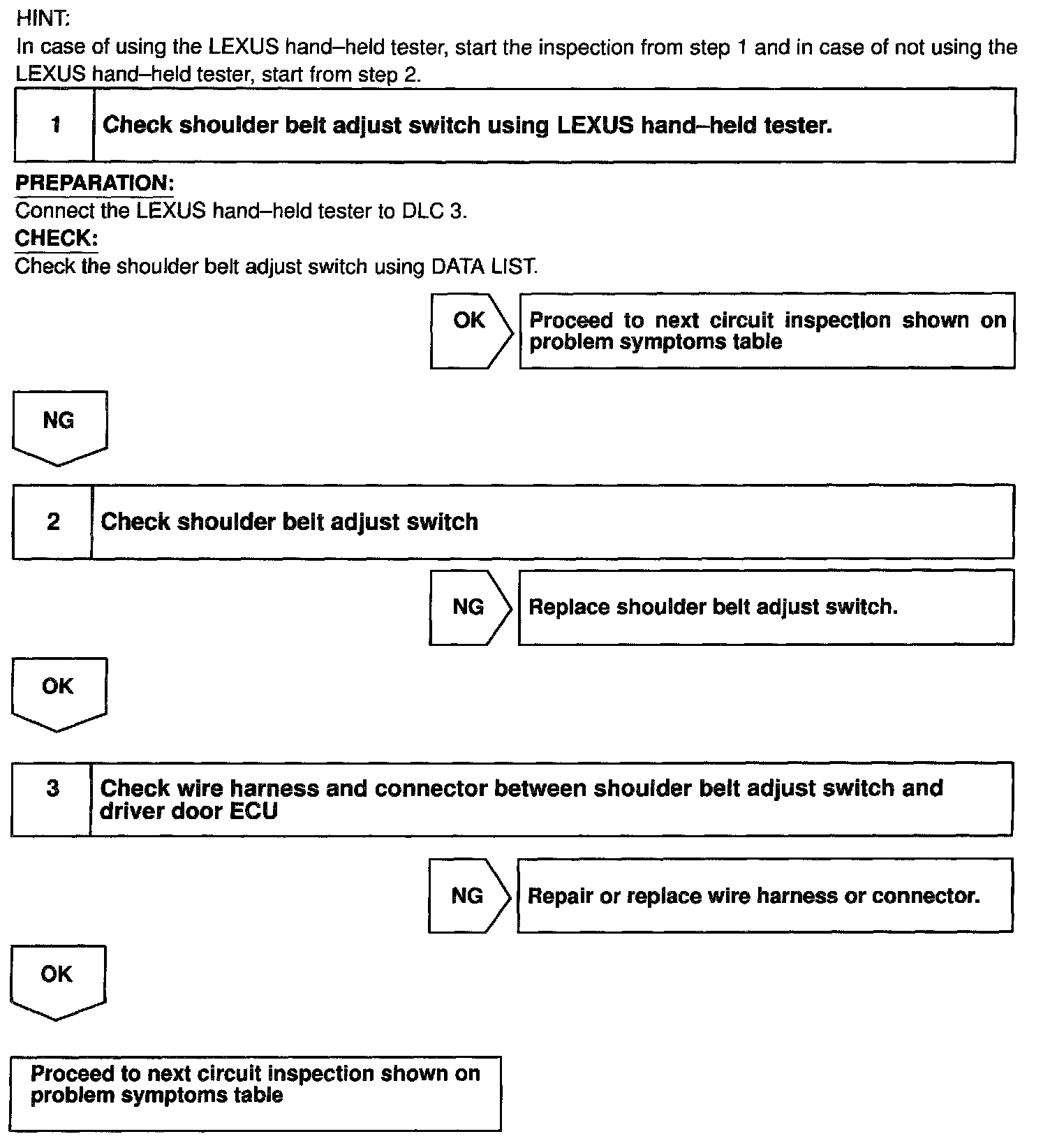

INSPECTION PROCEDURE
