Retract Motor Circuit

CIRCUIT DESCRIPTION




The retract motor is built in the outer mirror assembly.

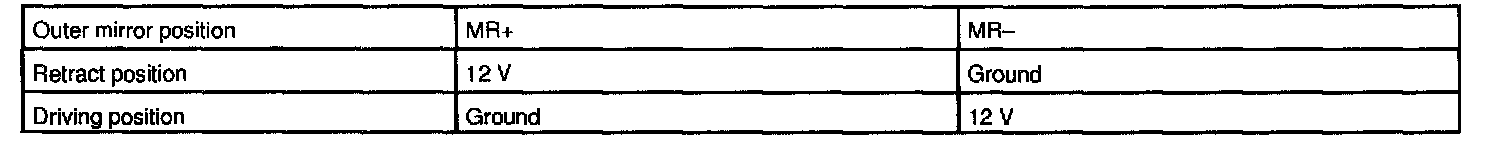

When the battery voltage is supplied to the terminal as follows, the outer mirror moves accordingly.

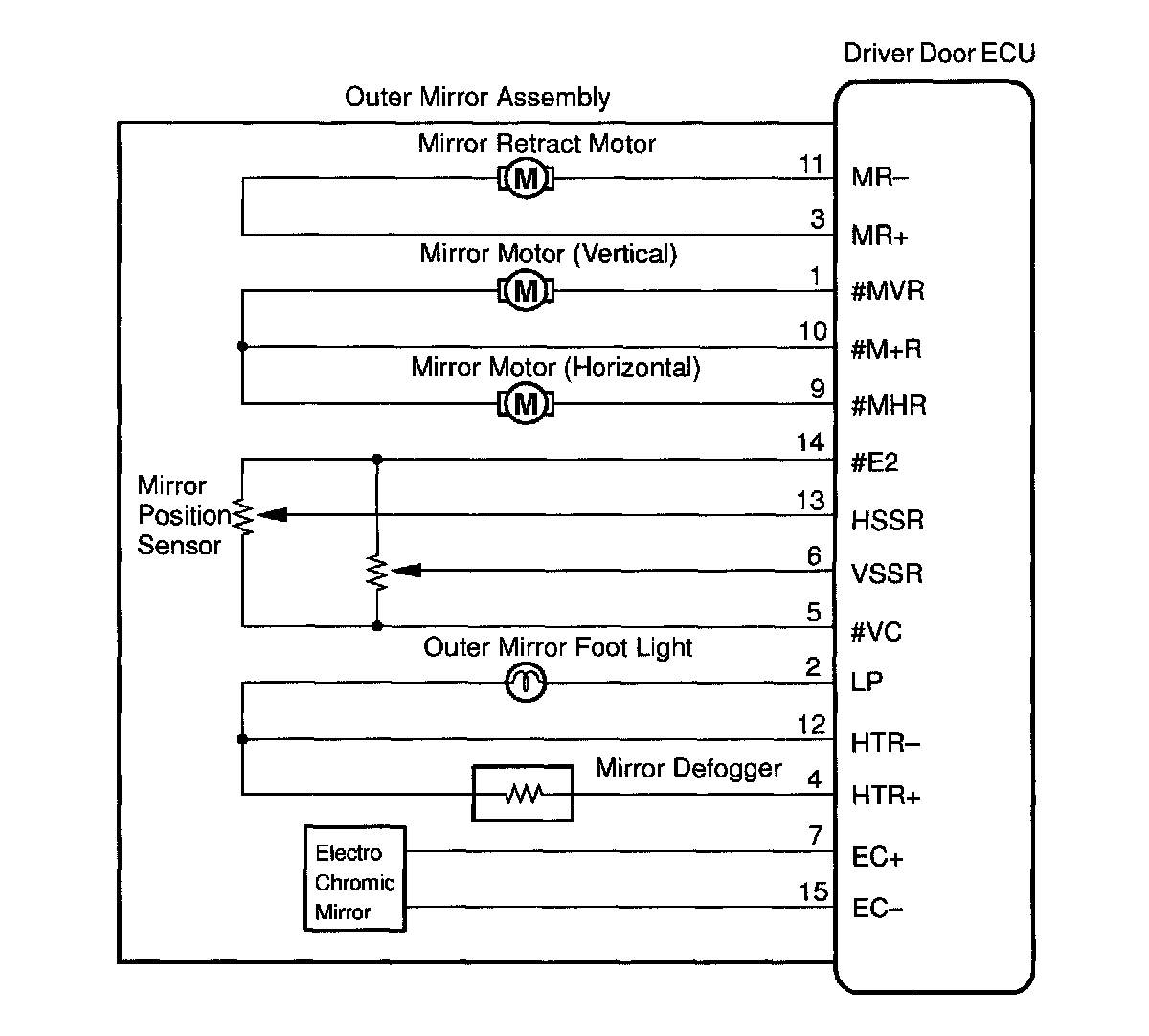

Wiring Diagram:

Step 1 - 3:

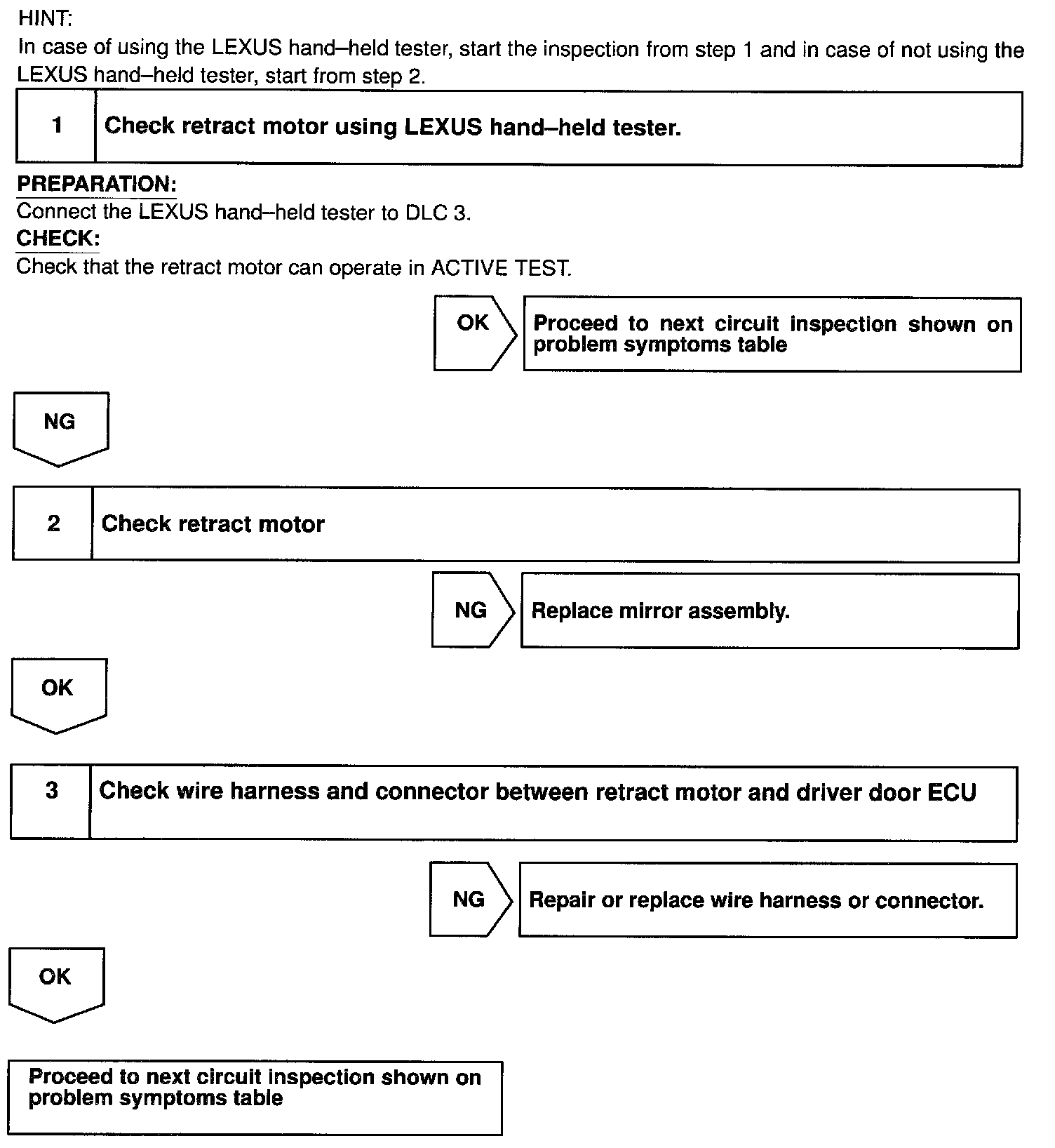

INSPECTION PROCEDURE
