Power Window Motor Circuit

CIRCUIT DESCRIPTION

The Driver Door ECU receives the driver door power window switch signal from the master switch to operate the power window motor.

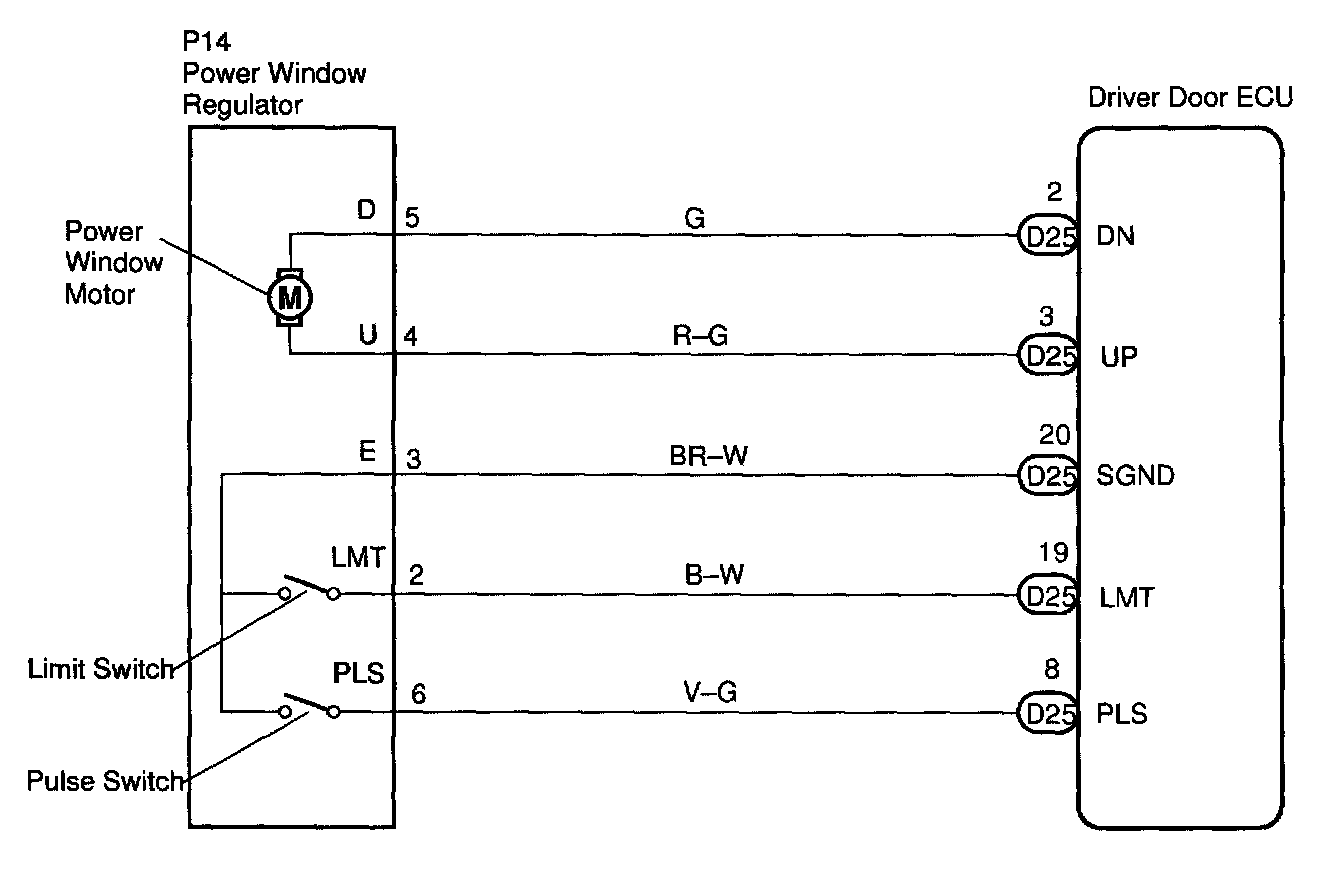

Wiring Diagram:

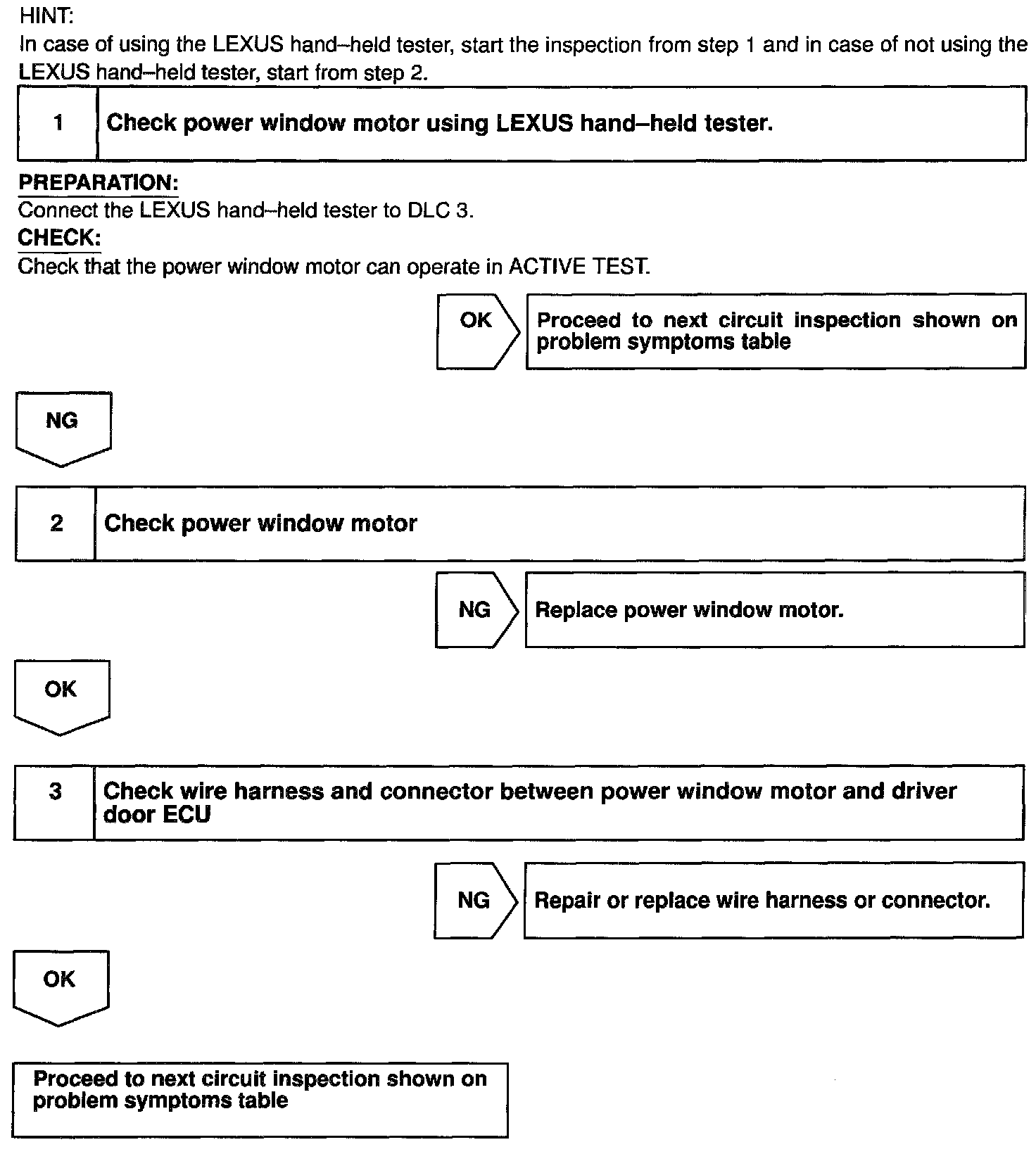

Step 1 - 3:




INSPECTION PROCEDURE
