Outer Foot Light Circuit

CIRCUIT DESCRIPTION




The outer foot light is built in the outer mirror assembly.

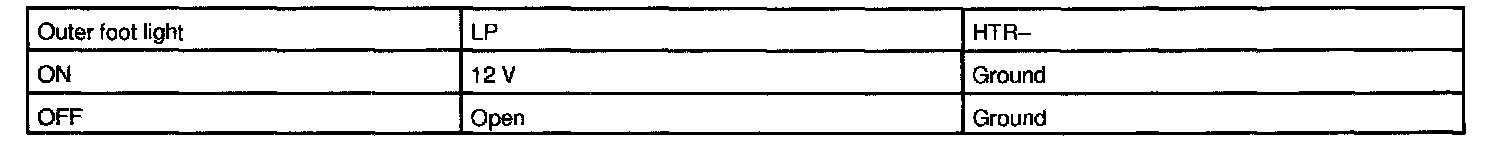

When the battery voltage is supplied to the terminal as shown, the outer foot light functions accordingly.

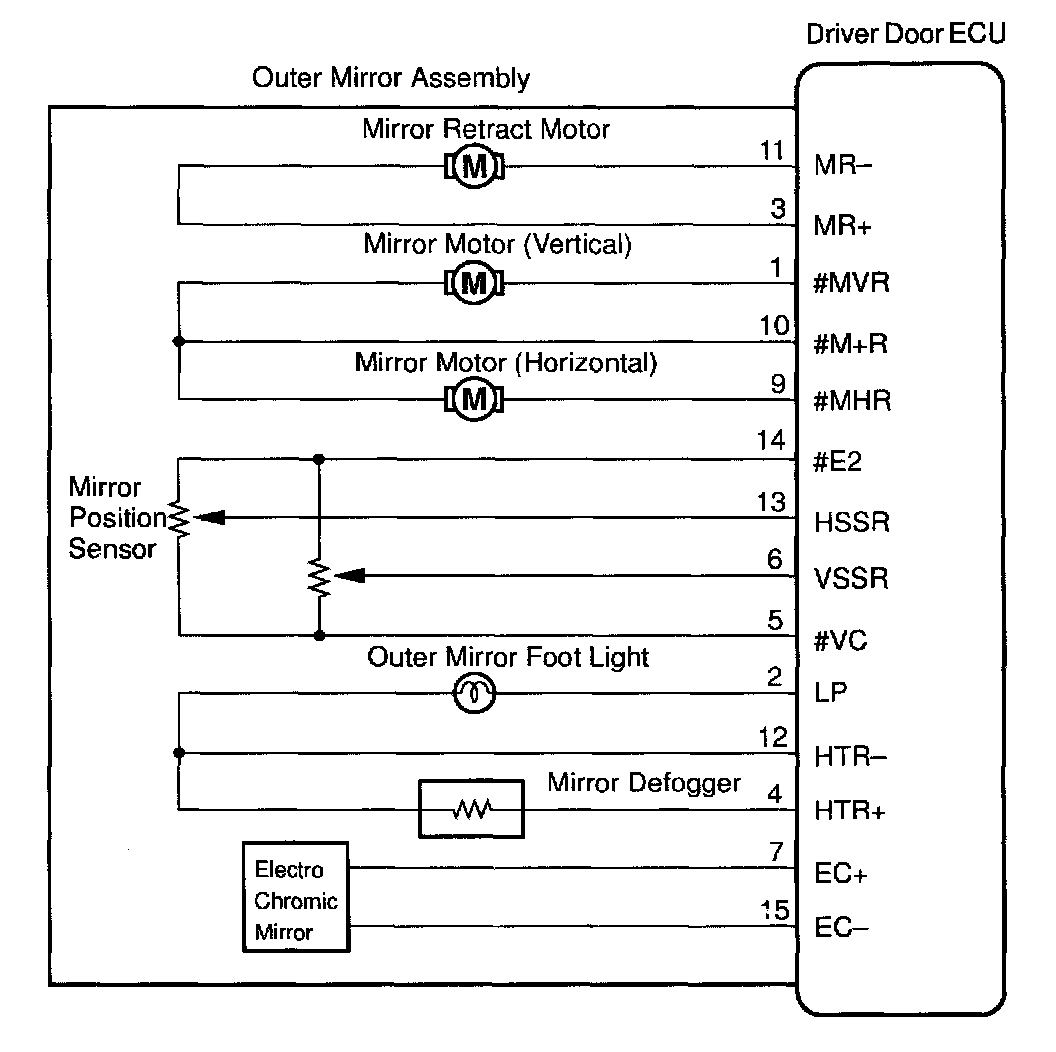

Wiring Diagram:

Step 1 - 3:

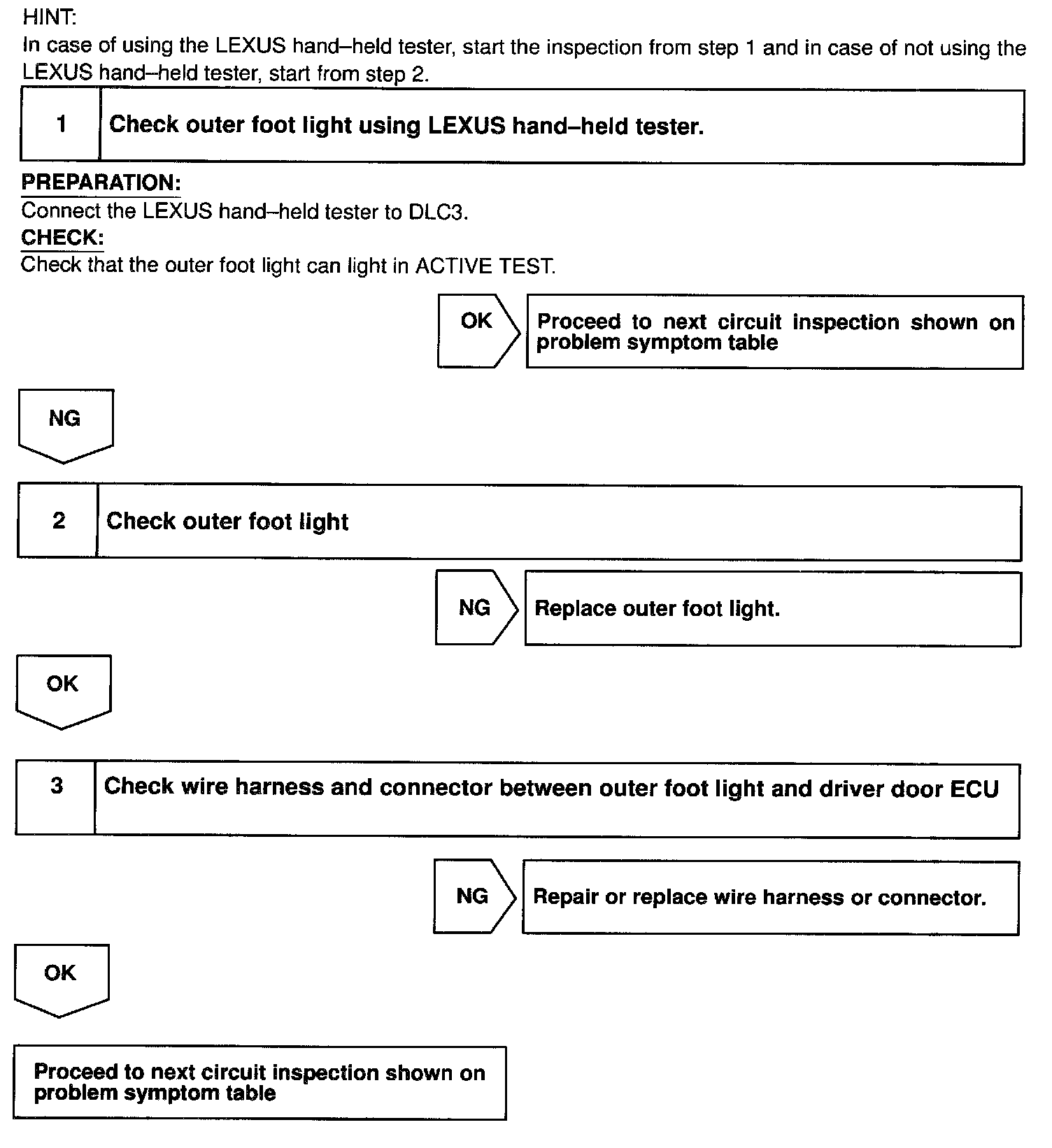

INSPECTION PROCEDURE
