Tachometer

CIRCUIT DESCRIPTION

The combination meter is connected to ECM with the multiplex communication circuit.

It receives the igniter signal from ECM to operate the tachometer.

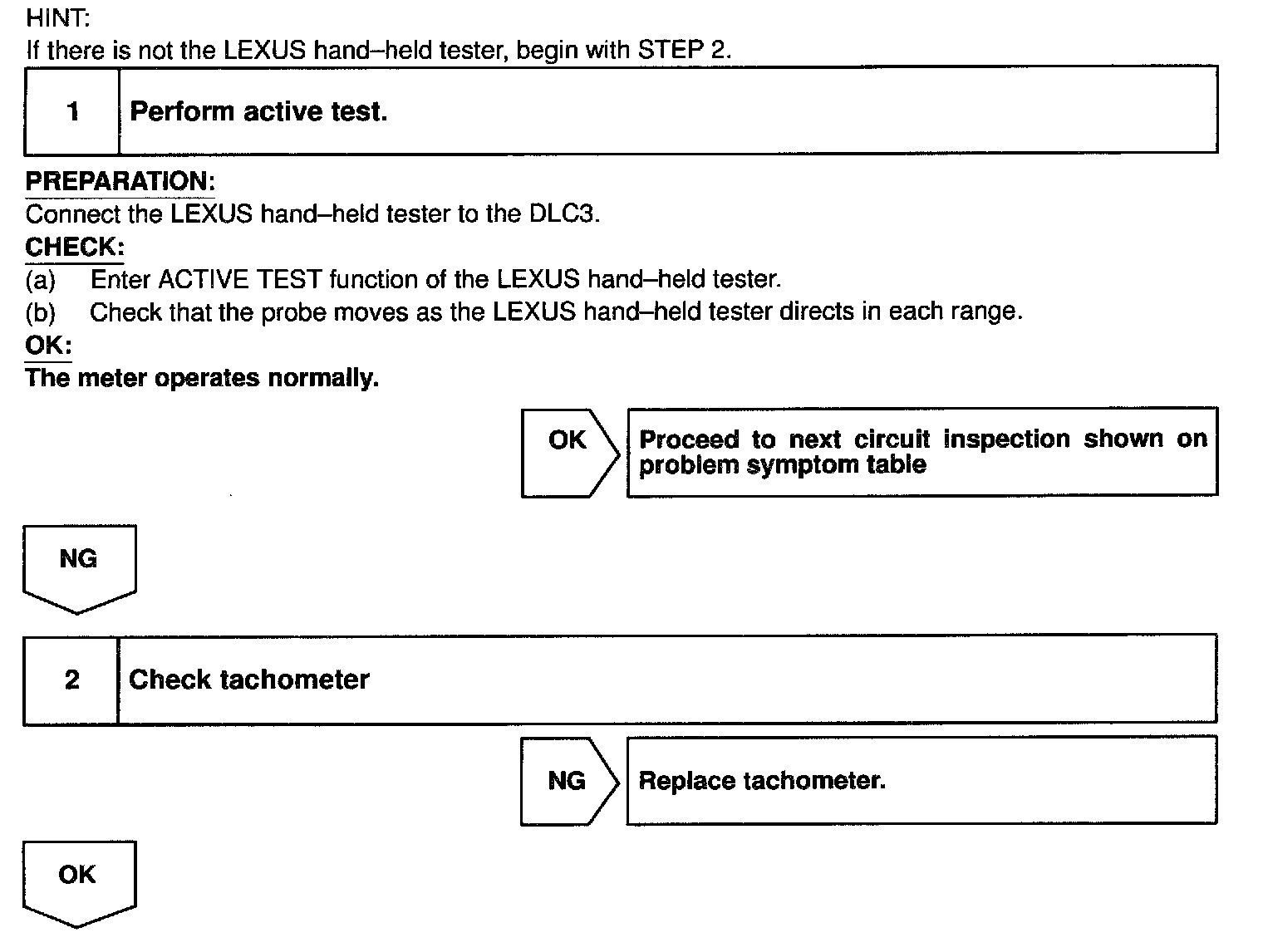

Step 1 - 2:

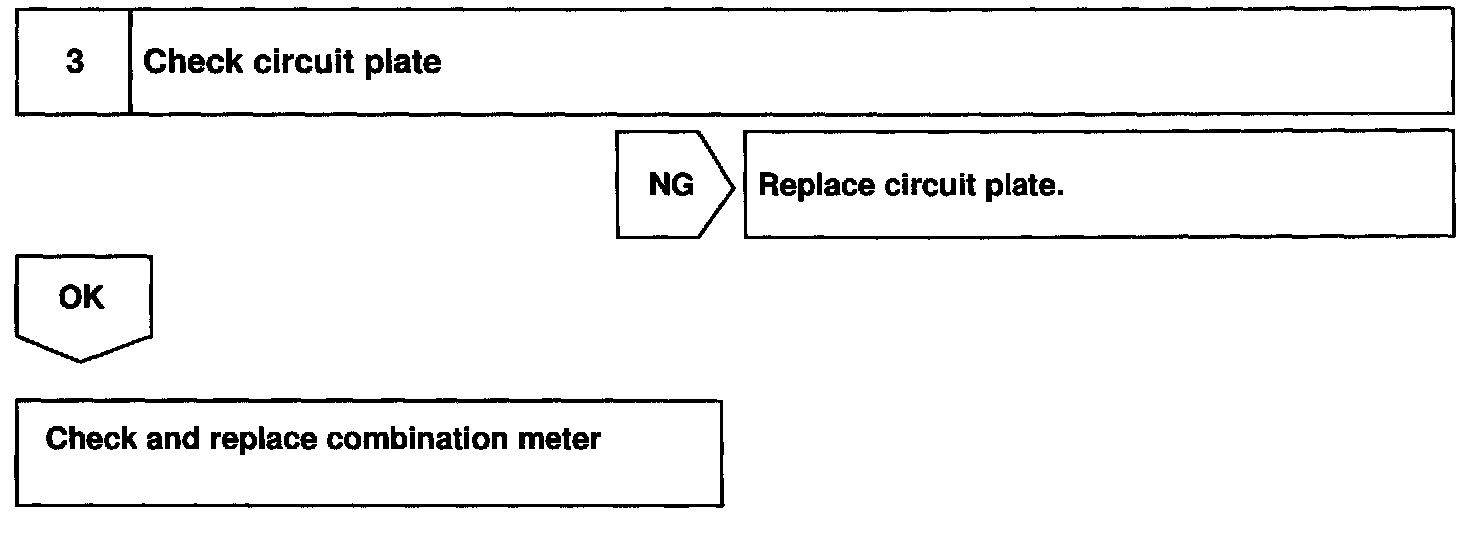

Step 3:

INSPECTION PROCEDURE
