Passenger Side Junction Block (Body No. 3) Control System
Passenger Side Junction Block (Body No. 3) Control System

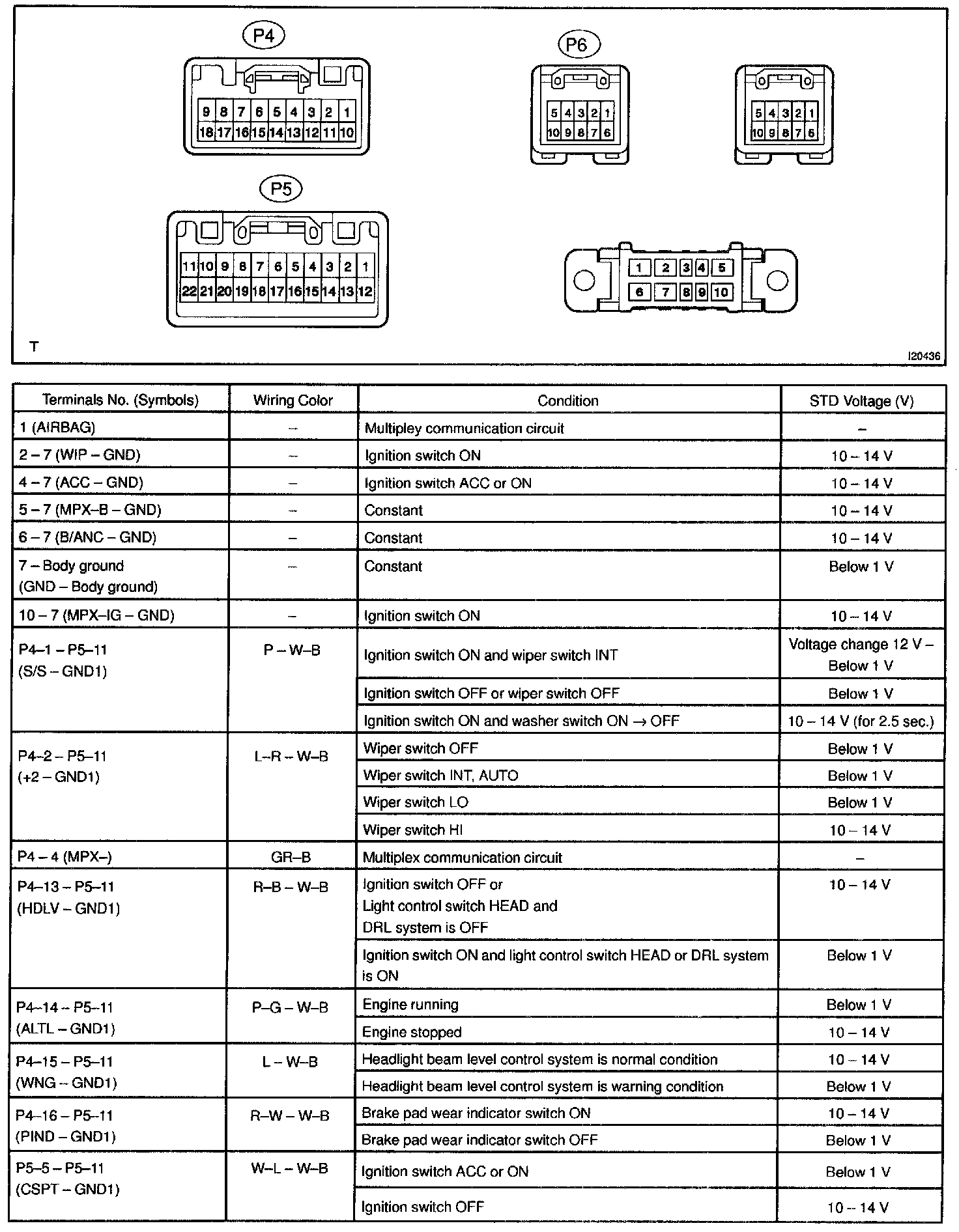

Terminals Of ECU/Pinouts Part 1:

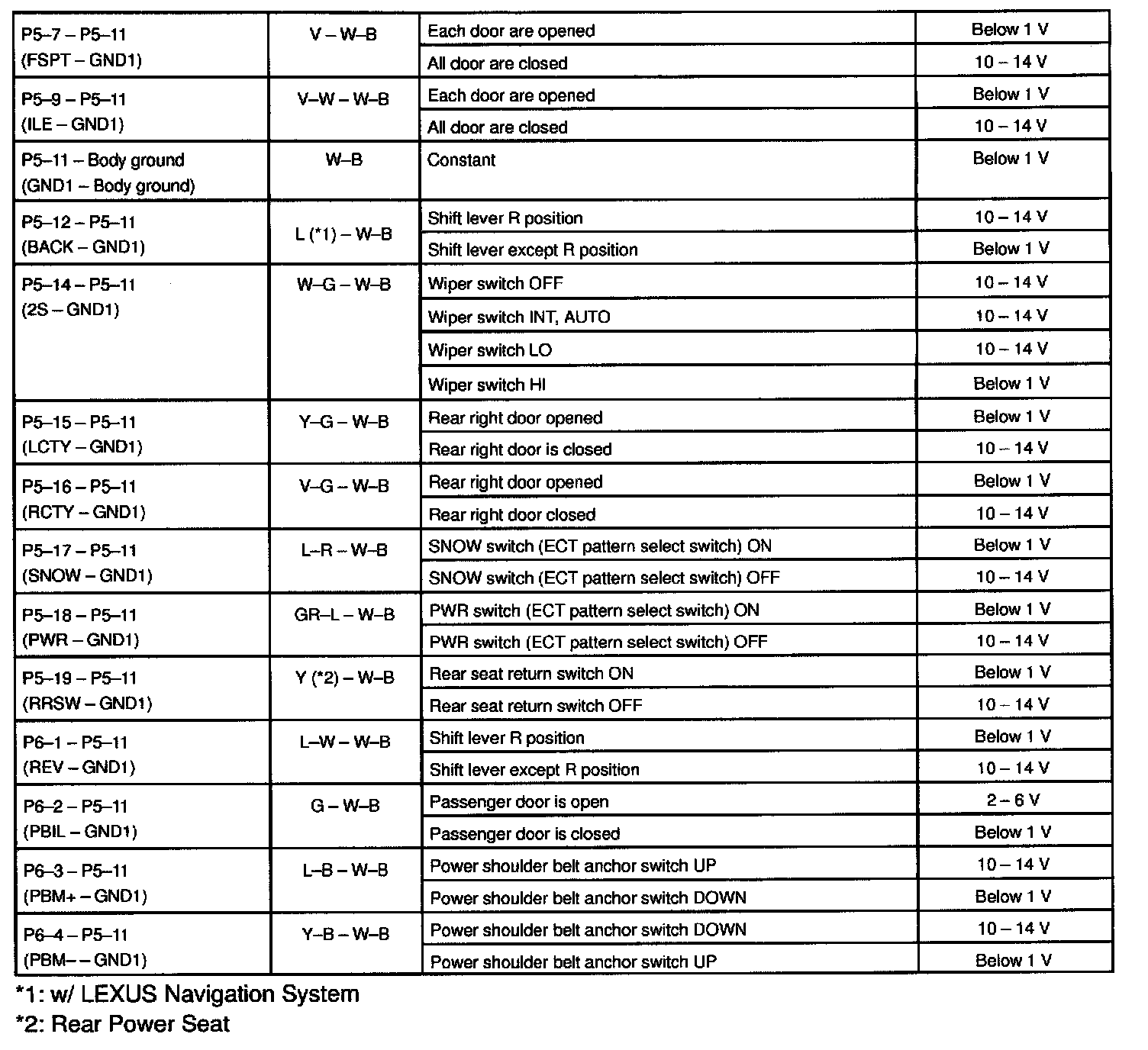

Pinouts Part 2:
