Stop Light Circuit

CIRCUIT DESCRIPTION

Receiving the brake pedal signal from the luggage room J/B ECU makes the stop light come on.

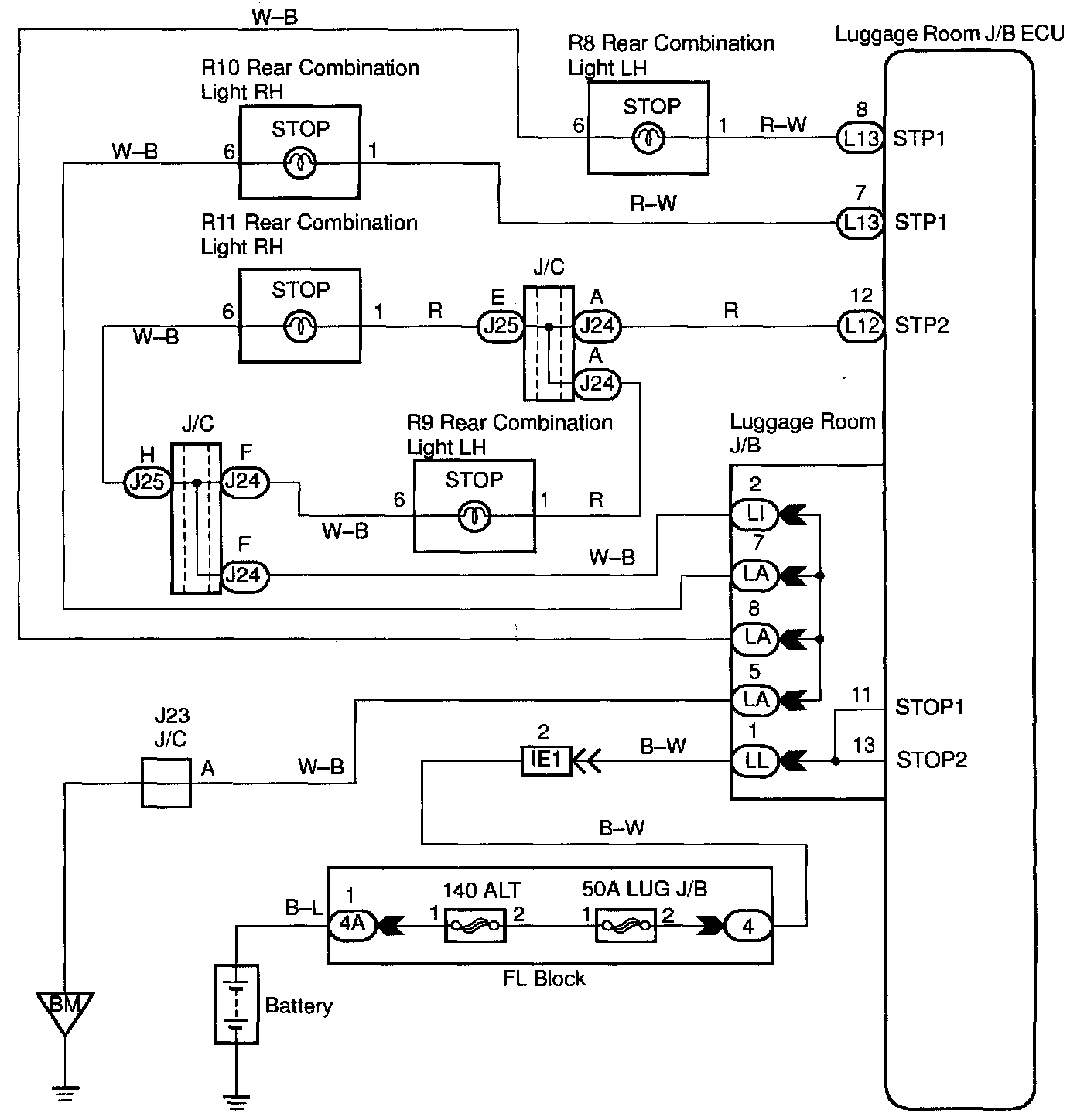

Wiring Diagram:

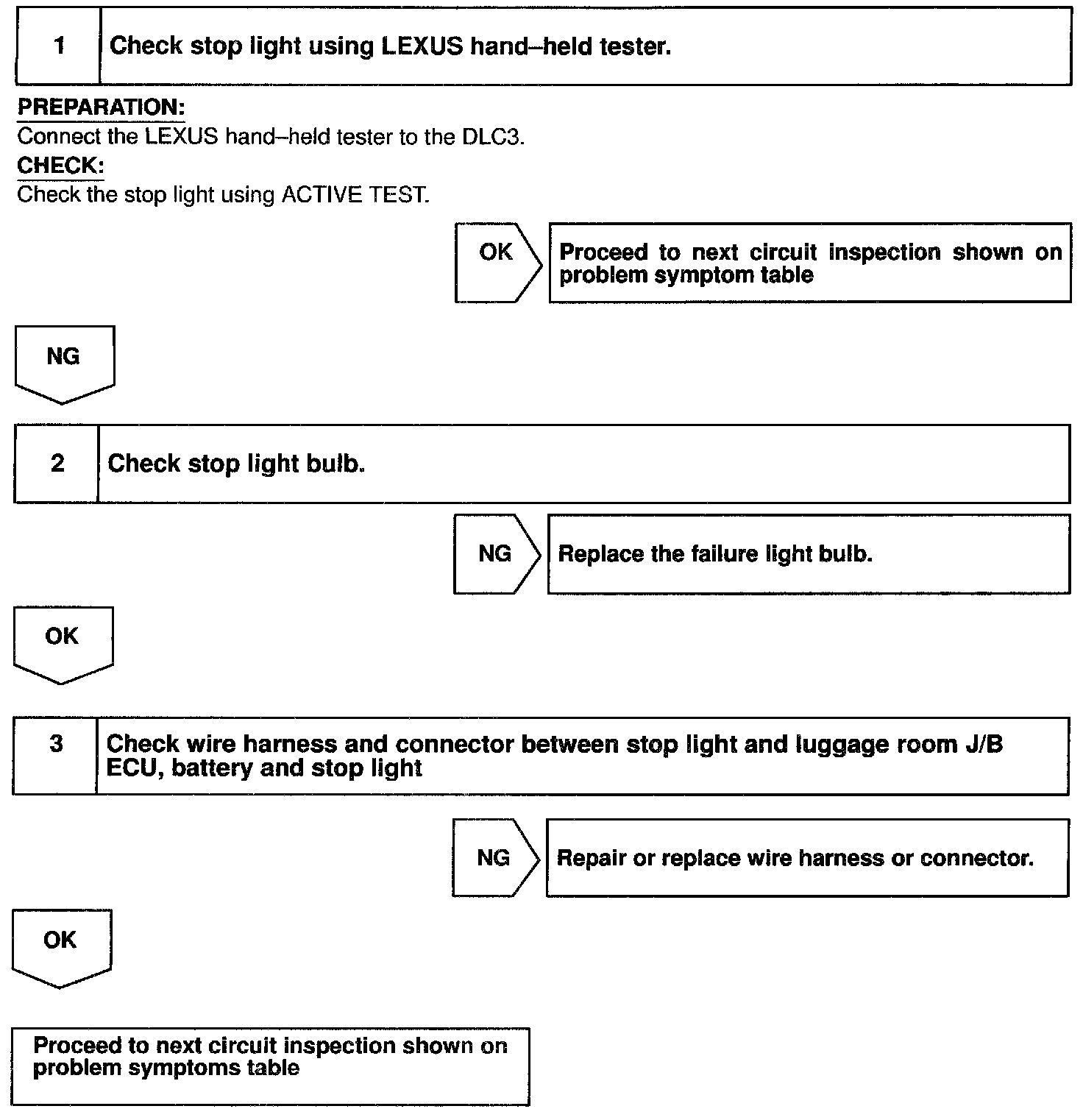

Step 1 - 3:




INSPECTION PROCEDURE
