Licence Plate Light Circuit
CIRCUIT DESCRIPTIONReceiving the light control switch TAIL signal from the luggage room J/B ECU makes the licence light come on.

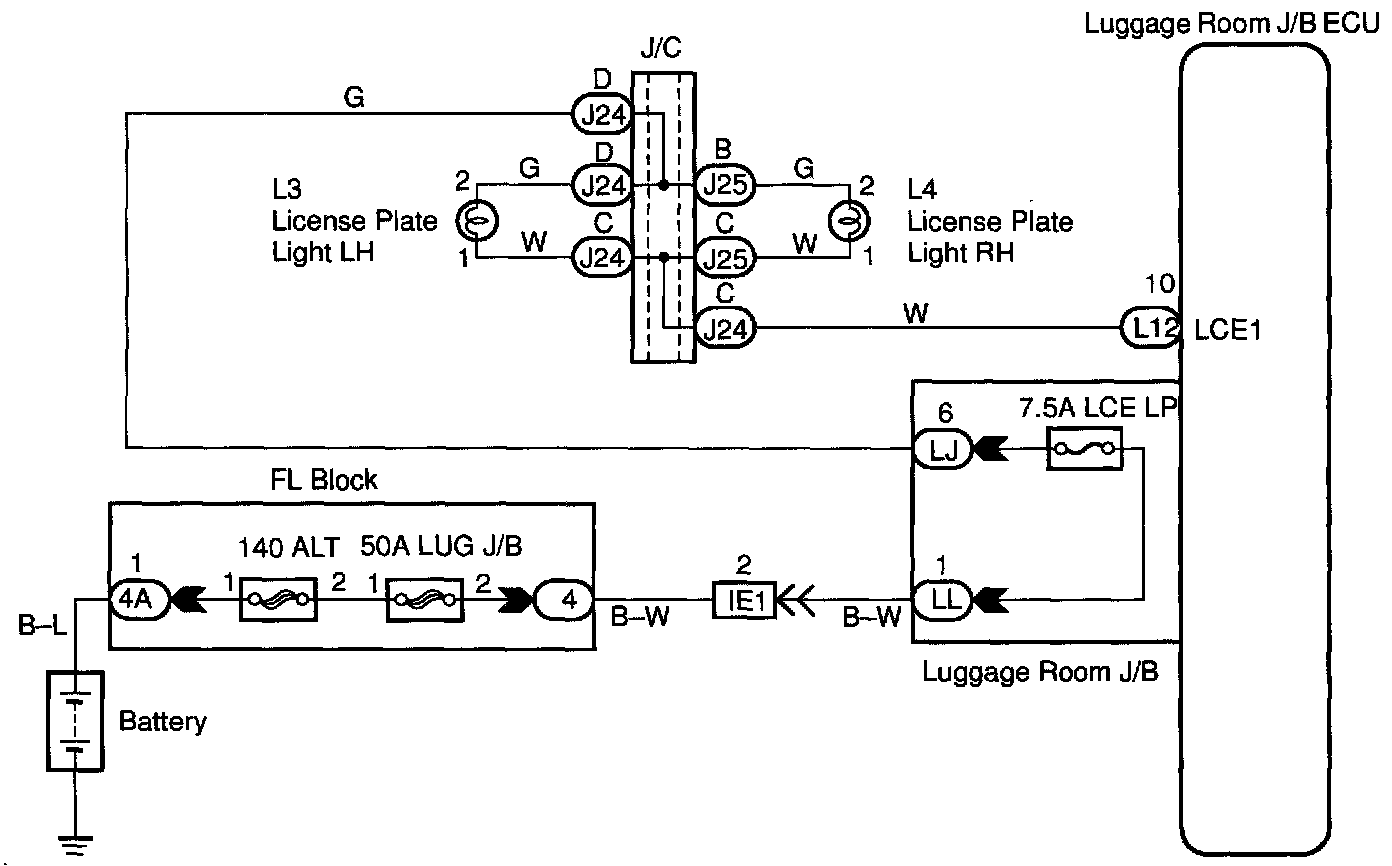

Wiring Diagram:

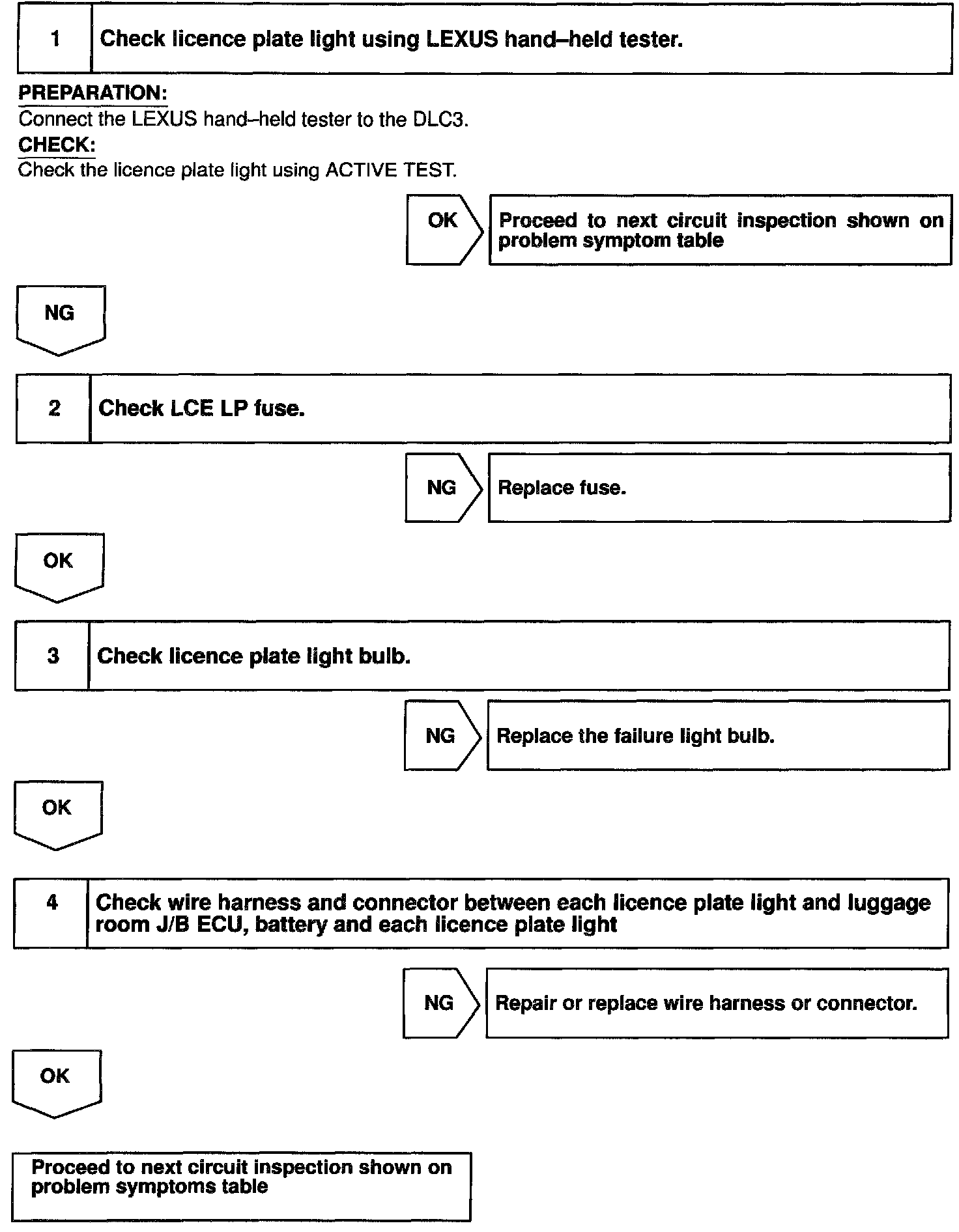

Step 1 - 4:
INSPECTION PROCEDURE
Receiving the light control switch TAIL signal from the luggage room J/B ECU makes the licence light come on.
INSPECTION PROCEDURE
