Back-Up Light Circuit
CIRCUIT DESCRIPTIONReceiving the PNP switch R position signal from the luggage room J/B ECU makes the back-up light come on.

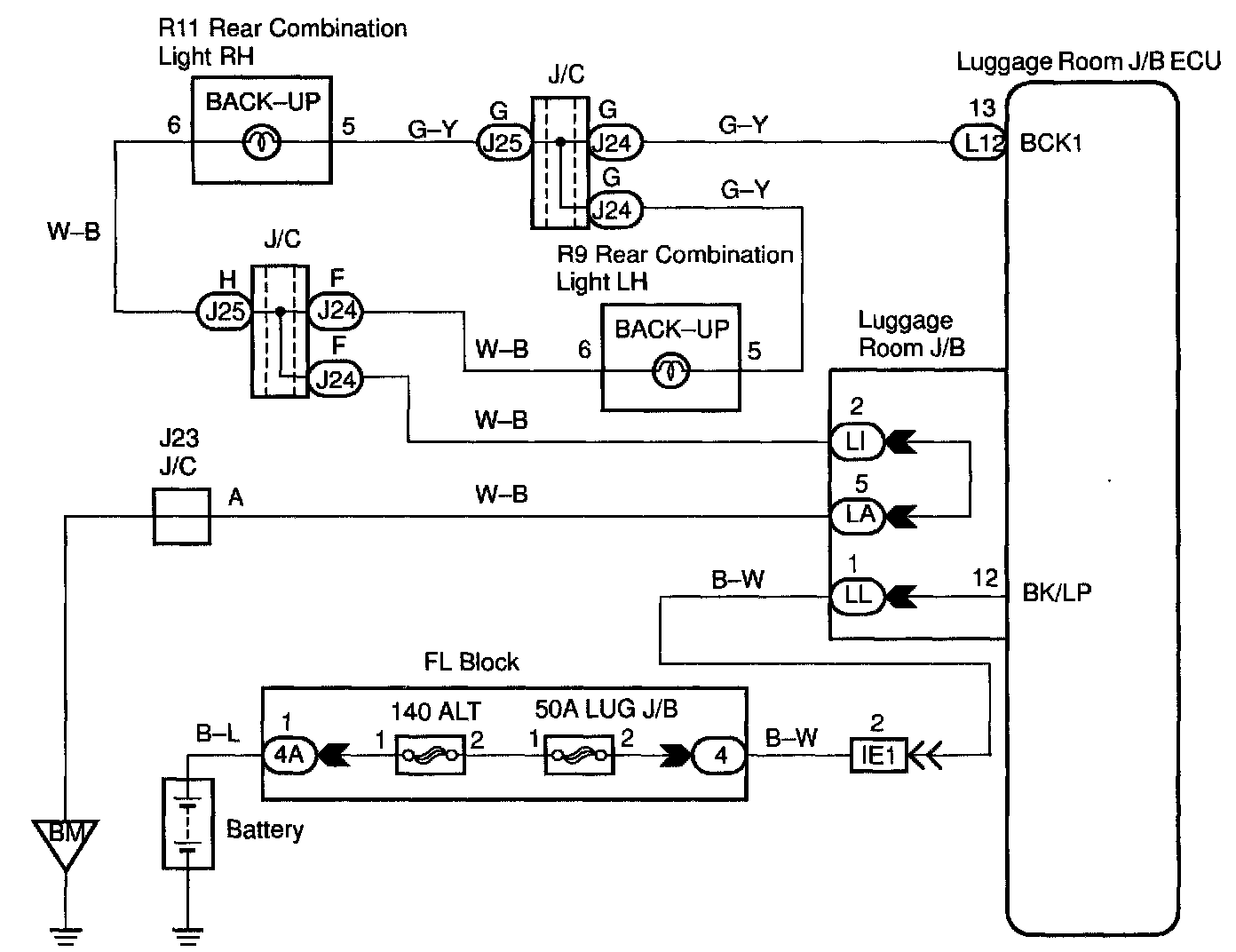

Wiring Diagram:
Step 1 - 3:

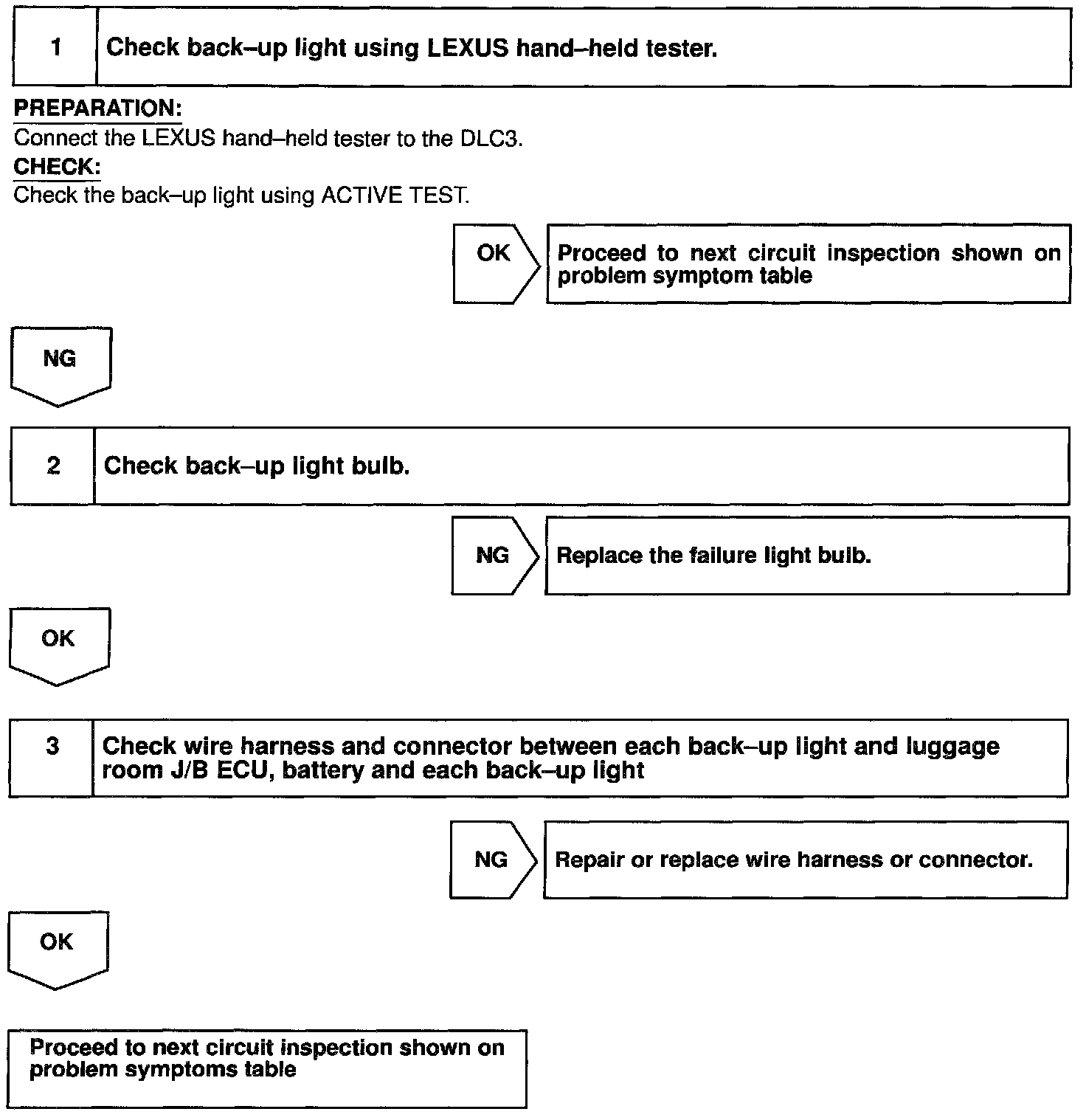

INSPECTION PROCEDURE
Receiving the PNP switch R position signal from the luggage room J/B ECU makes the back-up light come on.
INSPECTION PROCEDURE
