Mirror Retract Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the mirror retract switch.

The operating condition of the mirror retract switch is input by the driver side J/B ECU and the input signals are sent to the driver door ECU or the passenger door ECU.

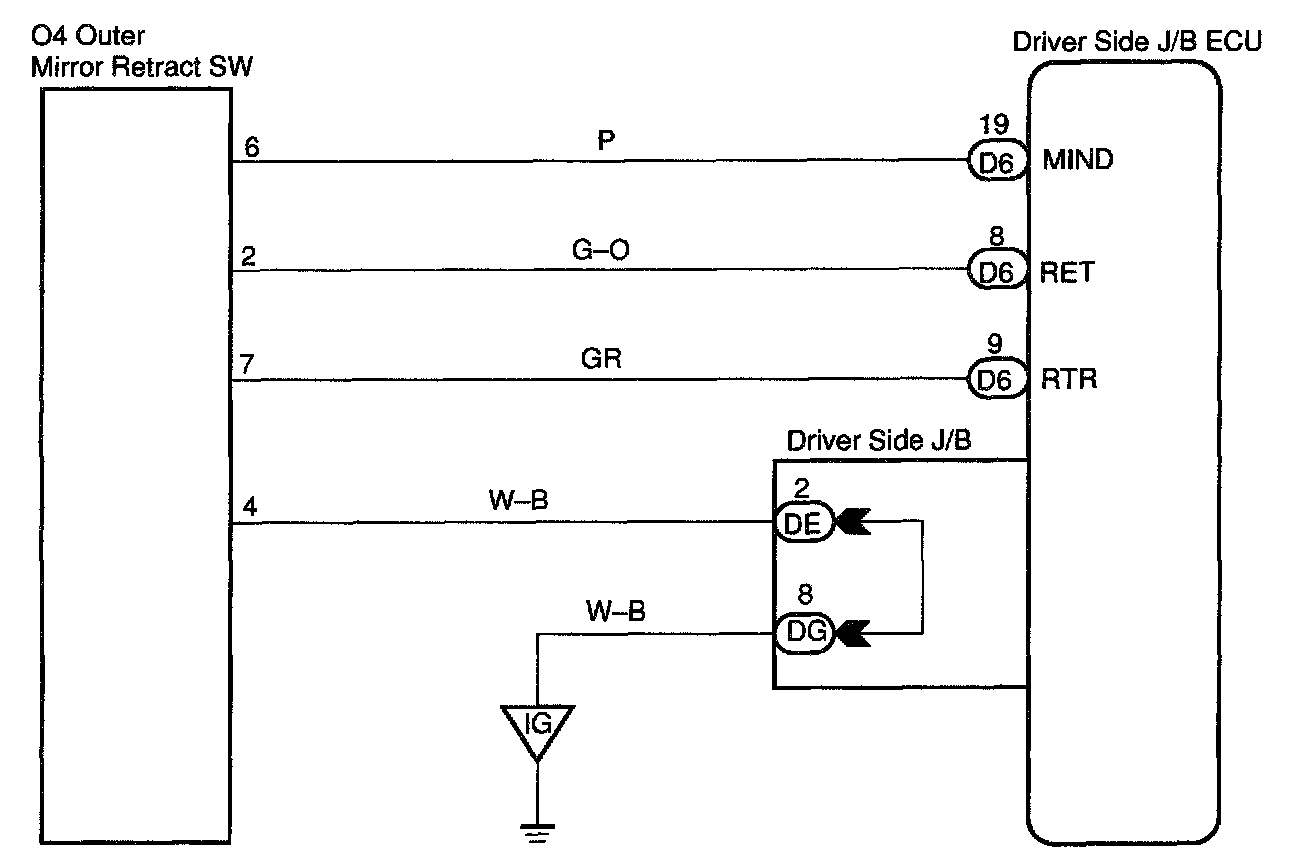

Wiring Diagram:

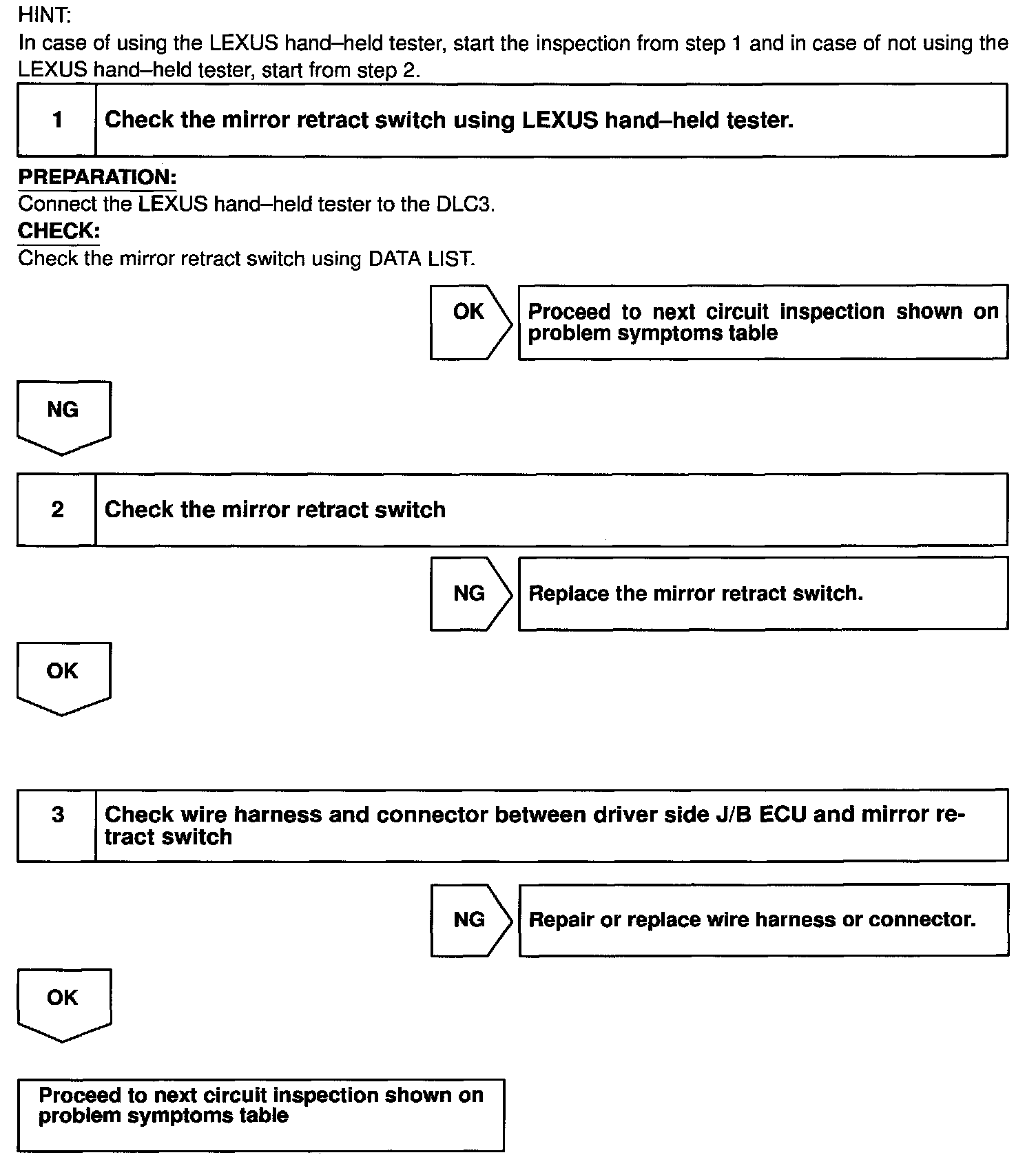

Step 1 - 3:




INSPECTION PROCEDURE
