Fuel Lid Opener Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the fuel lid opener switch.

Wiring Diagram:

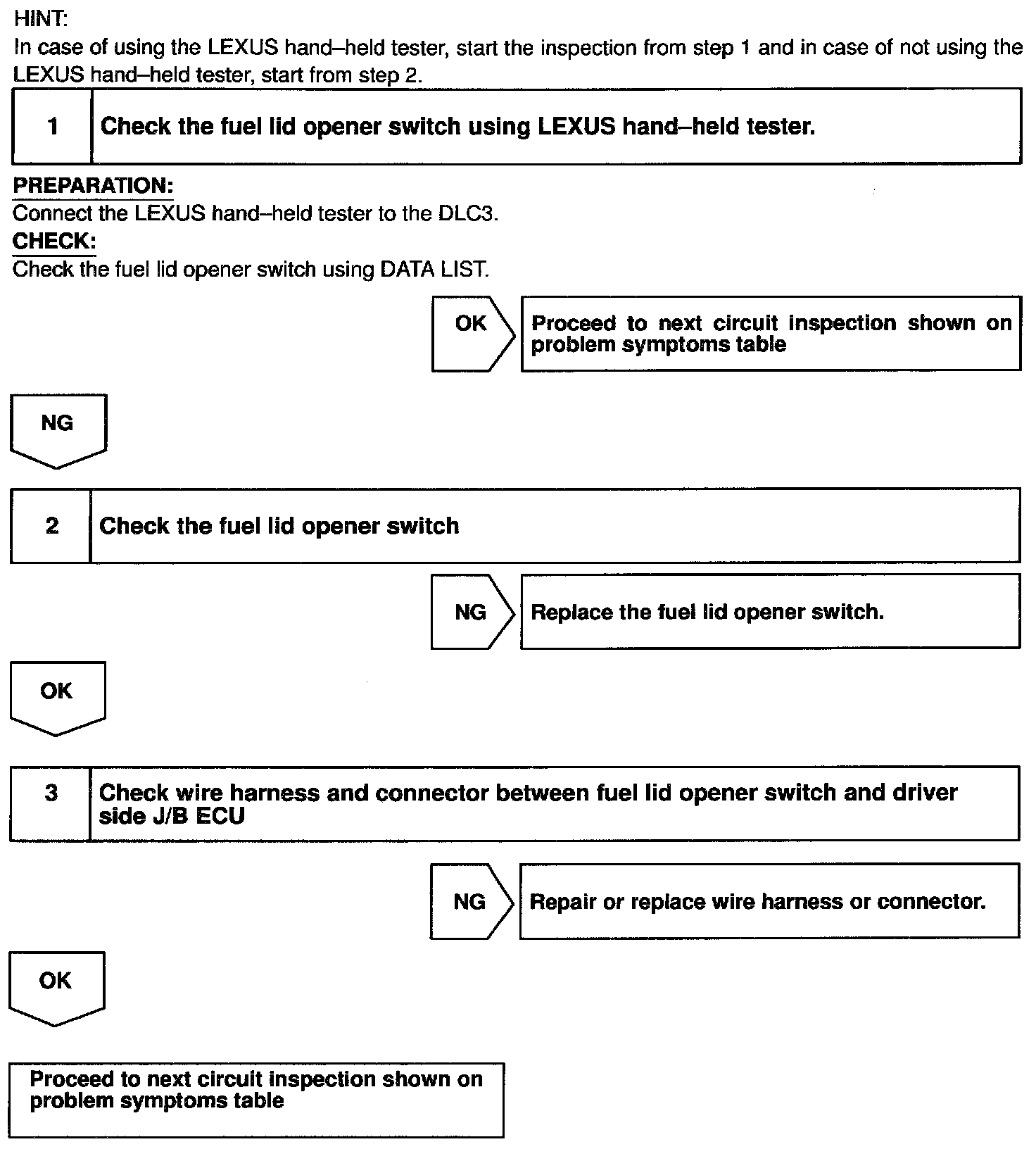

Step 1 - 3:




INSPECTION PROCEDURE
