Home >> Lexus >> 2002 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 38 - Phone Can't Be Operated With Steering Pad Switch

38 - Phone Can't Be Operated With Steering Pad Switch

38. CELLULAR PHONE CANNOT BE OPERATED WITH STEERING PAD SWITCH. (IT CAN BE OPERATED WITH PANEL/TOUGH SWITCHES.)

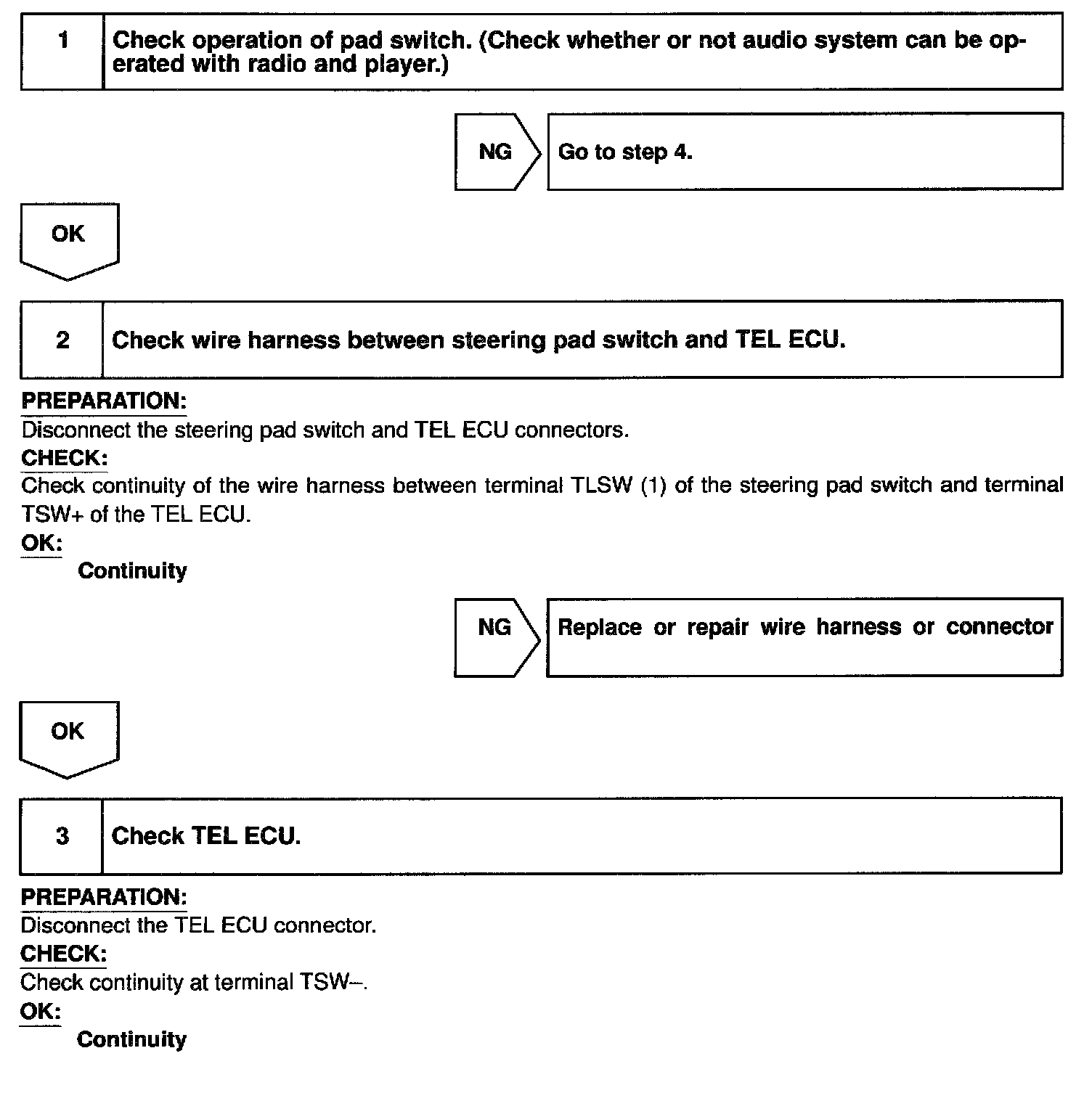

Step 1 - 3:




Step 3 (Continued) - 5:




INSPECTION PROCEDURE
