36 - Mobile Telephone Screen Isn't Displayed on Multi Display

36. CELLULAR MOBILE TELEPHONE SCREEN IS NOT DISPLAYED ON MULTI DISPLAY. (NAVIGATION SYSTEM SCREEN IS DISPLAYED.)

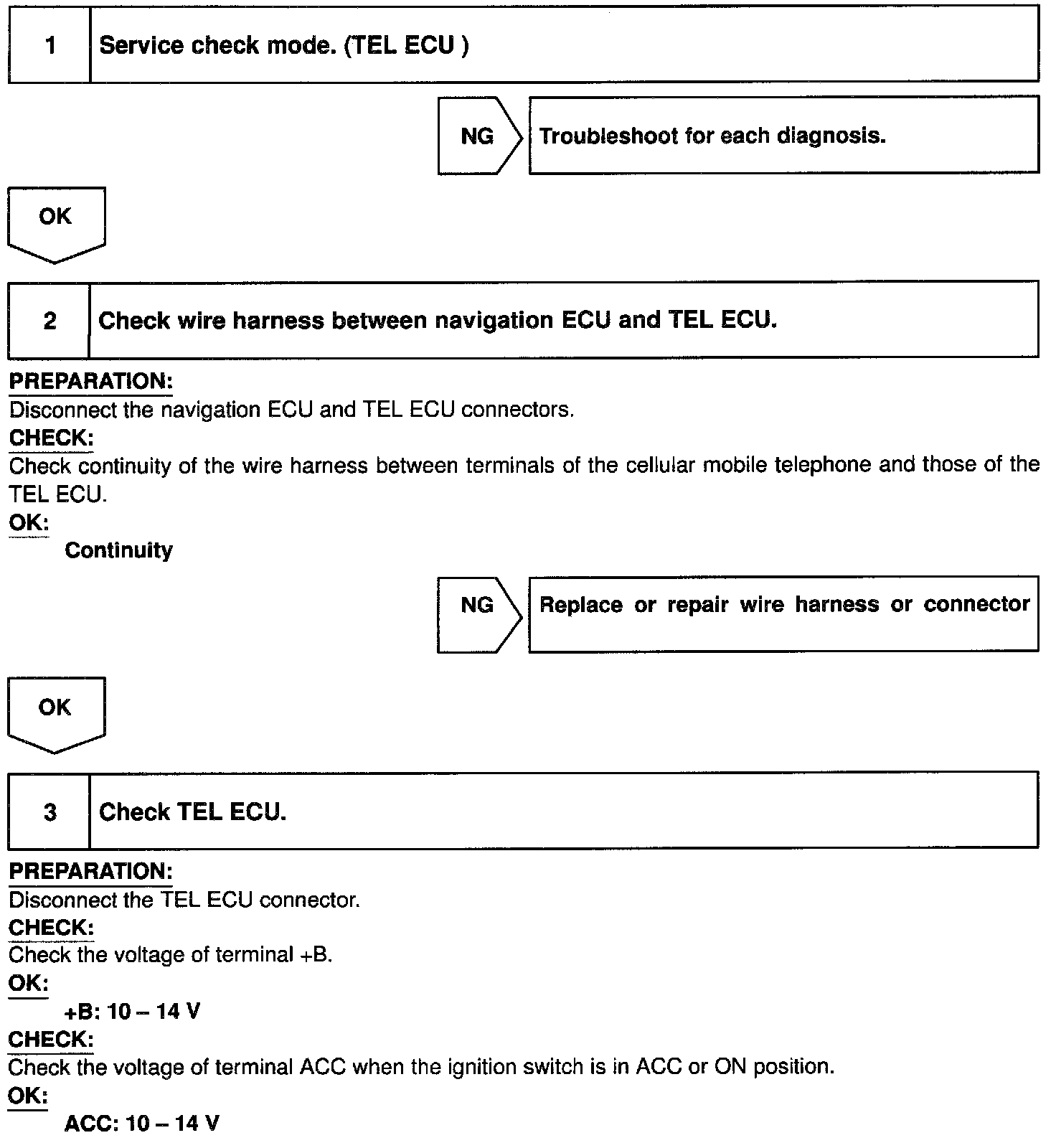

Step 1 - 3:

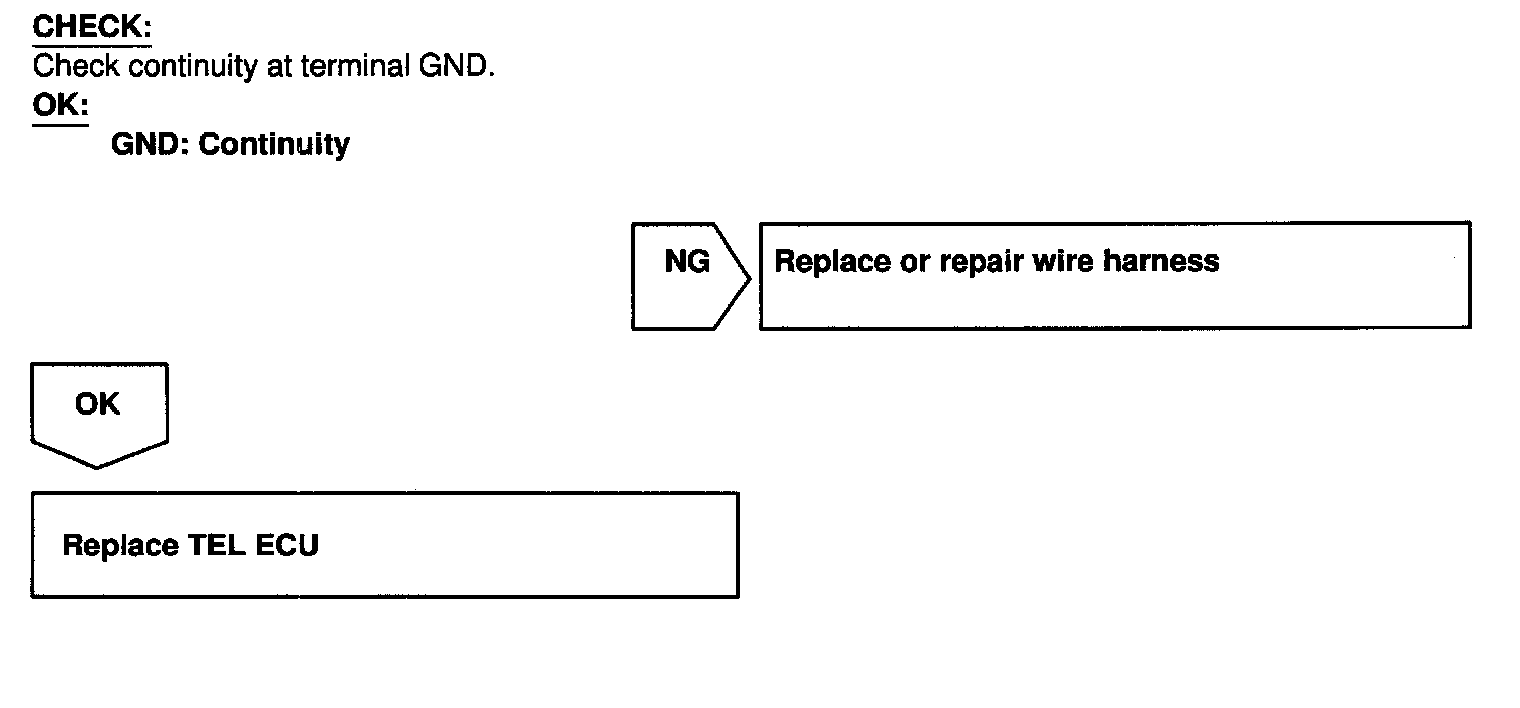

Step 3 (Continued):




INSPECTION PROCEDURE
