33 - Audio Sys Can Only Be Operated With Panel/Touch Switch

33. AUDIO SYSTEM CANNOT BE OPERATED WITH STEERING PAD SWITCH. (IT CAN BE OPERATED WITH PANEL/TOUCH SWITCHES.)

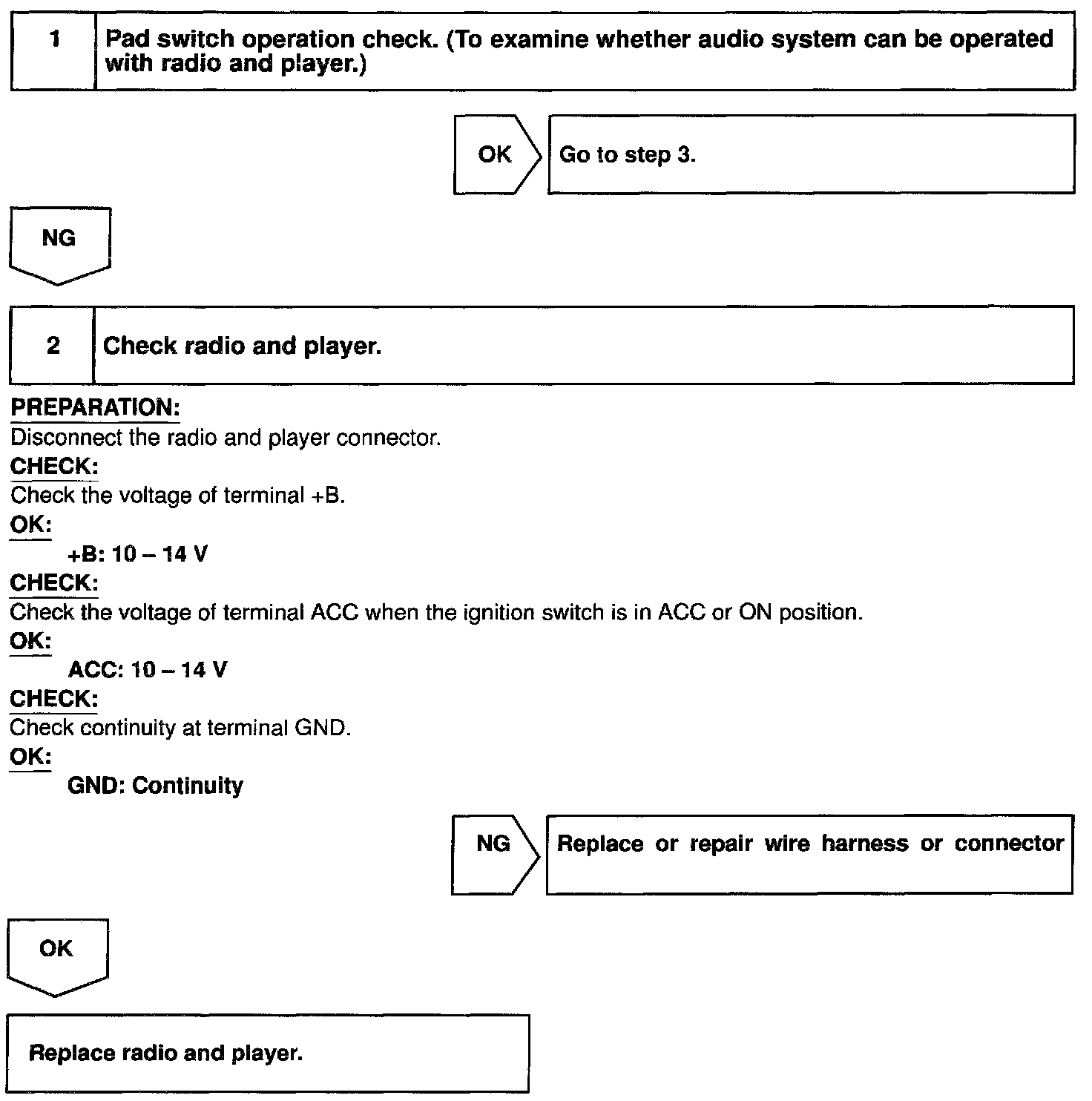

Step 1 - 2:

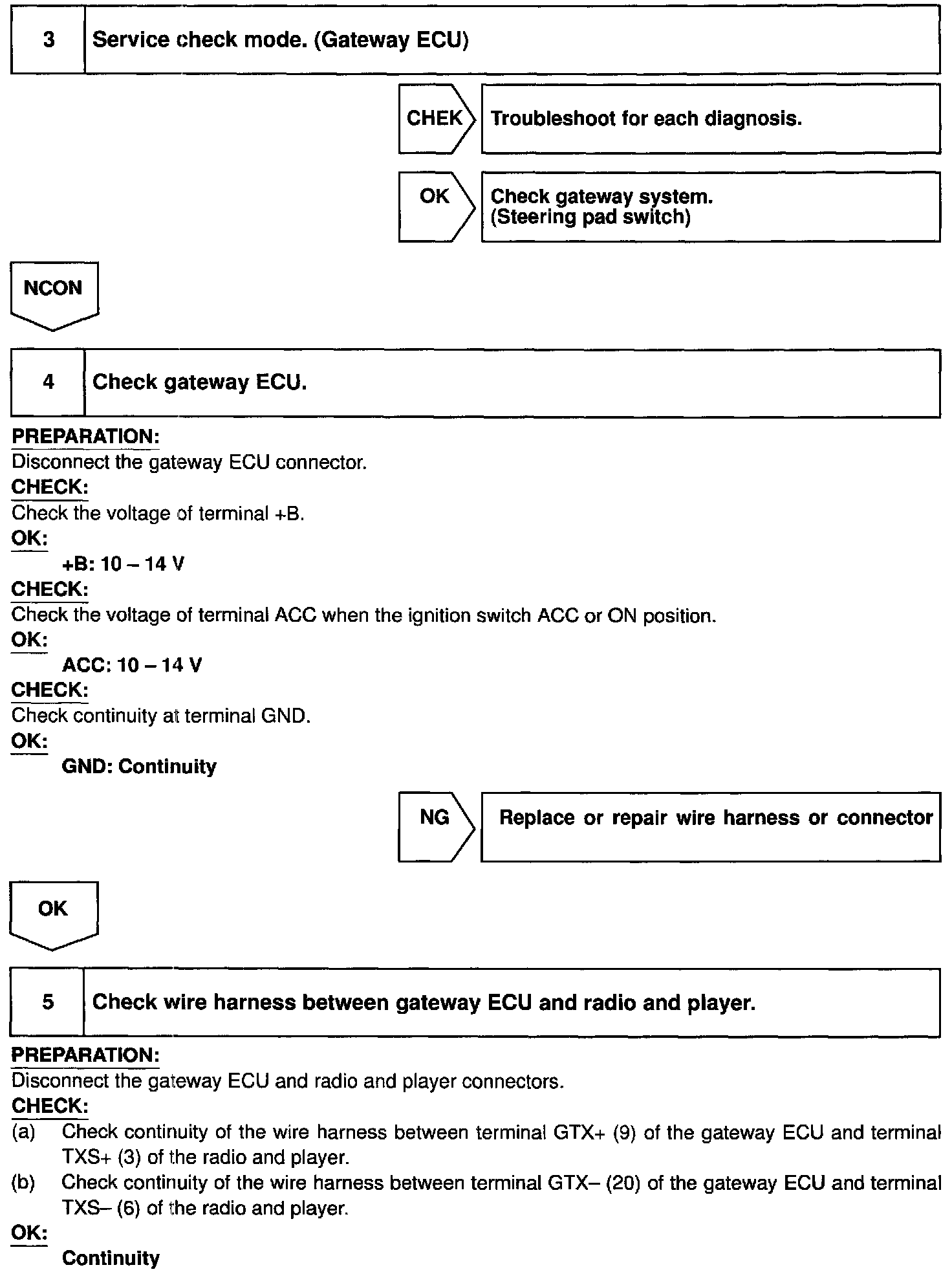

Step 3 - 5:

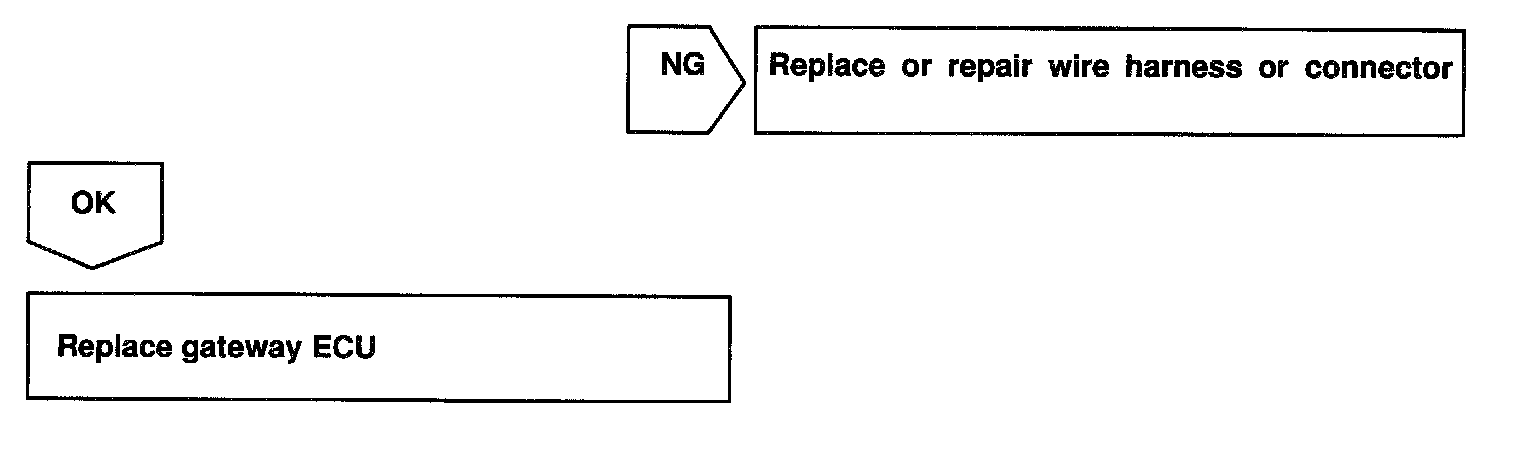

Step 5 (Continued):




INSPECTION PROCEDURE
