3 - No Nav Screen Displayed (Screen Cannot Be Switched)

3. NO NAVIGATION SCREEN DISPLAYED WHEN "MAP", "MENU", OR "DESTINATION" SWITCH PRESSED. (SCREEN CANNOT BE SWITCHED.)

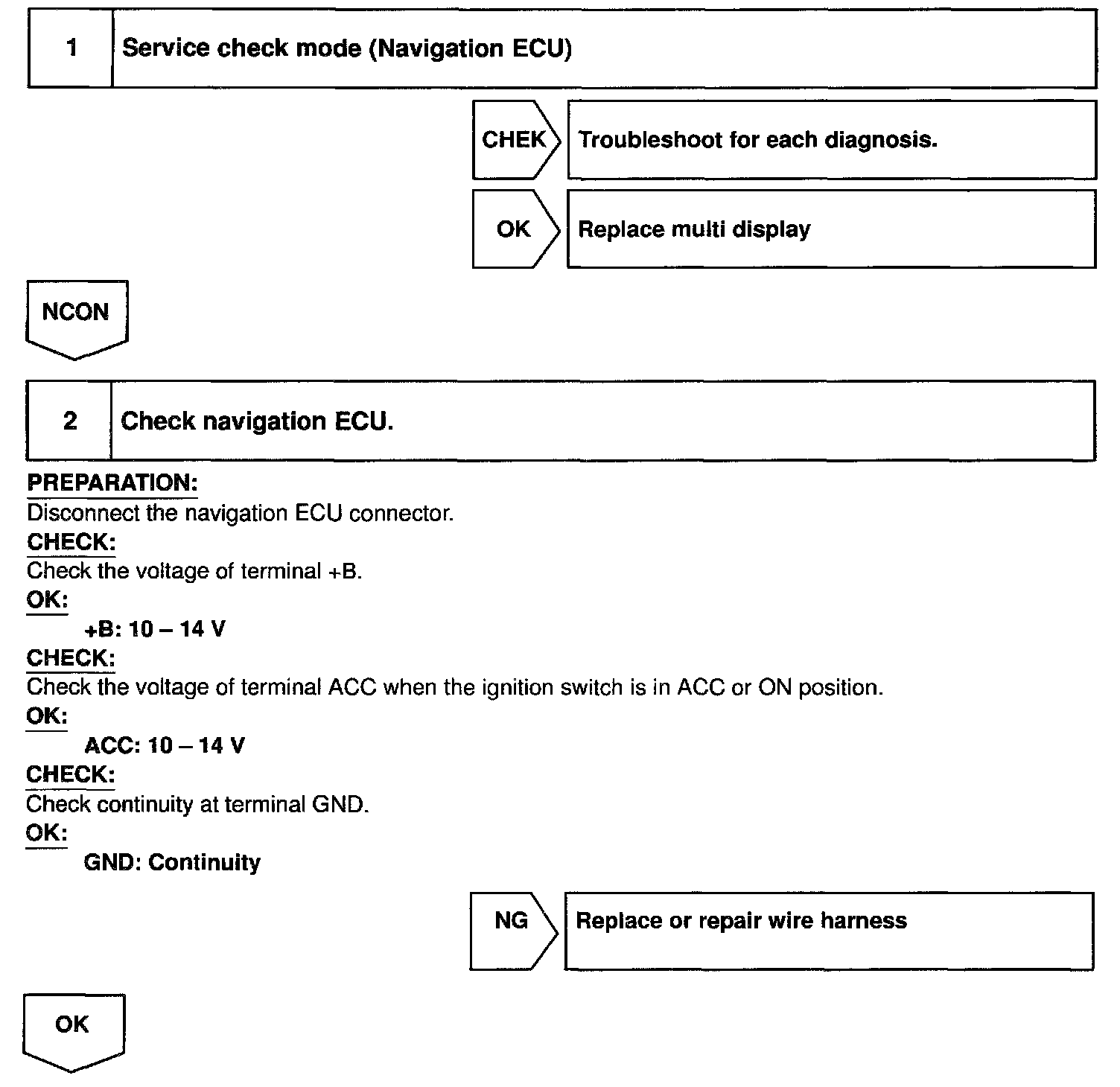

Step 1 - 2:

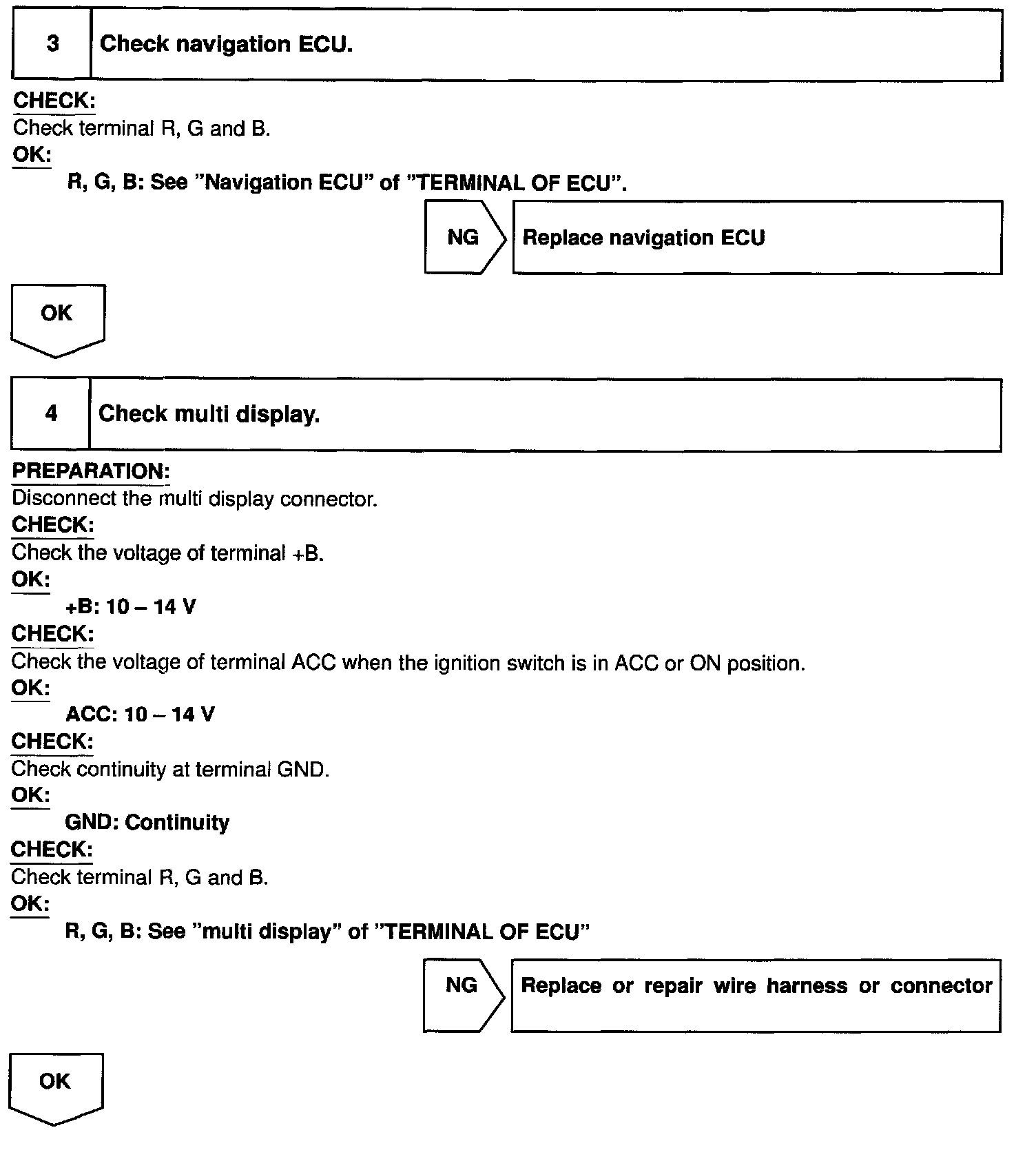

Step 3 - 4:

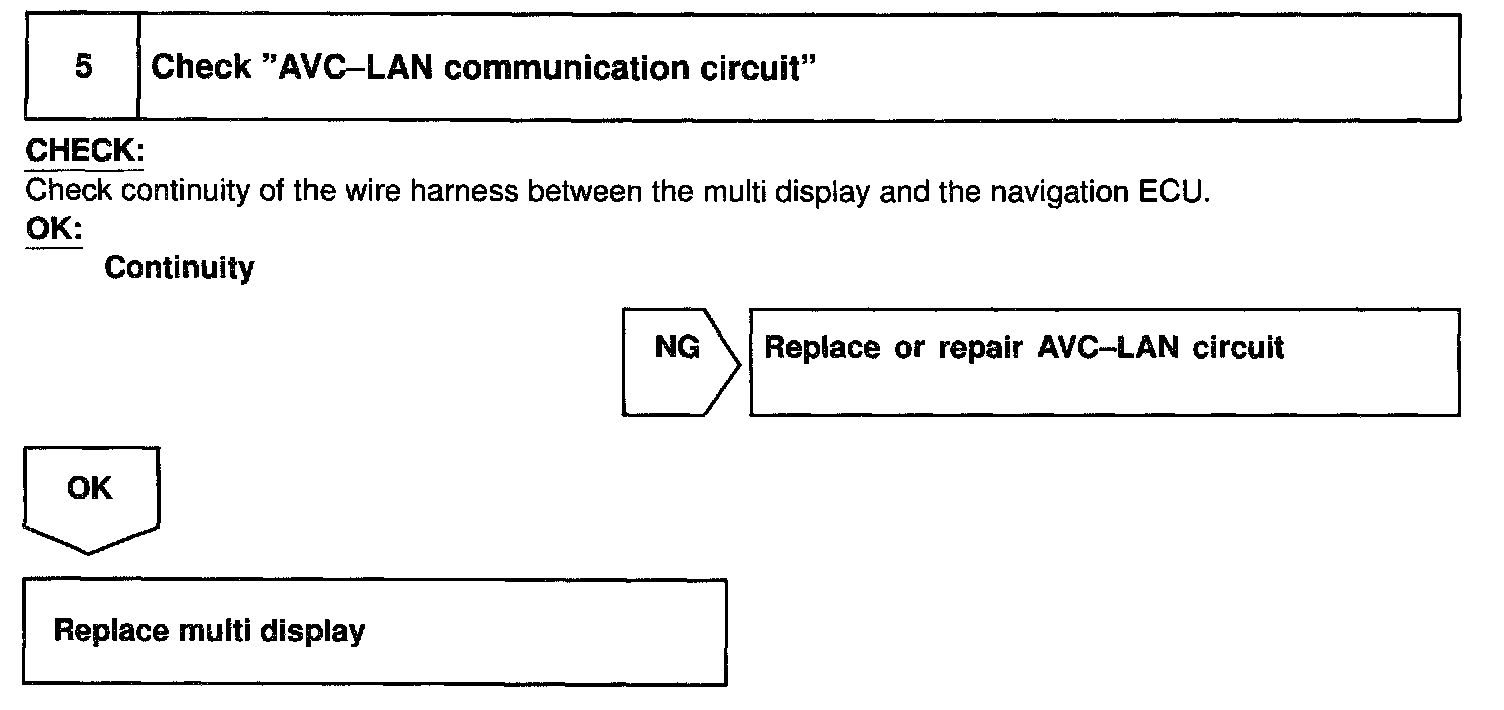

Step 5:




INSPECTION PROCEDURE
