2. NO SOUND WITH POWER SWITCH PRESSED. ("AUDIO OFF" ON AUDIO SCREEN)

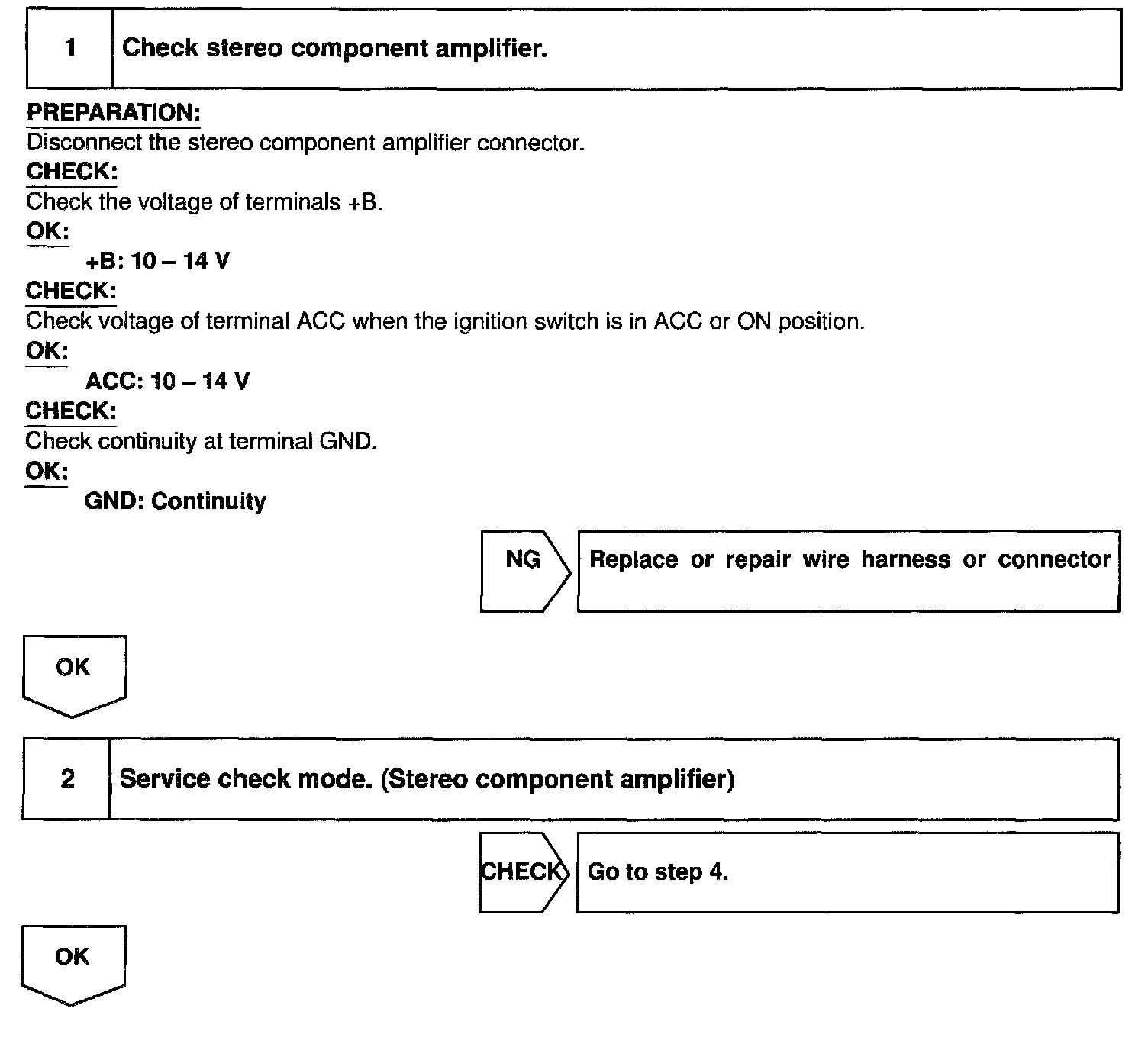

Step 1 - 2:

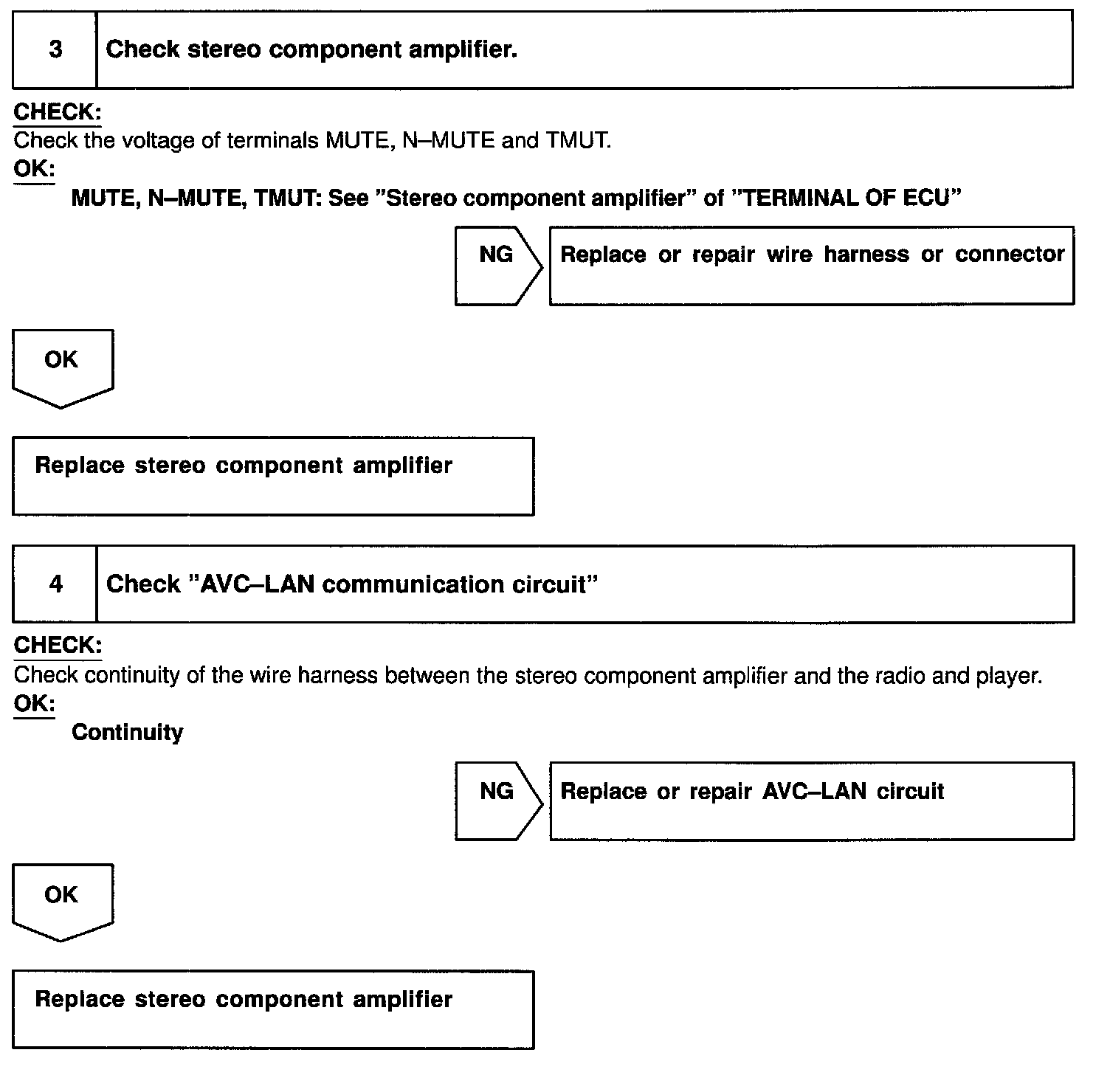

Step 3 - 4:
INSPECTION PROCEDURE
