Home >> Lexus >> 2002 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 12 - Map DISC Cannot Be Inserted

12 - Map DISC Cannot Be Inserted

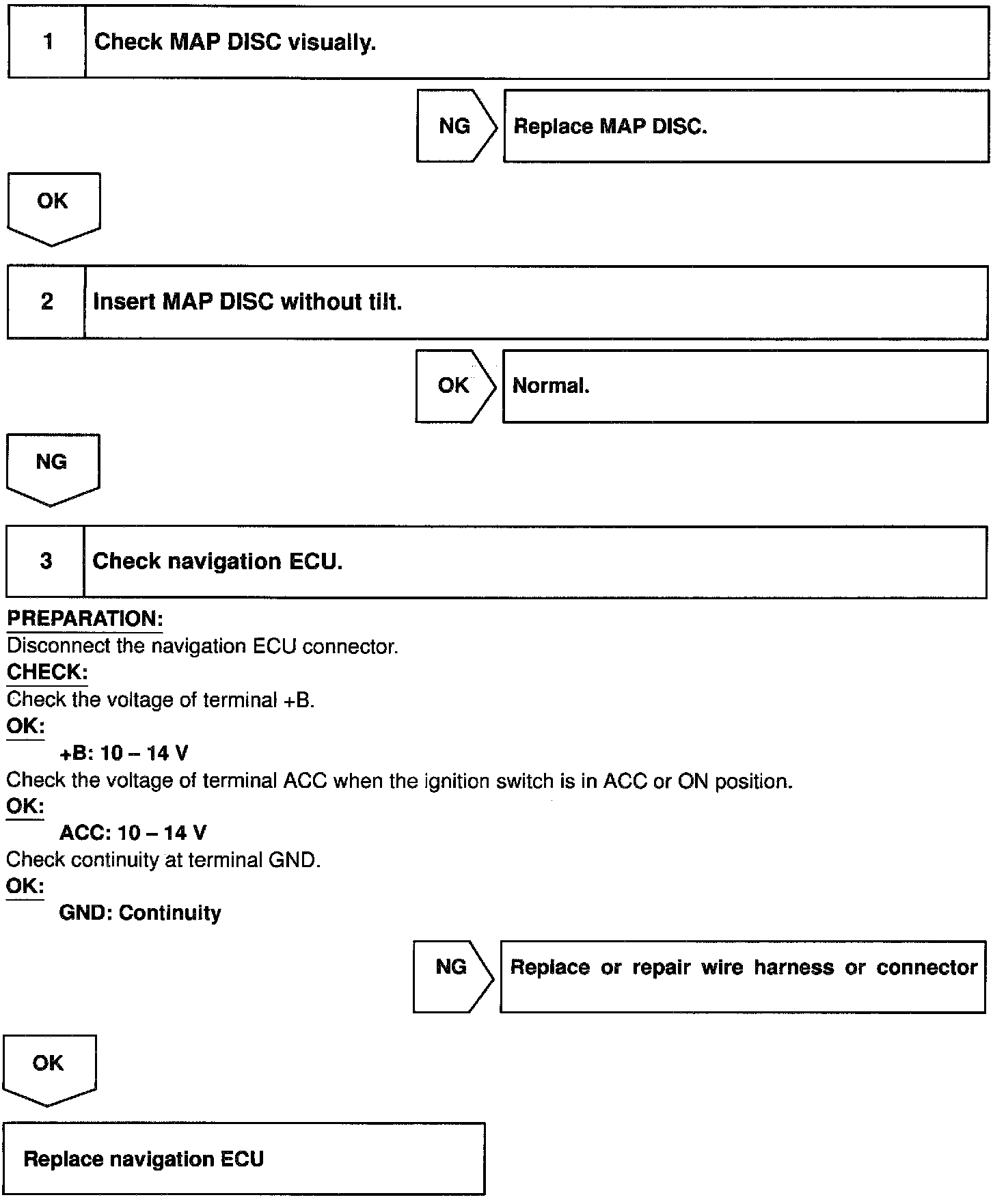

Step 1 - 3:




INSPECTION PROCEDURE
