Theft Deterrent Horn Circuit
CIRCUIT DESCRIPTIONWhen the theft deterrent system is activated, the relay in the ECU is turned ON and OFF at of approximately 0.2 seconds interval, causing the theft deterrent horn to blow.
In this condition, if any of the following operations is done, the relay in the ECU is turned OFF, thus stopping the theft deterrent horn from blowing:
1. Unlock the driver door with key.
2. Turn the ignition switch to ON position.
3. Unlock the doors with the wireless door lock control system.
4. Wait for approximately 60 seconds.
5. Press the panic switch of the wireless door lock control system.

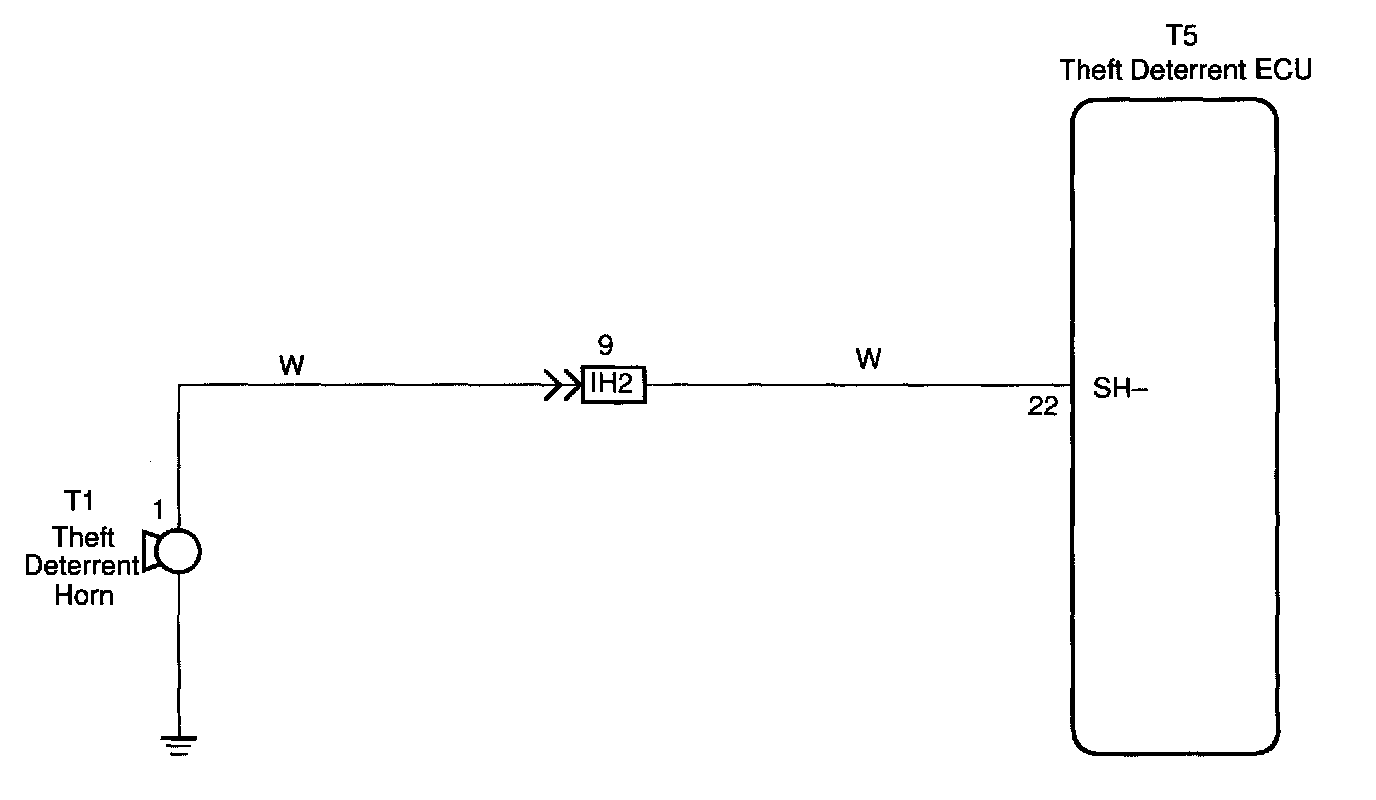

Wiring Diagram:

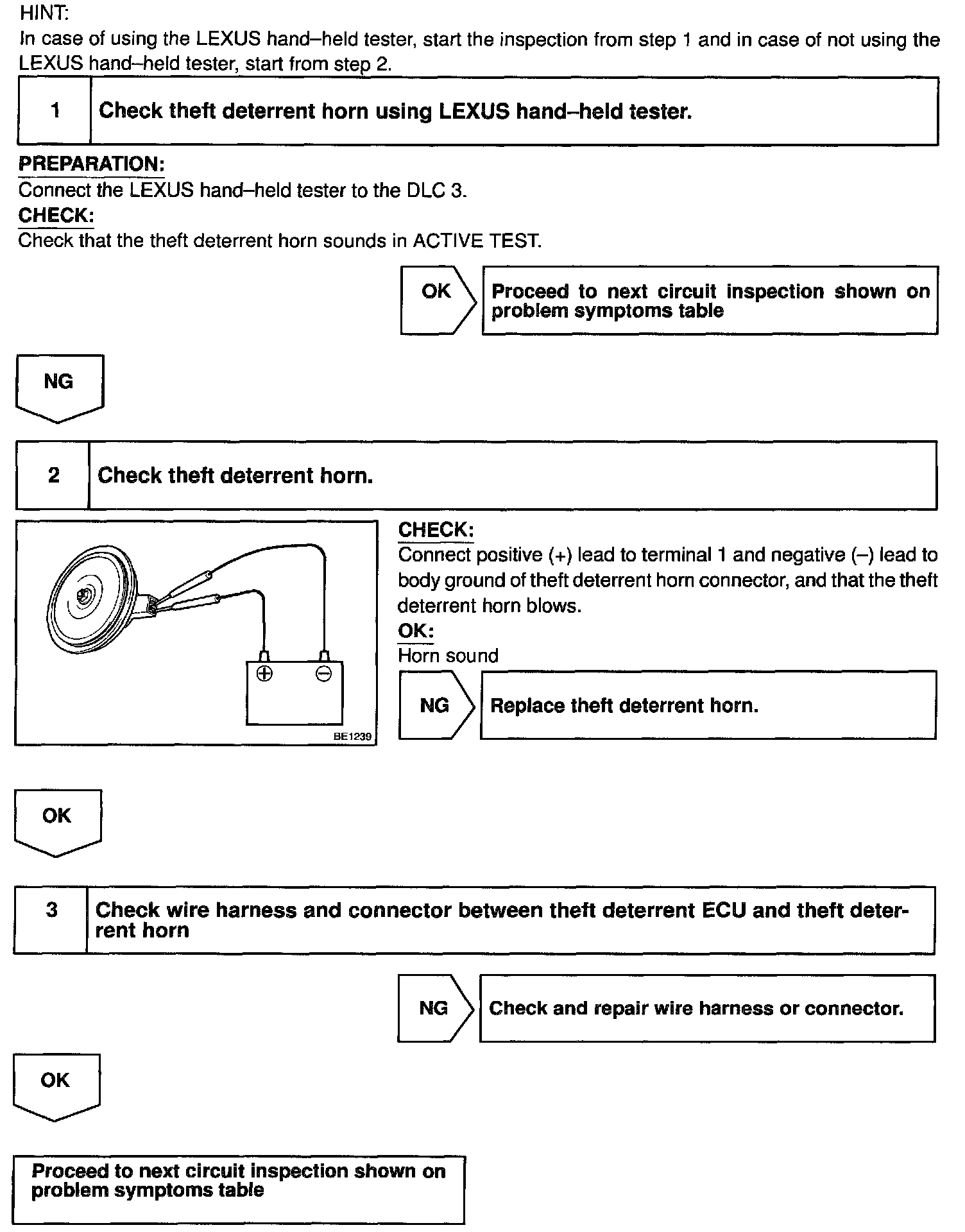

Step 1 - 3:
INSPECTION PROCEDURE
