Security Indicator Circuit

CIRCUIT DESCRIPTION

When the theft deterrent system is preparing to be set, this circuit lights up the indicator.

When the system is set, the indicator blinks.

It also indicates the condition of the immobilizer system according to the request from the Transponder key ECU.

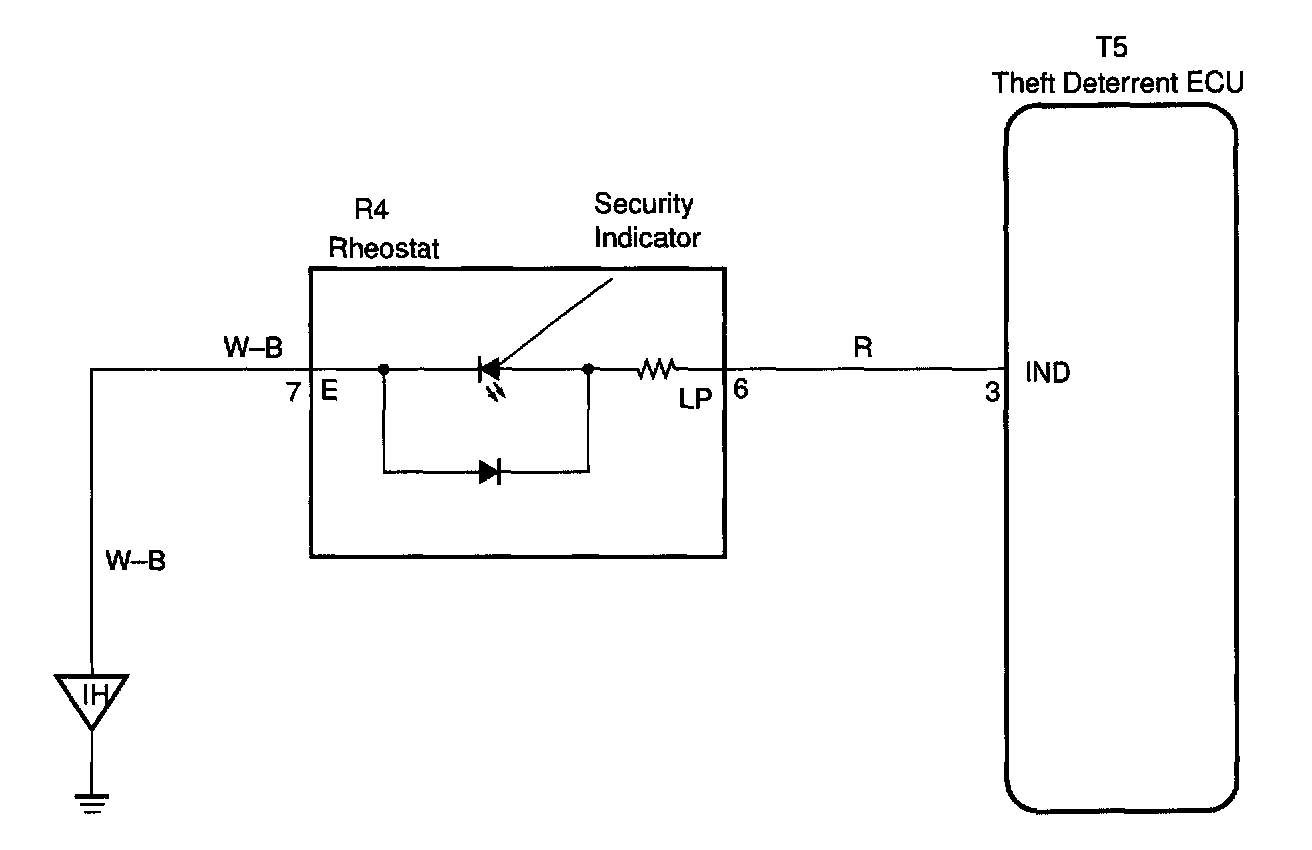

Wiring Diagram:

Step 1 - 3:

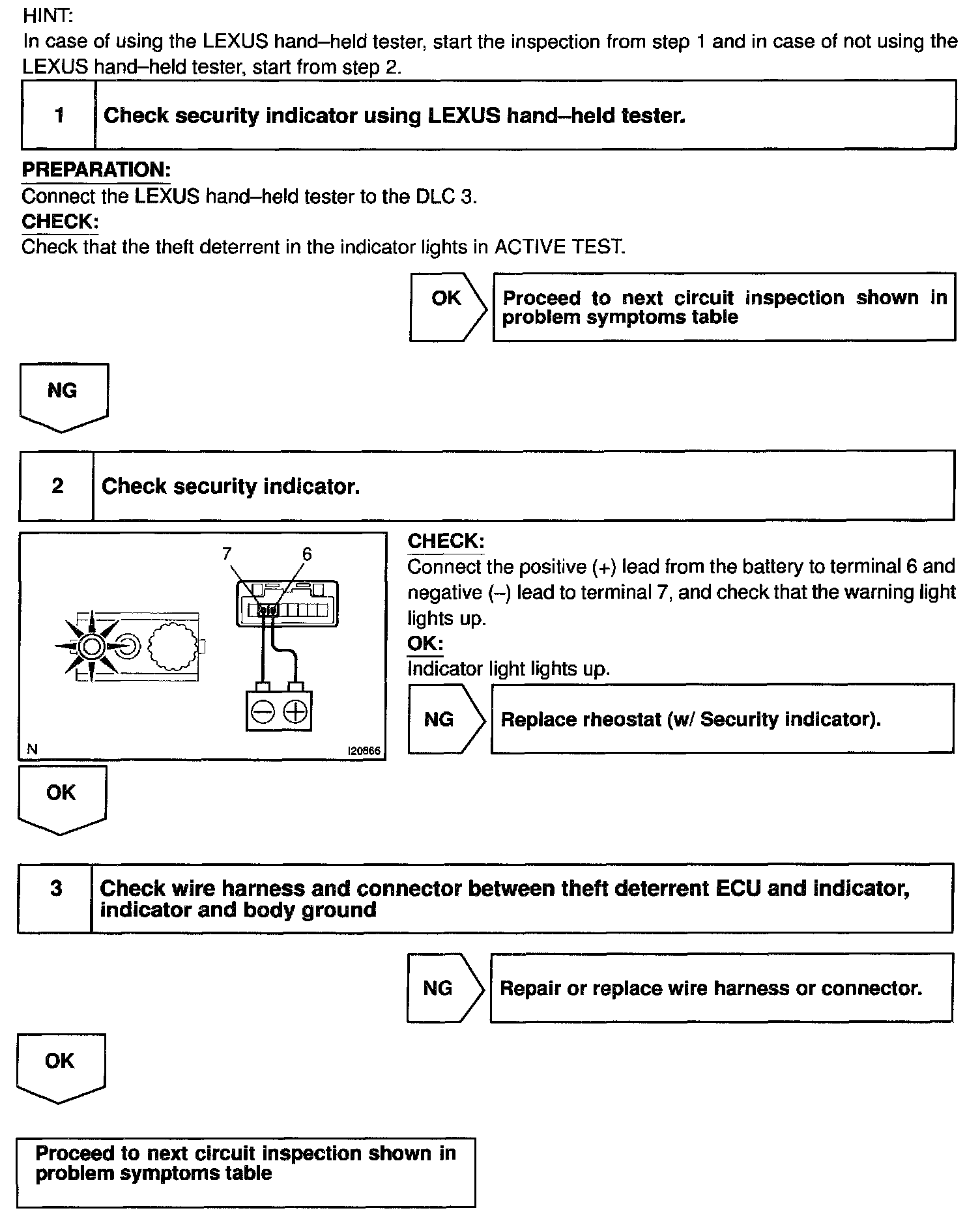

INSPECTION PROCEDURE
