P1631

DTC P1631 COMMUNICATION ERROR FROM ECM TO SKID CONTROL ECU

CIRCUIT DESCRIPTION

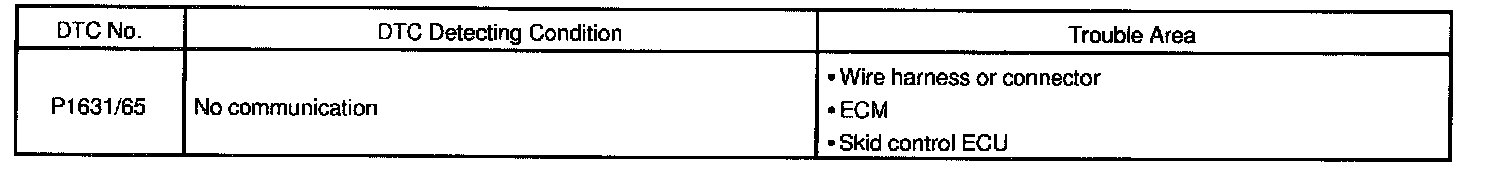

DTC Detecting Condition:

ECM and skid control ECU always communicate the data for vehicle general control and diagnosis function each other via communication line.

Wiring Diagram:

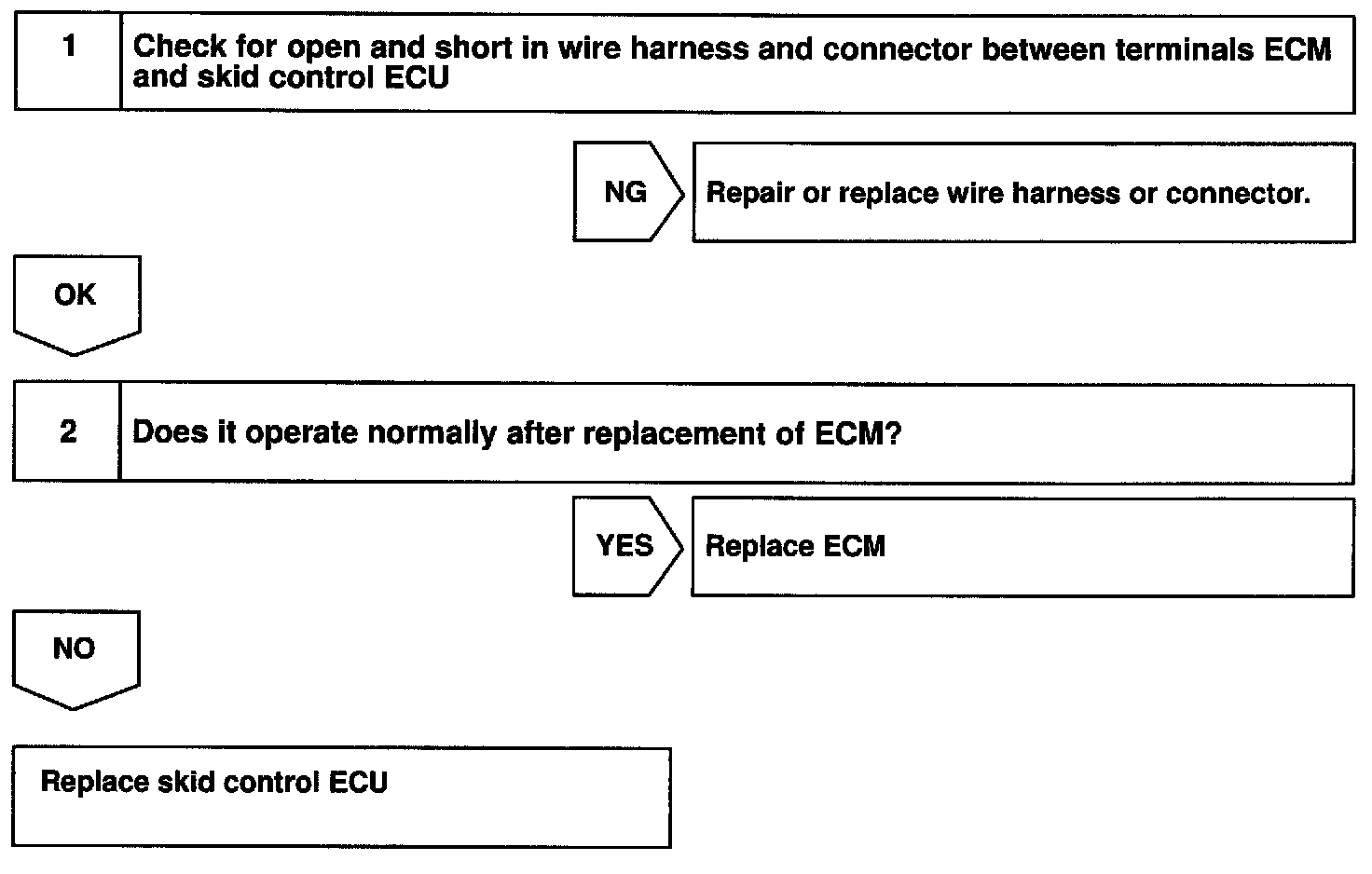

Step 1 - 2:

INSPECTION PROCEDURE
