DTC 2

DTC 2 BUTTON MODULE FAILURE

CIRCUIT DESCRIPTION

This DTC is output when any of the mayday switches is turned ON for 15 seconds or more and this condition is judged as a stuck switch.

Note that this DTC is output even though it is kept pressed intentionally.

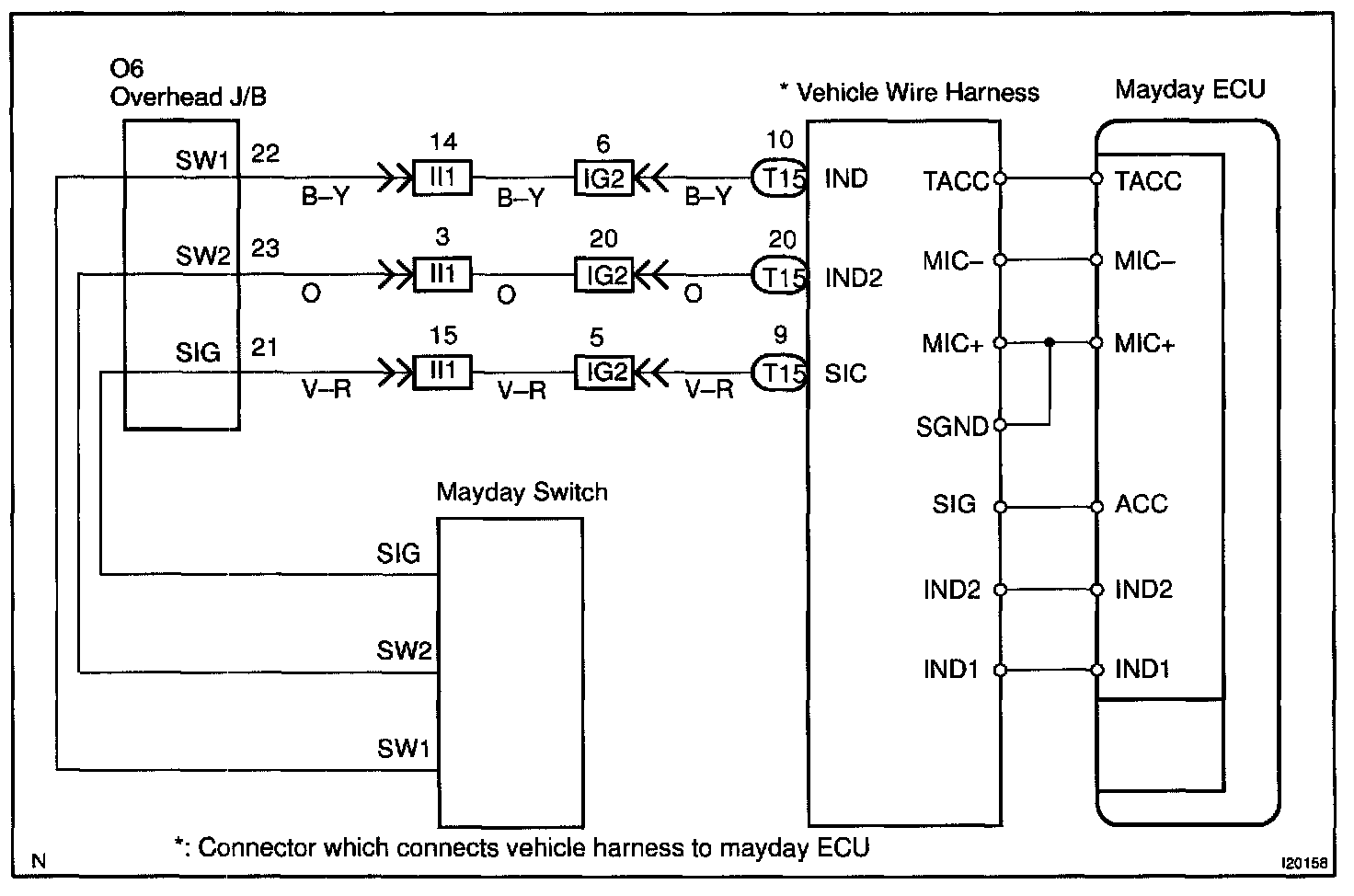

Wiring Diagram:

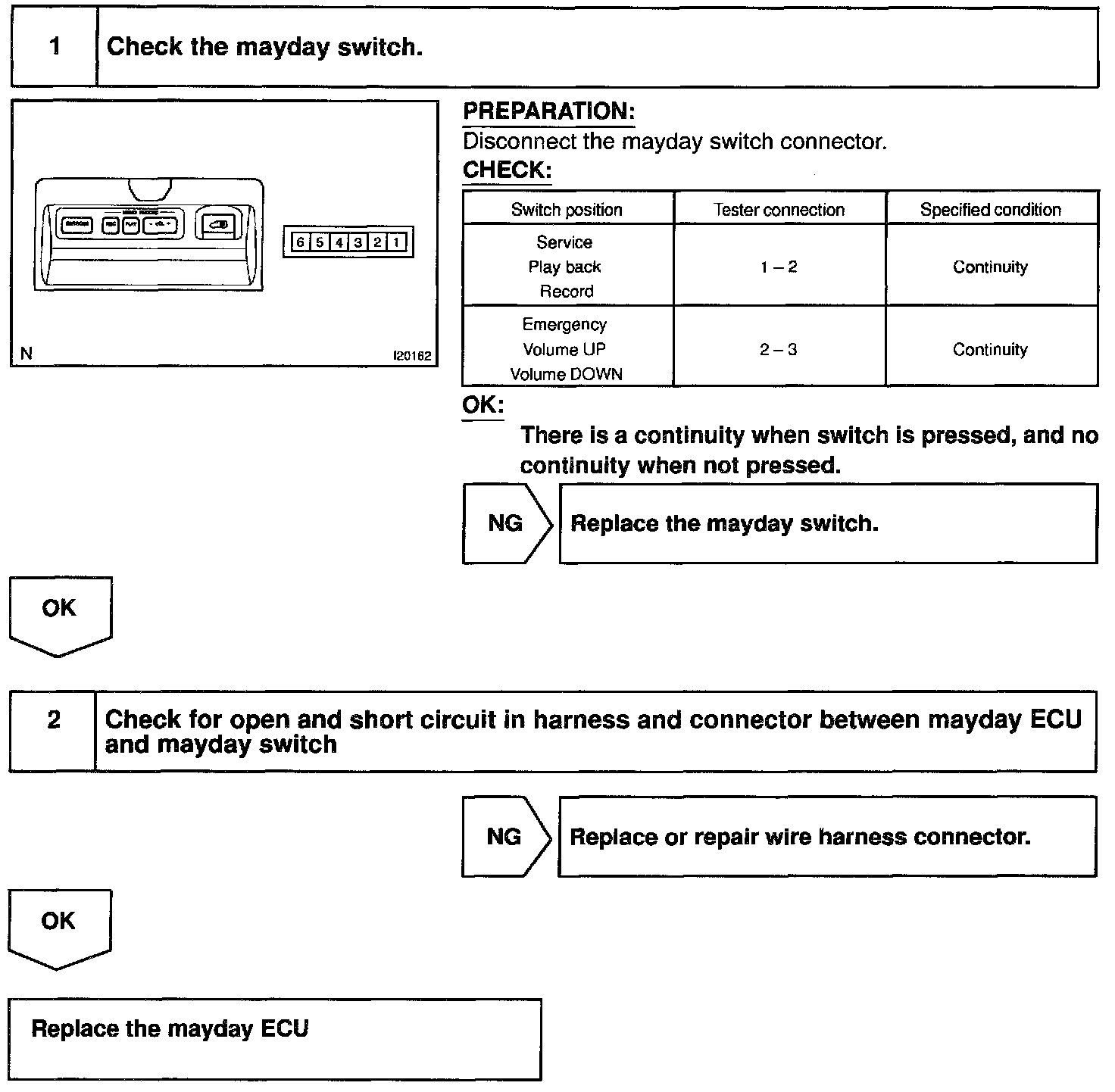

Step 1 - 2:

INSPECTION PROCEDURE
