NEO Signal Circuit

DTC 44 NEO Signal Circuit

CIRCUIT DESCRIPTION

DTC Detection Condition:

The skid control ECU receives engine revolution speed signals (NE signals) from the ECM

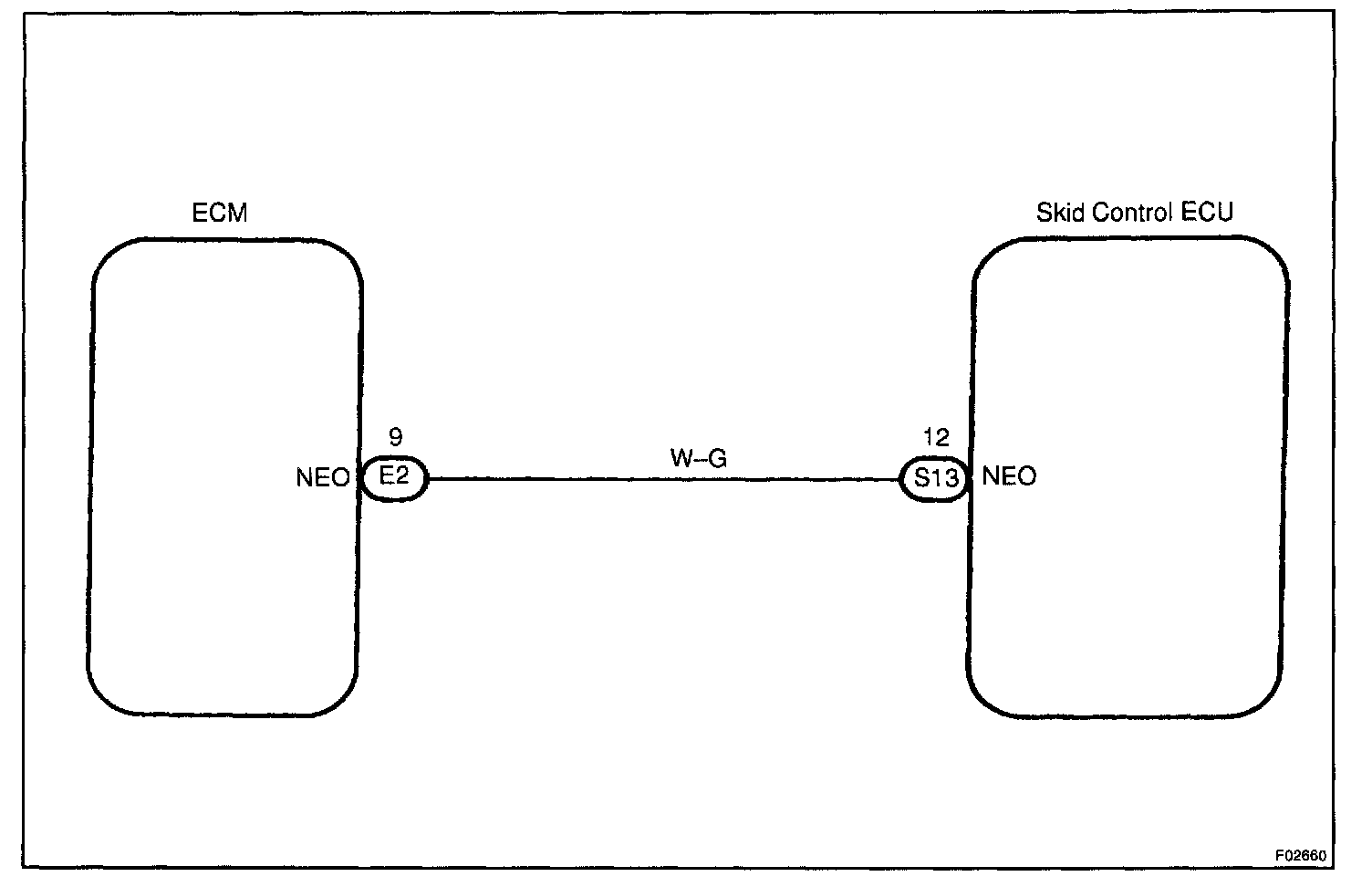

Wiring Diagram:

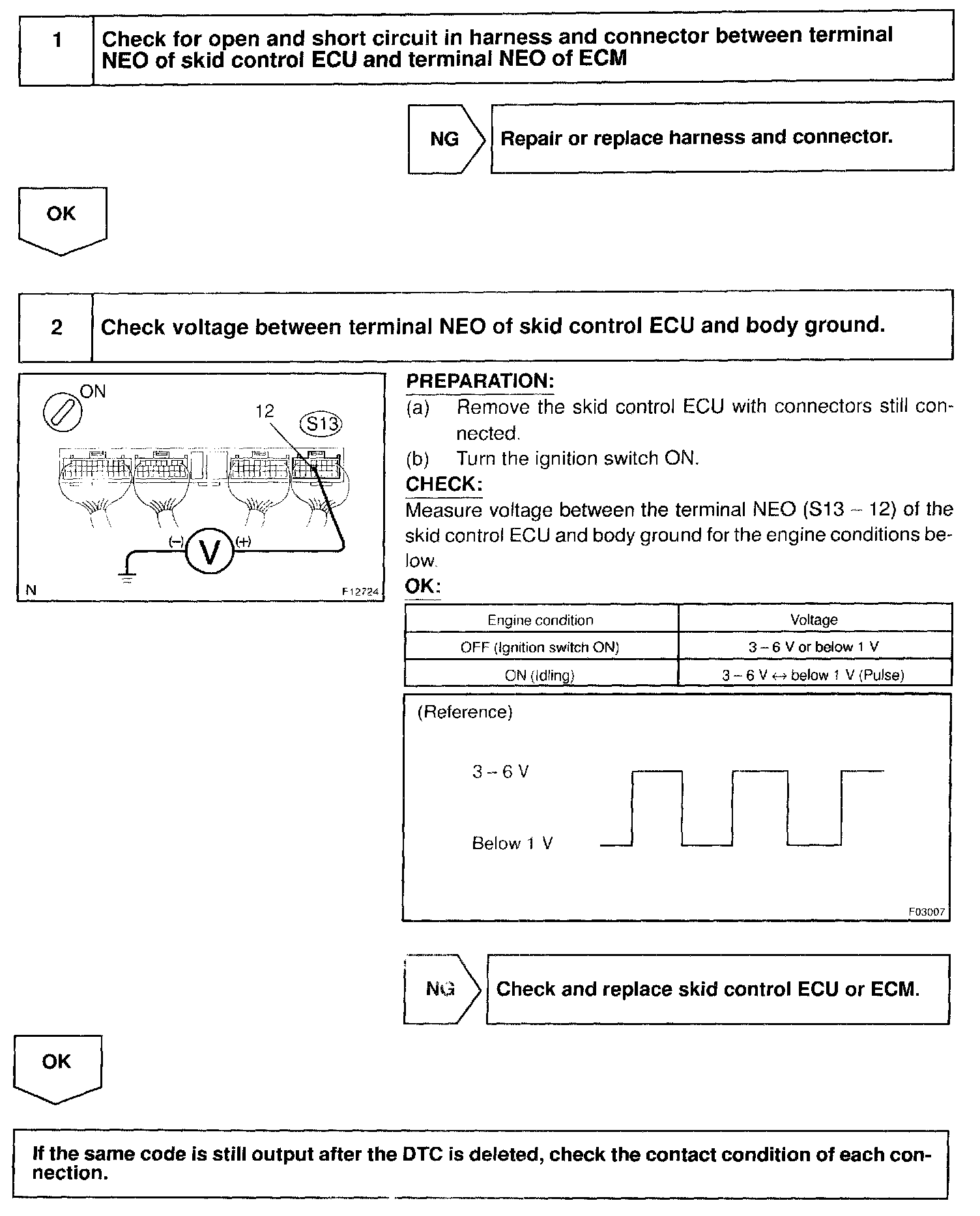

Step 1 - 2:

INSPECTION PROCEDURE
