DTC 14

DTC 14 ABS MTR Relay Circuit

CIRCUIT DESCRIPTION

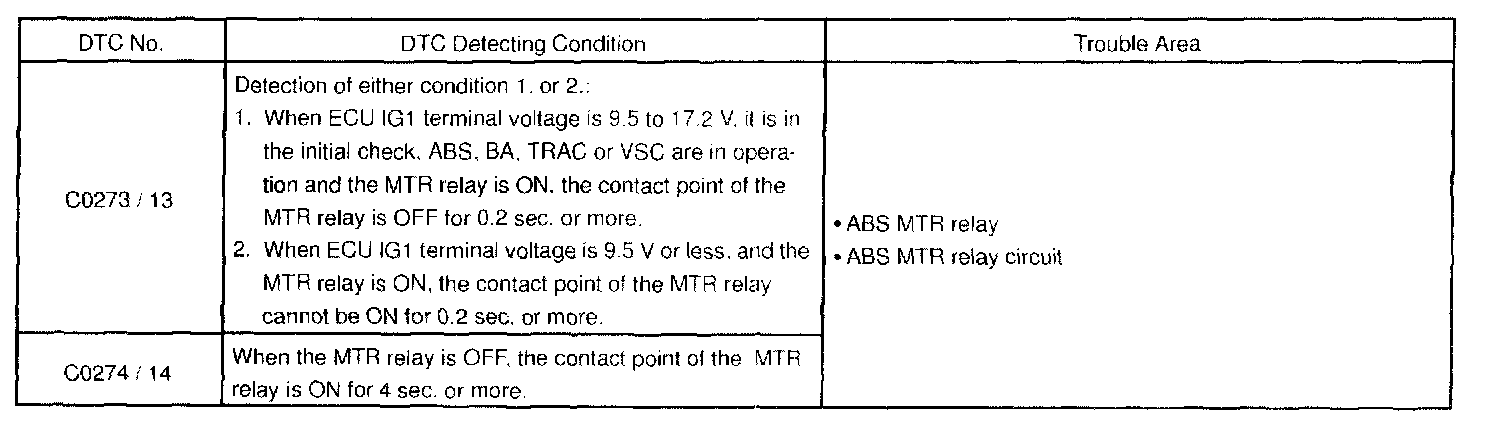

DTC Detection Condition:

The ABS MTR relay supplies power to the ABS pump motor. While the ABS & TRAC & VSC are activated the ECU switches the MTR relay ON and operates the ABS pump motor.

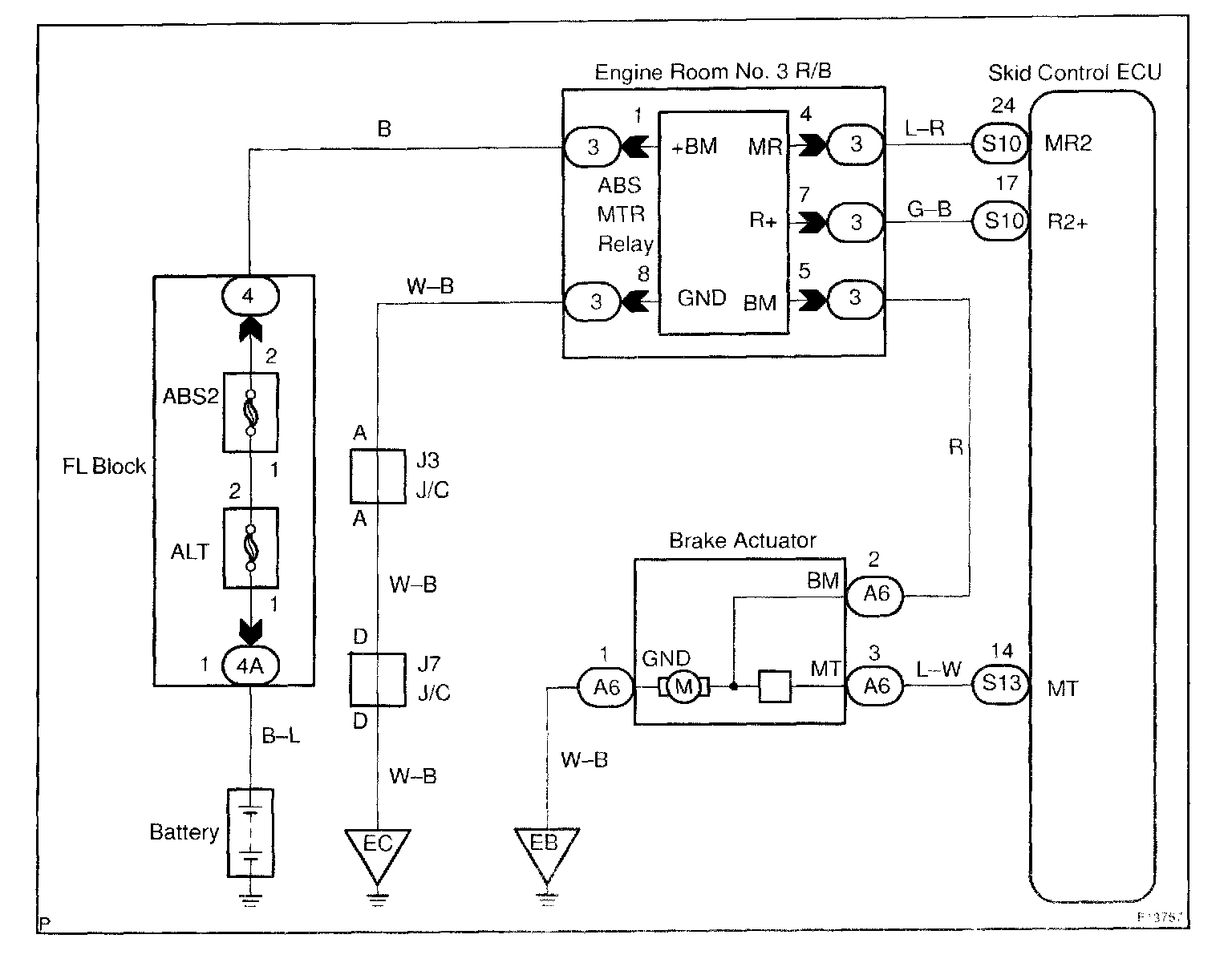

Wiring Diagram:

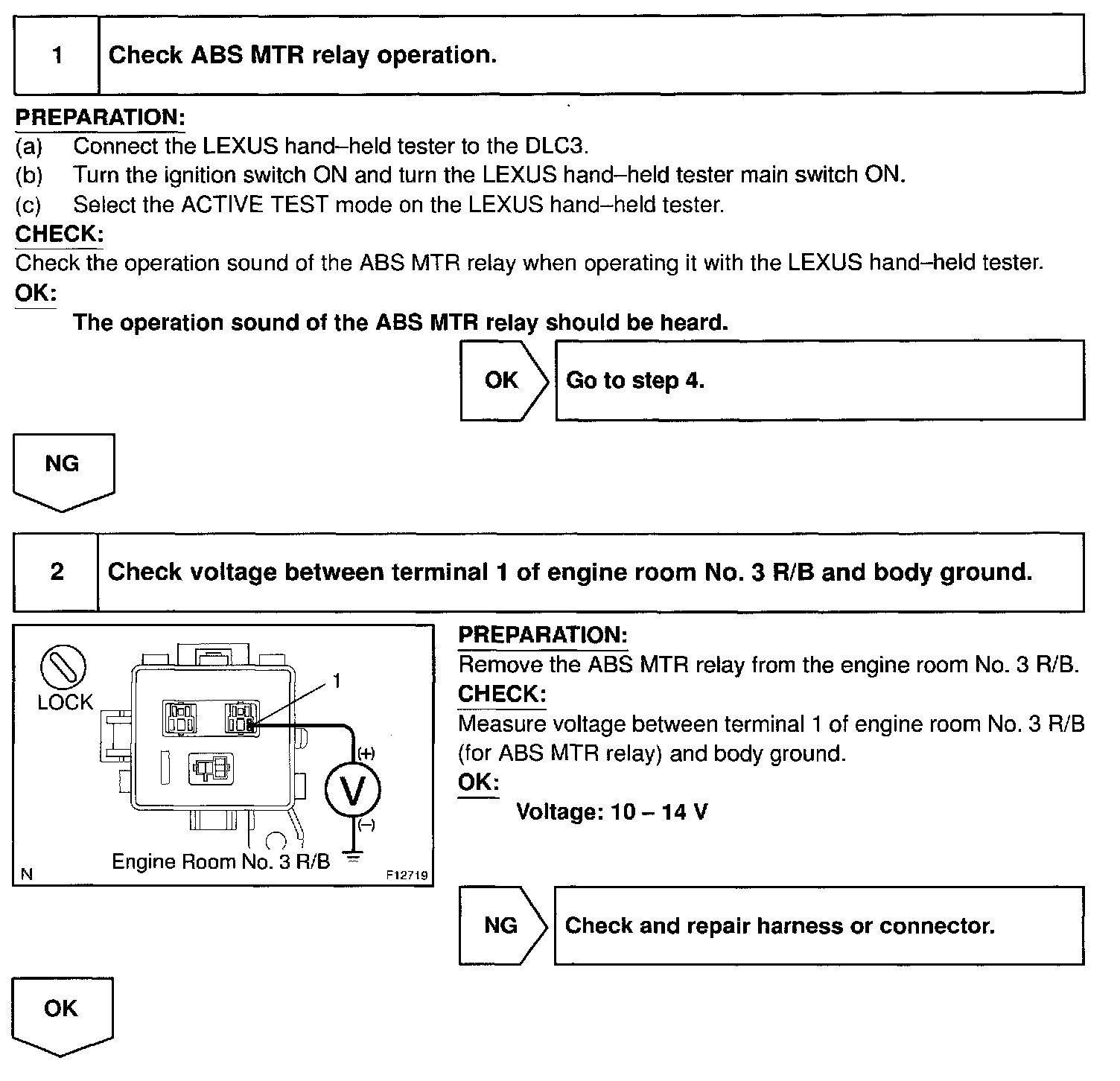

Step 1 - 2:

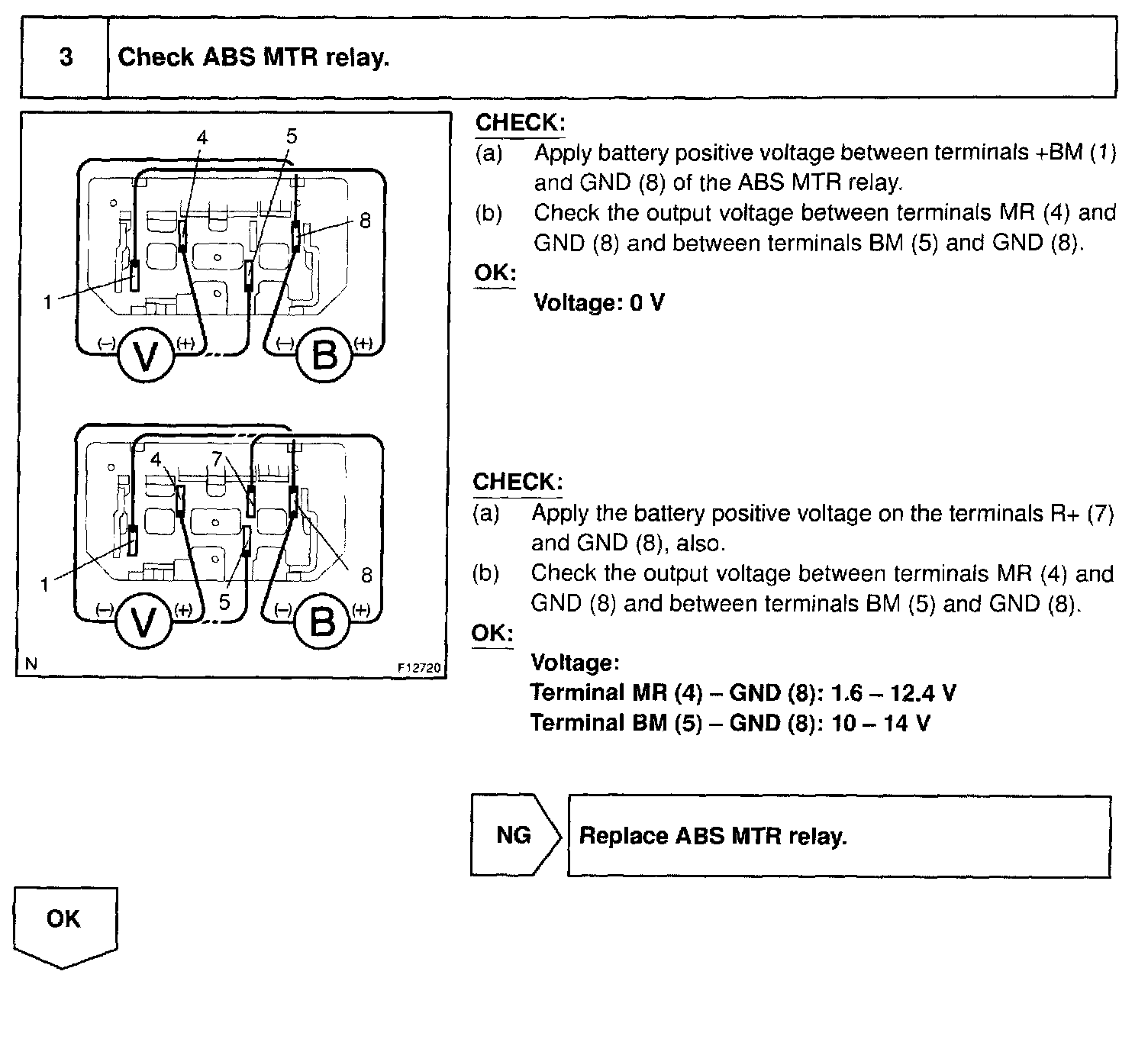

Step 3:

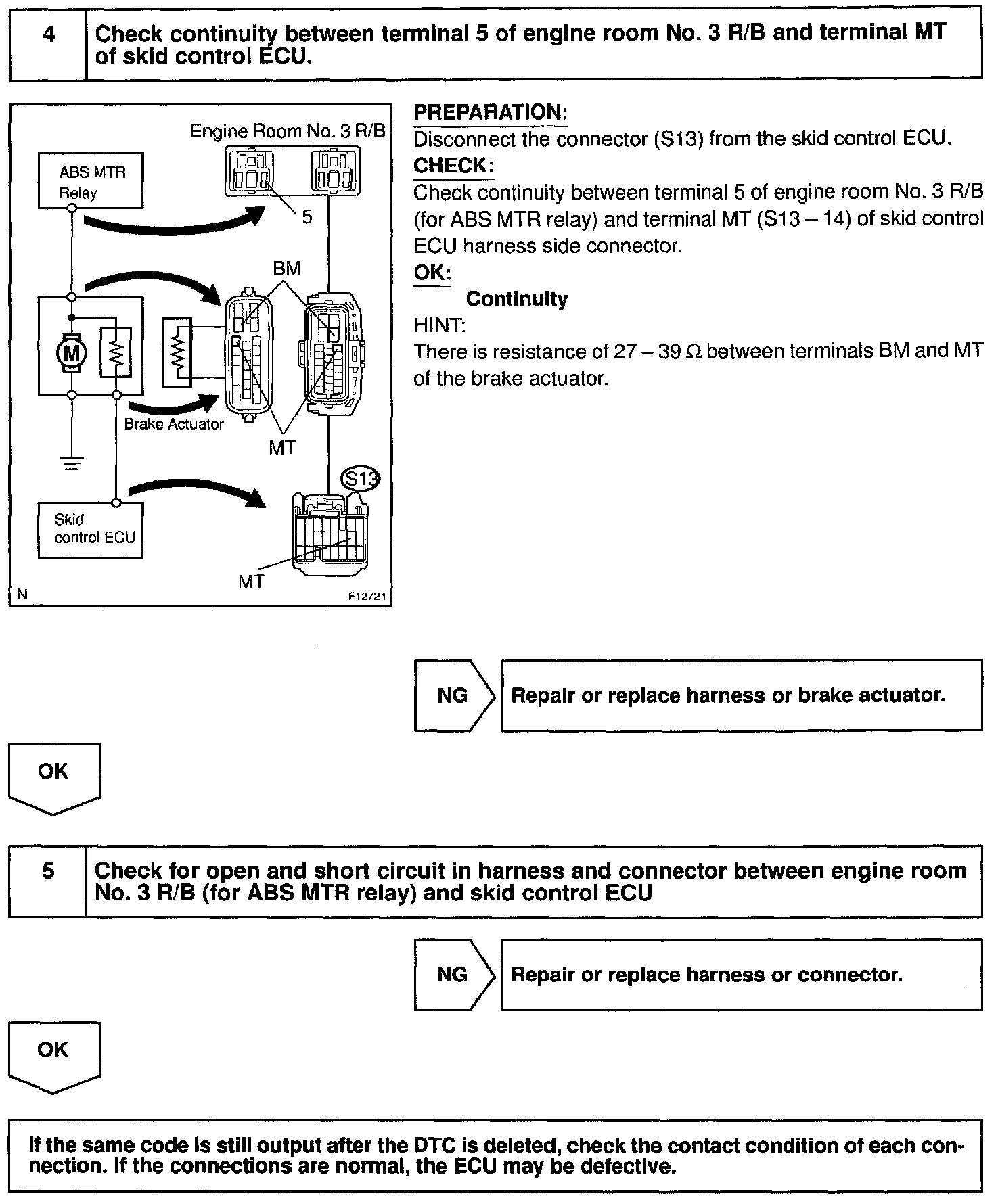

Step 4 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
