ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: Before replacing or removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843 - 18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found on inspected parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit indicated by DTC. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Procedures".

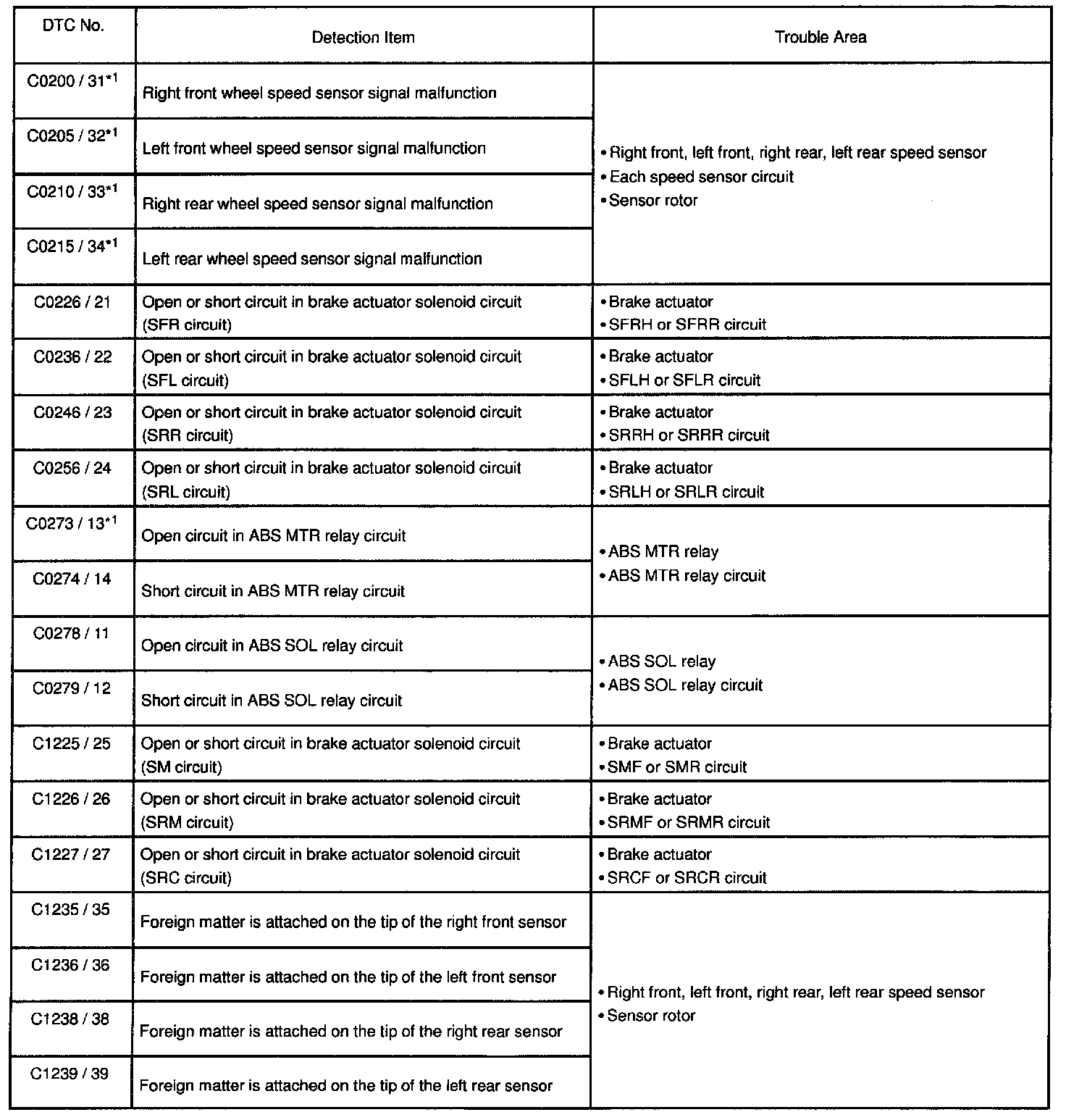

C0200/31 - C1239/39:

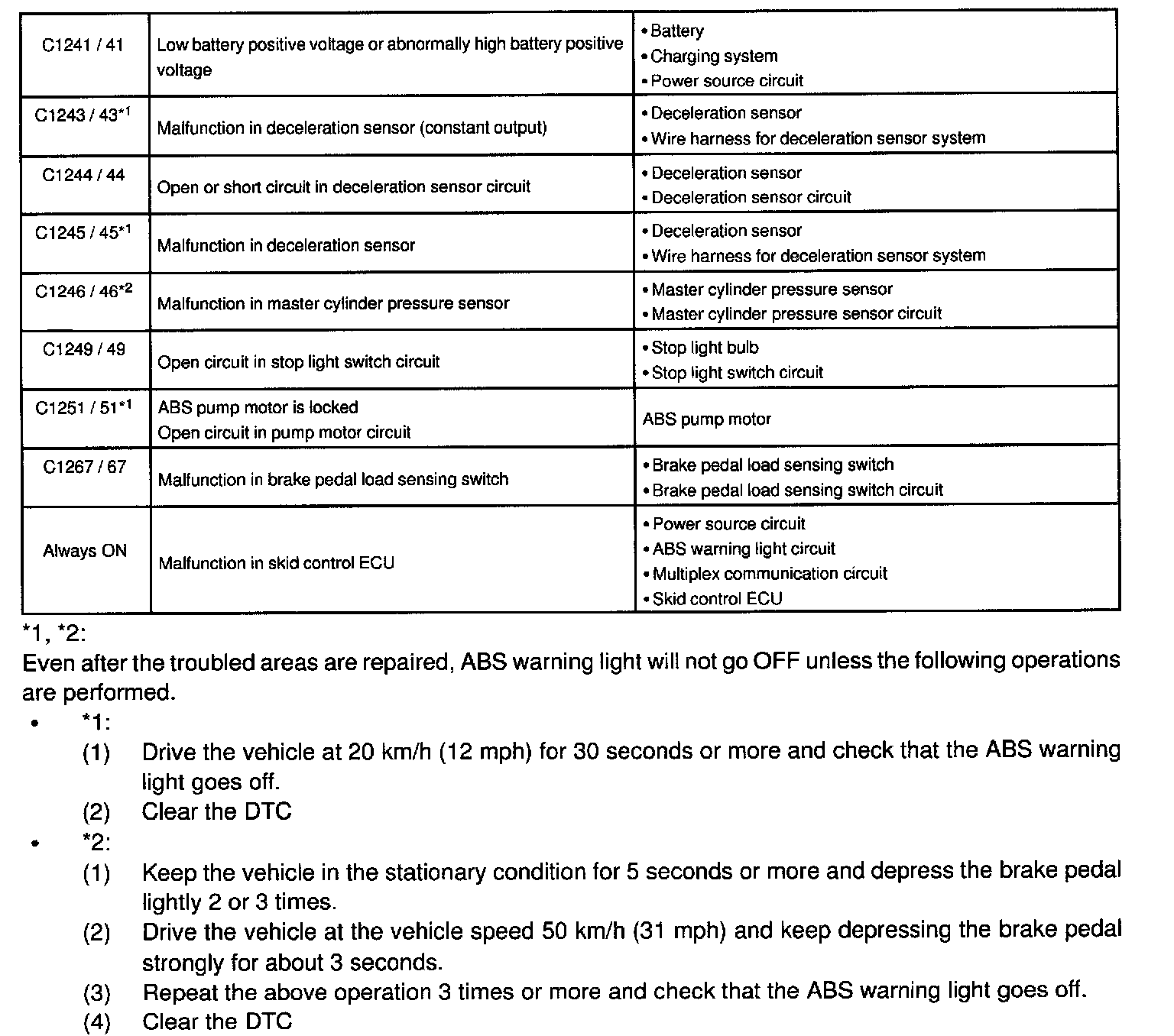

C1241/41 - Always ON:

DTC chart of ABS:



HINT: There is a case that LEXUS hand-held tester cannot be used when ABS warning light is always on.

C1201/51 - Always ON:

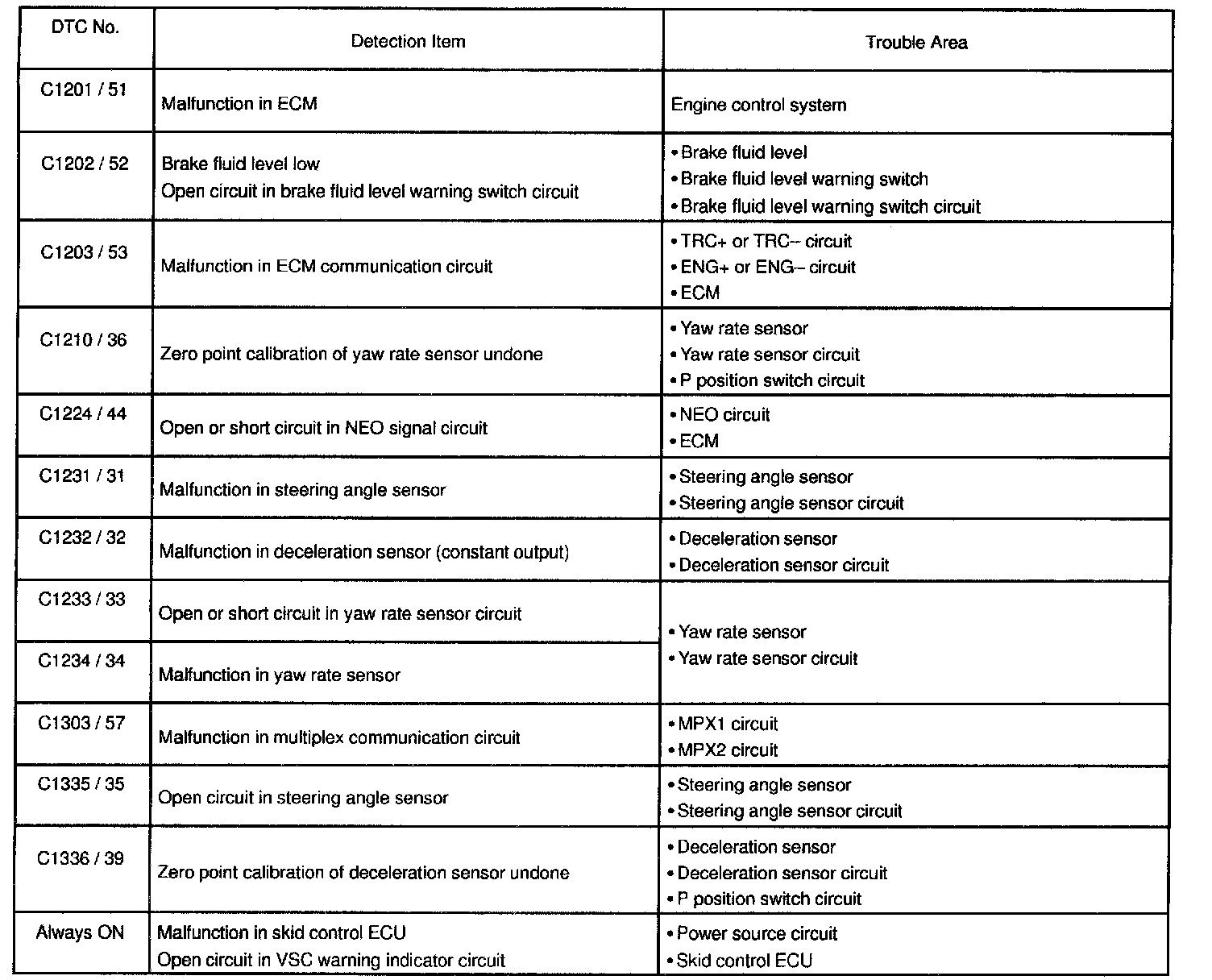

DTC chart of VSC:

HINT: In some cases LEXUS hand-held tester cannot be used when VSC warning light is always on.

C1560 - C1561:

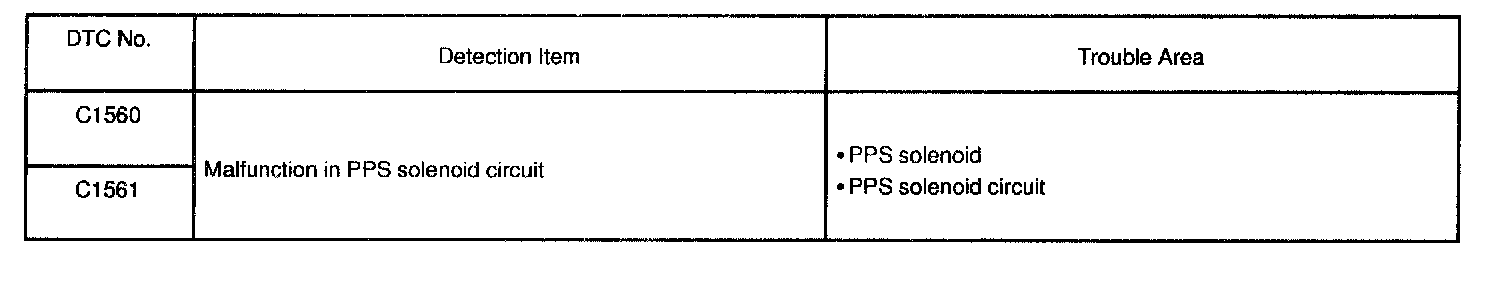

DTC chart of PPS:
