DTC C1752 CONTINUOUS ELECTRIC CURRENT TO HEIGHT CONTROL EXHAUST VALVE

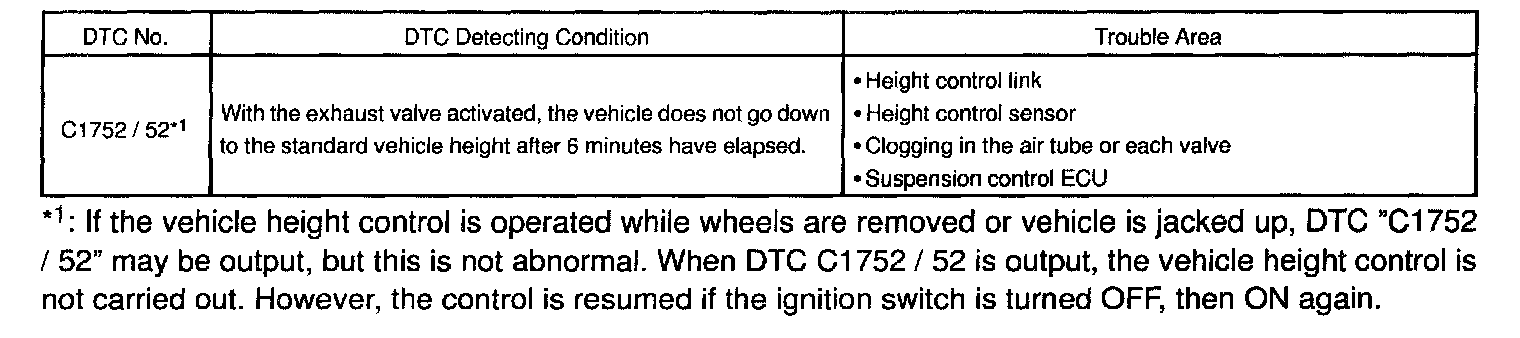

DTC Detecting Condition:
CIRCUIT DESCRIPTION
Step 1 - 2:

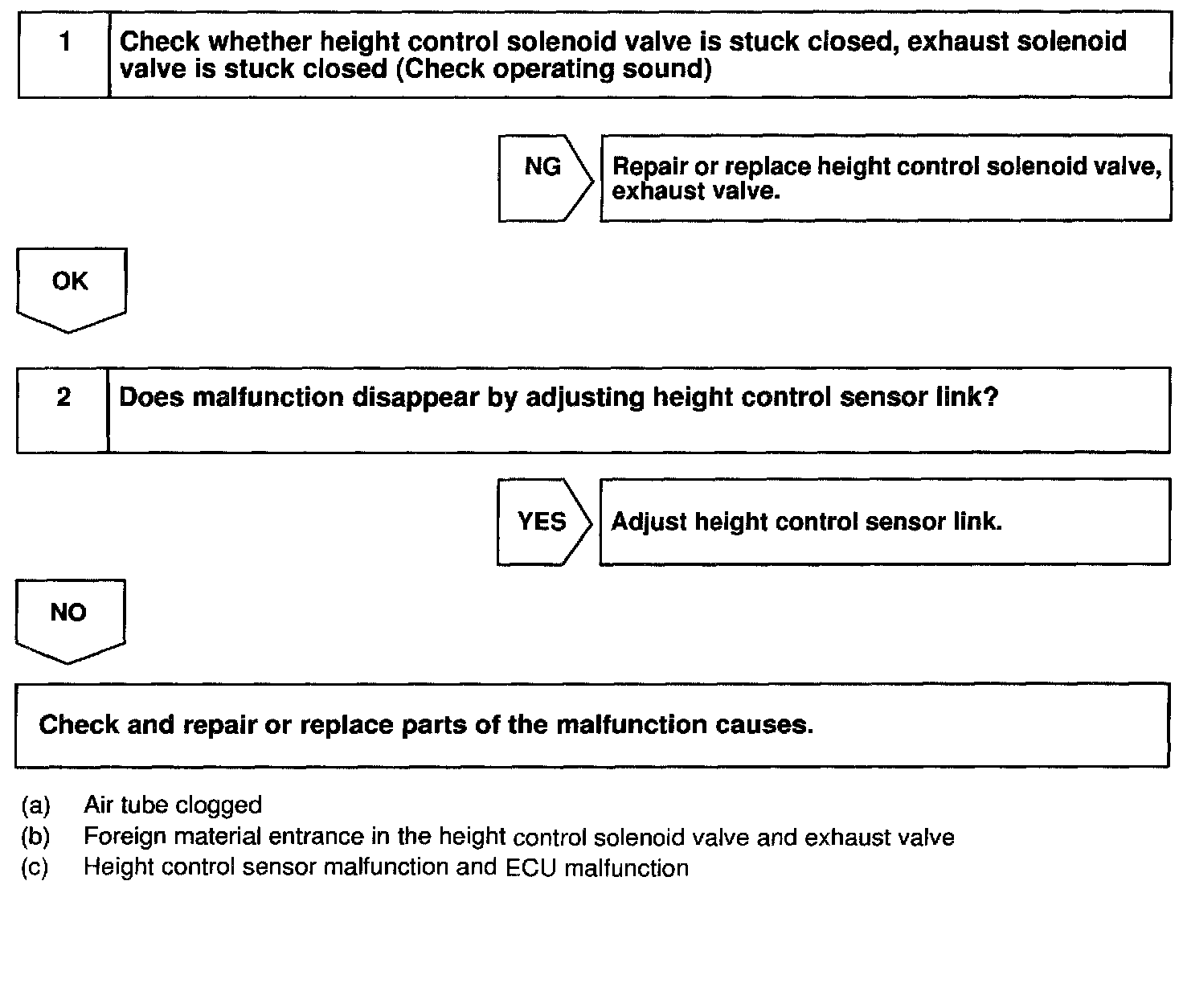

INSPECTION PROCEDURE
