DTC C1560, C1561 PPS SOLENOID CIRCUIT

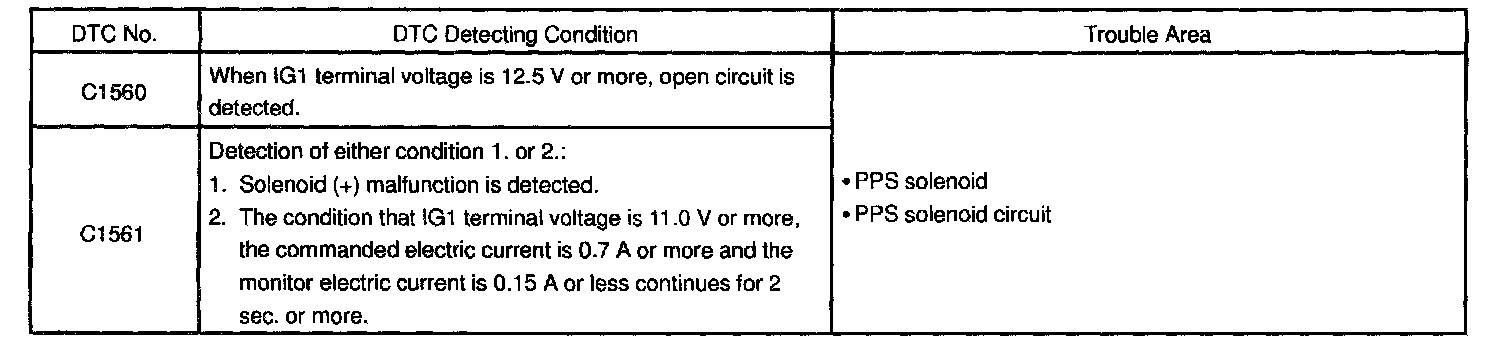

DTC Detecting Condition:
CIRCUIT DESCRIPTION

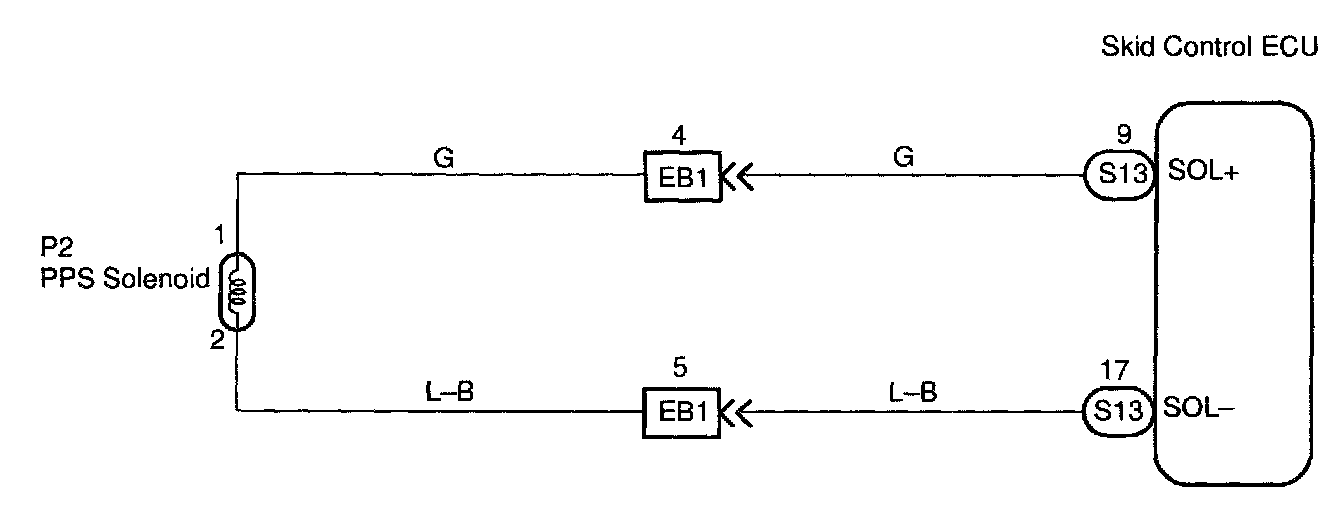

Wiring Diagram:
Step 1 - 2:
Step 2 (Continued) - 3:

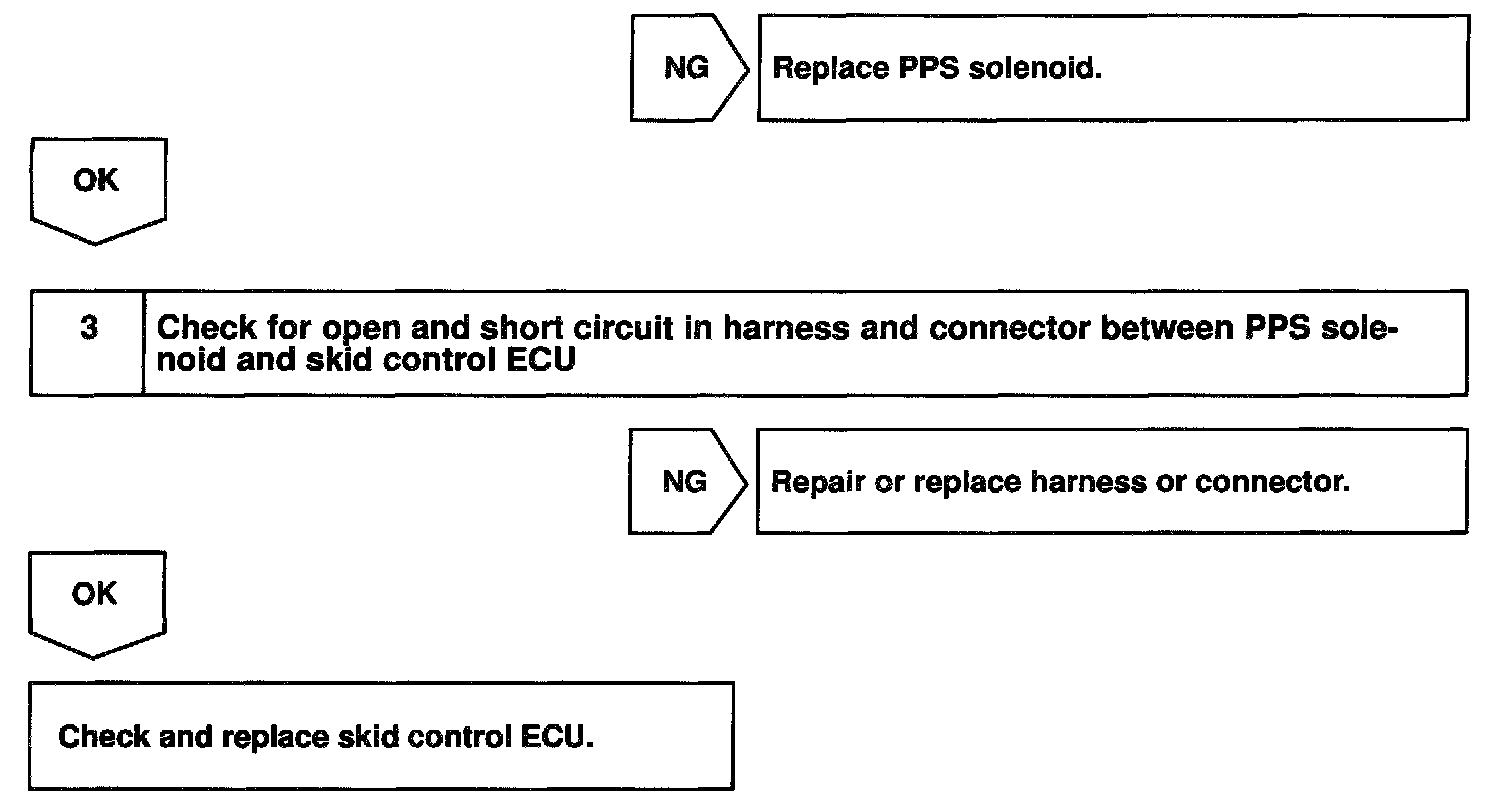

INSPECTION PROCEDURE
